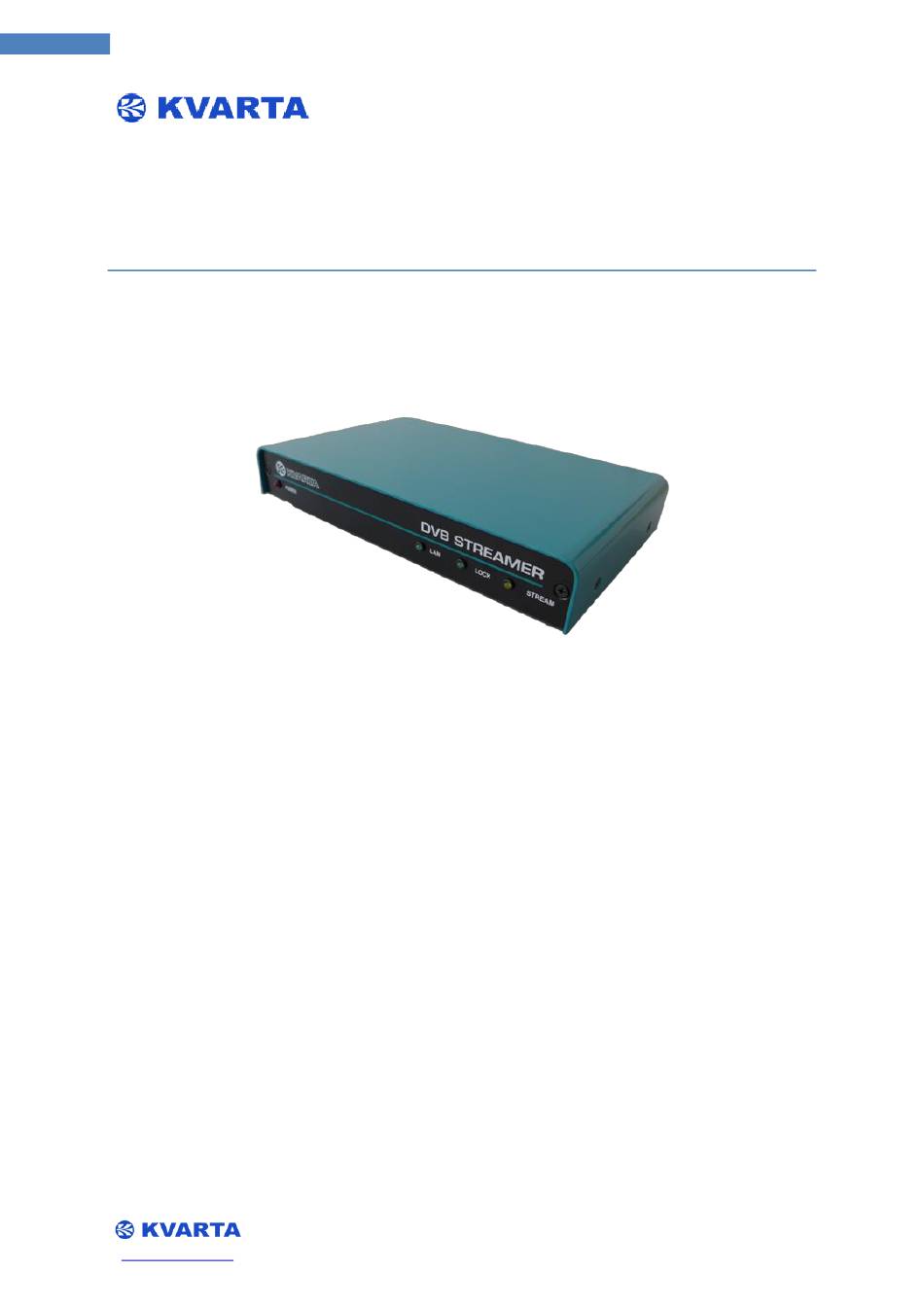

- Page 1 DVB Streamer User Manual 1.00 DVB STREAMER KVARTA USER’S MANUAL www.kvarta.net 1 / 18...
-
Page 2: Table Of Contents
DVB Streamer User Manual 1.00 Contents INTRODUCTION ..........................3 1.1. About KVARTA ......................... 3 1.2. About DVB ..........................3 DVB STREAMER Kvarta ........................3 2.1. INCLUDED ACCESSORIES ......................3 2.2. GENERAL SPECIFICATIONS OF THE DVB STREAMER ..............4 Getting connected ........................... 5 3.1. -
Page 3: Introduction
1. INTRODUCTION 1.1. About KVARTA For more than 10 years, Kvarta has been developing products for Broadcasters and CATV providers. Our devices are used by major radio and television broadcasters and regulatory agencies. Broadcasting is our passion. We know what you want and we have designed many devices, which are perfectly adapted to your needs. -
Page 4: General Specifications Of The Dvb Streamer
100baseT – Web Server and UDP/TCP (SNMP/ASCII) Frequency range and Modulation Frequency Range 46 MHz - 1004 MHz; 950 MHz- 2150 MHz (depending on the model) Digital TV DVB-T, DVB-C, DVB-S, DVB-S2 (depending on the model) DVB-H, Demodulator (depending on the model) DVB-T... -
Page 5: Getting Connected
STREAM - Indicates streaming of MPEG TS data IN A – RF input A IN B – RF input B 3.3. Back panel Micro SD – 2GB containing configuration LAN – Ethernet connection 12V – Adapter input www.kvarta.net 5 / 18... -
Page 6: Configuration And Operation
Connect the RF Antenna or CATV source to IN A or IN B Select the appropriate Input (A or B) used for the type of modulation Analog/DVB-C/DVB-T Configure other relative settings like Bandwidth, Symbol Rate, Constellation and Spectrum. -
Page 7: Streaming Configuration
Select the type of MPEG TS : MPTS - Multi Program Transport Stream, SPTS – Single Program Transport Stream For SPTS select up to 5 services on the same frequency to be streamed For MPTS just select the destination address for the IP stream www.kvarta.net 7 / 18... -
Page 8: Rf Measurements
Lock, Level and BER and other measurements depending on the modulation type. Click the DVB-> Status -> MPEG This page displays various MPEG tables PAT , PMT, SDT, TDT, CAT, TOT (Click F5 to reload tables) www.kvarta.net 8 / 18... -
Page 9: Stream Log
DVB Streamer User Manual 1.00 4.4. Stream log Click DVB-Monitor -> Log -> Stream log Displays log with 20 of the latest stream changes. www.kvarta.net 9 / 18... -
Page 10: Advanced Configuration
DVB Streamer User Manual 1.00 4.5. Advanced Configuration 4.5.1. SNMP configuration NOTE: Please, contact us for more support at support@kvarta.net 4.5.2. Programs configuration Click Installation -> Programs to configure programs. programs.m3u can be loaded in VLC for video monitoring ... -
Page 11: Rtsp Configuration
The device URL can be used if the device is behind router programs.m3u can be loaded in VLC for video monitoring NOTE: You should be in Streaming mode and RTSP should be the protocol. Only one RTSP client is supported. www.kvarta.net 11 / 18... -
Page 12: Remuxer Configuration
You can reconfigure the output SID, PIDs, Service Name, Provider Name, etc. NOTE: It is only working in Streaming mode and SPTS streams. 4.5.5. VLAN Click Advanced -> VLAN to configure VLAN settings for the output streams or the management www.kvarta.net 12 / 18... -
Page 13: Glossary
DVB Streamer User Manual 1.00 5. GLOSSARY DVB – Digital Video Broadcasting DVB-C – Digital Video Broadcasting - Cable DVB-T – Digital Video Broadcasting – Terrestrial SNMP – Simple Network Management Protocol SMTP – Simple Mail Transfer Protocol PID – Packet Identification PAT –... -
Page 14: Appendix A - Dvb Streamer Ascii Command Set
-- *********************************************** -- Device Model: DVB STREAMER 0.06A (28/05/2013) -- Auto-generated file! -- Definitions apply to DVB STREAMER -- Supported ASCII COMMANDS -- for more information support@kvarta.net -- Kvarta Soft Ltd (www.kvarta.net) -- *********************************************** -- The 'GENERAL' group; read-write IP Address... - Page 15 SNMP.TRAP_PORT read-write SNMP Traps destinatio port SNMP.TRAP_PASSWORD read-write SNMP trap password SNMP.TRAP_SERVER1 read-write SNMP trap server(1) IP SNMP.TRAP_SERVER2 read-write SNMP trap server(2) IP SNMP.TRAP_SERVER3 read-write SNMP trap server(3) IP SNMP.TRAP_SERVER4 read-write SNMP trap server(4) IP www.kvarta.net 15 / 18...
- Page 16 DVB Streamer User Manual 1.00 -- The 'TUNER' group; TUNER_MODE read-write Tuner mode Analog/DVB-C/DVB-T FREQUENCY read-write Tune frequency ATV_INPUT read-write Input 0=A or 1-B ATV_COLOR read-write 0-PAL_NTSC or 1-SECAM ATV_SPECTRUM read-write 0-Normal; 1-Invert ATV_TRANS read-write 0-Terrestrial; 1-Cable ATV_SYS read-write 0-B;1-GH;2-M;3-N;4-I;5-DK;6- L;7-LP;...
- Page 17 Program SID number P(???).FREQ read-write Program frequency P(???).NAME read-write Program service name P(???).DVB_MODE read-write Program DVB mode DVB-C/DVB-T P(???).SAVE_ALL COMMAND Command to save programs to programs.txt file P(???).REMOVE COMMAND Command to remove the program from the list P(???).DELETE COMMAND Command to remove the program -- The 'S' table;...
- Page 18 DVB Streamer User Manual 1.00 -- The 'COMMANDS' group; RESET COMMAND Software reset (except IP) and reboot of the device RESTART COMMAND Software reboot of the device www.kvarta.net 18 / 18...
