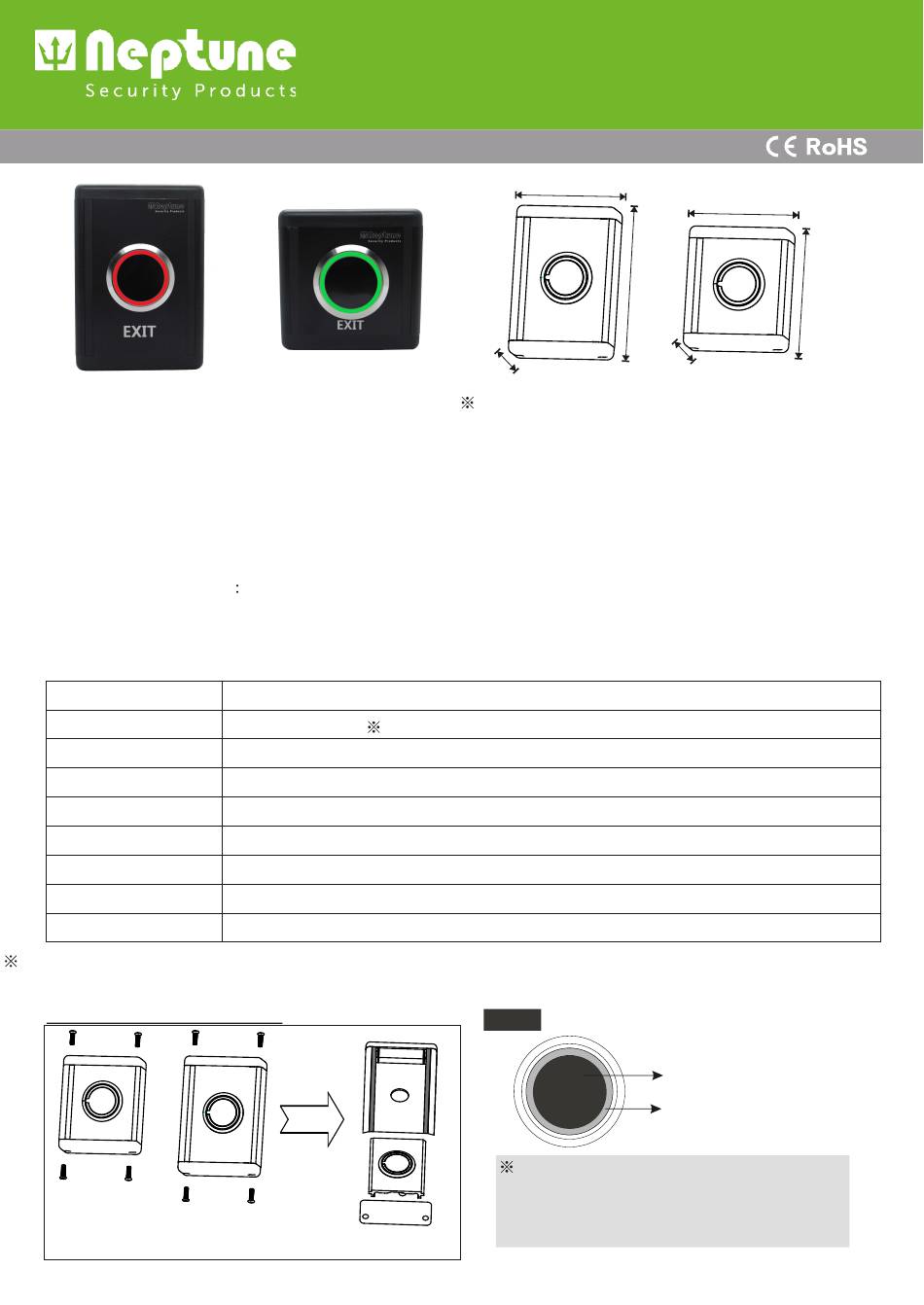

Infrared Touchless Sensor Operation & Installation Manual
Please read the manual before use and keep for future reference
NEITB58W
Features:
•
Activated by Infrared Touchless Sensor. It is suitable for access control systems that are widely used
in public areas such as hospitals or restaurants. It can also be used as an auto-control detection.
•
Built-in micro-controller with power on self testing function.
•
Specially designed to prevent any interference from other infra-red.
•
Double color status LED, adjustable proximity range.
•
Door opening time is able to set trigger state (0.5~30sec) or toggle mode output
•
Operating temperature -10°c ~ +70°c.
•
Sealing protection Infrared Button - IP65
Specifications:
Power input
Range
Output Loading
Output State
Life Time
Indicator
Case
Current Consumption
Weight
Note1: Different materials have a different reflective rate. The value of the chart is based on the test of 18% neutral gray card.
Panel and Connections:
NEITB58W/NEITB98W
INSTALLATION & OPERATING MANUAL
NEITB98W
DC12V~DC24V (±15%)
4~15CM(±25%)
Note1
1A@DC30V(Max.)
Trigger state (0.5~30sec) or toggle mode output
Infrared sensor:100,000 hours / Relay mechanical lifespan:1,000,000 times
Standby: RED ; Action: GREEN (Colour of indicator LED is adjustable)
Stainless Steel / PC / Aluminum Alloy
Maximum current 45mA@DC24V
NEITB58W: 270g/ NEITB98W : 202g (G.W.)
NEITB58W/NEITB98W
80
28
Please make sure no object (Including protection stickers)
is blocking the infrared sensing panel before use.
Front
In order to ensure the operation of the
infrared switch, please make sure no objects or
any obstacles are within 30cm & 60°on the left
and right of the front panel of the switch to avoid
any interference.
-1-
80
115
28
Unit : mm
Infrared
Sending & receiving area
Indicator (Default)
Standby : Red
Action : Green
VER 1 06.20
