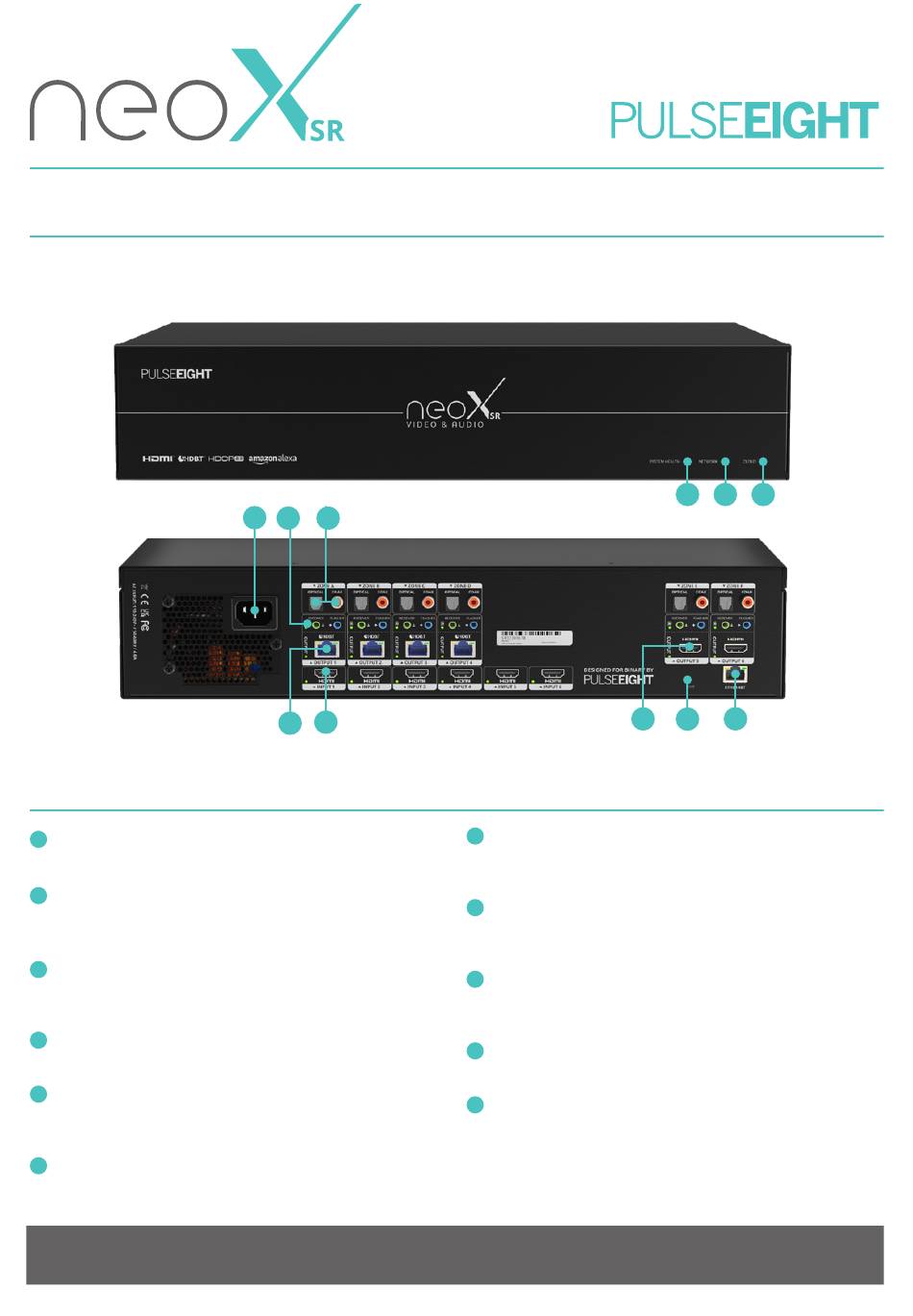

TECHNICAL OVERVIEW
A
System Health LED Indicates whether matrix is turned on
and healthy (green) or if there is an issue present (red).
Network LED Indicates the matrix is connected to the
B
internet through its network link (green) or if there is an
issue (red).
C
Cloud LED Indicates the matrix is able to connect to the
Pulse-Eight Remote Monitoring Portal (green) or if there is
an issue (red).
D
Power Connector Power connector with OFF/ON switch.
Use supplied power cord to connect the power.
E
IR Receiver and Flasher Ports Connect as required. The
IR Flasher port is to be used to connect input devices to
compatible Episode IR Flashers.
F
Audio Outputs Optical and Digital Coax options for Audio
Breakouts.
Please download the full Installation Guide at: www.pulse-eight.com/manuals
QUICK SETUP GUIDE
D
E
F
H
G
DESIGNED FOR BINARY BY
I
G
HDBaseT Outputs Connect an appropriate Cat5e or higher
grade cable to each output. These cables should then be
connected to a neo Receiver at each device. (TV/Amplifier etc).
H
HDMI Inputs Connect an appropriate high speed HDMI cable
to each input. These cables should then be connected to the
Source device. (Bluray player etc).
I
HDMI Outputs Connect an appropriate high speed HDMI
cable to each output. These cables should then be directly
connected to each Sink device (TV/Amplifier etc).
J
Reset Factory reset - please only use when instructed by our
customer service team.
K
Ethernet Connect to network - required for connection
to Web Interface, Third Party Control and Cloud Remote
Monitoring Portal.
A
B
C
J
K
