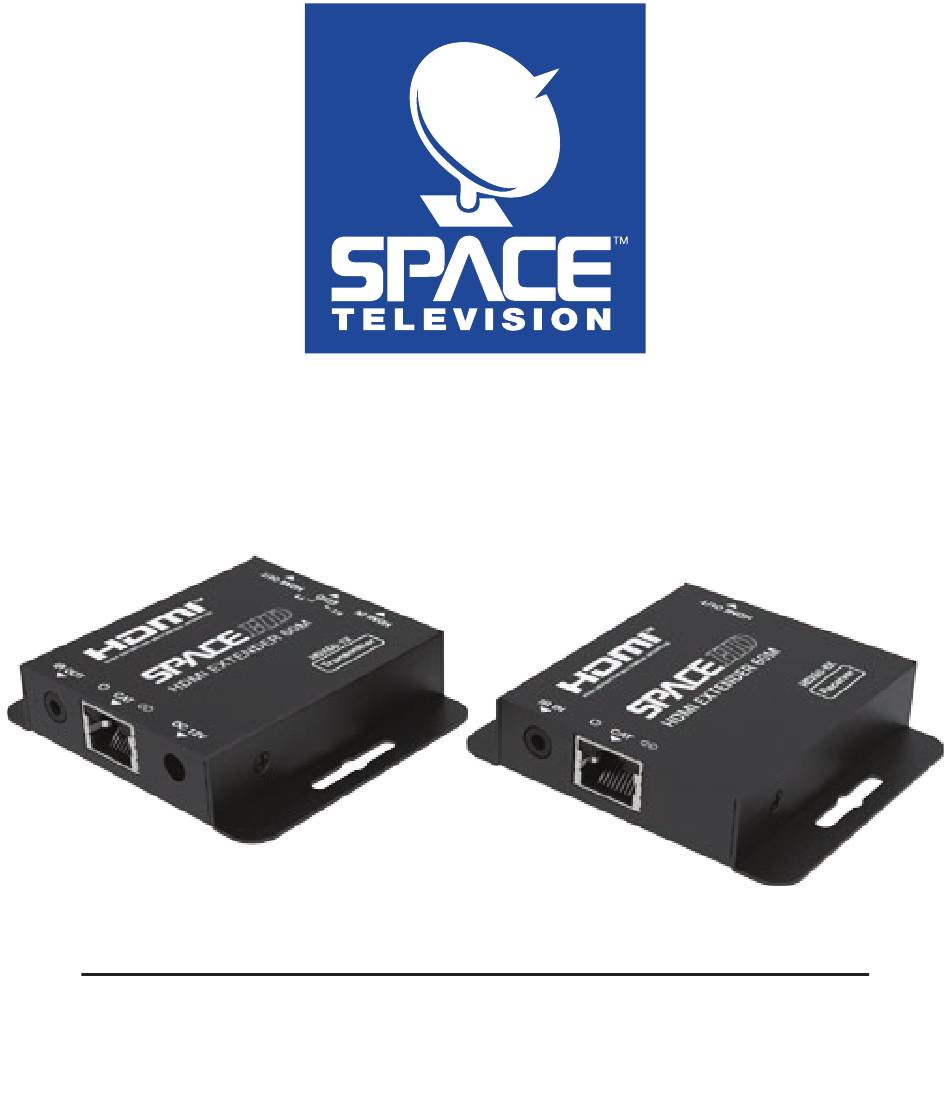

- Page 1 HDMI Extender (60m) with IR Control HDX60IR User manual VER:1.0 www.spacetv.co.za Helpline: 0861 40 41 42...
-
Page 2: Table Of Contents
Thank you for purchasing This producT: For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. surge proTecTion device recommended: This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shook, lighting strikes, etc. -
Page 3: Introduction
1. inTroducTion: This HDMI Extender can extend high definition video/audio signal and IR control signal up to 230ft/70m for 1080p resolution, and 131ft/40m for 4K30 resolution via a single CAT6 cable, which can achieve zero-delay, uncompressed long-distance transmission between the transmitter and receiver. -
Page 4: Package Contents
3. package conTenTs: • 1 × HDMI Transmitter • 1 × HDMI Receiver • 1 × IR Blaster Cable (1.5 meters) • 1 × IR Receiver Cable (1.5 meters) • 1 × 12V/1A DC Power Adapter • 1 × User Manual 4. - Page 5 connecTion Transmitter Input: 1 x HDMI Type A [19-pin female] Outputs: 1 x HDMI Type A [19-pin female] 1 x IR OUT [3.5mm Stereo Mini-jack] 1 x CAT OUT [RJ45, 8-pin female] Receiver Inputs: 1x IR IN [3.5mm Stereo Mini-jack] 1x CAT IN [RJ45, 8-pin female] Output: 1x HDMI Type A [19-pin female]...
-
Page 6: Operation Control And Functions
5. operaTion conTrols and funcTions 5.1 Transmitter panel no. name funcTion descripTion HDMI IN HDMI signal input port. Connect to HDMI source device such as DVD or Set-top box. EDID The switch is used for selecting EDID: DIP switch Switch to the right position, the extender will copy HDMI loop out display EDID information to signal source;... -
Page 7: Receiver Panel
Digital signal • Light on: HDMI signal with HDCP. indicator light • Light flashing: HDMI signal without HDCP. • Light off: No HDMI signal. DC 12V DC 12V power supply port. 5.2 receiver panel no. name funcTion descripTion HDMI OUT HDMI signal output port. -
Page 8: Ir Pin Definition
5.3 ir pin definiTion: IR Receiver and Blaster pin’s definition is as below: www.spacetv.co.za Helpline: 0861 40 41 42... -
Page 9: Application Example
6. applicaTion example: The terms HDMI and HDMI High-Definition Multimedia interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. www.spacetv.co.za Helpline: 0861 40 41 42...
