Summary of Contents for Digitus DA-20156

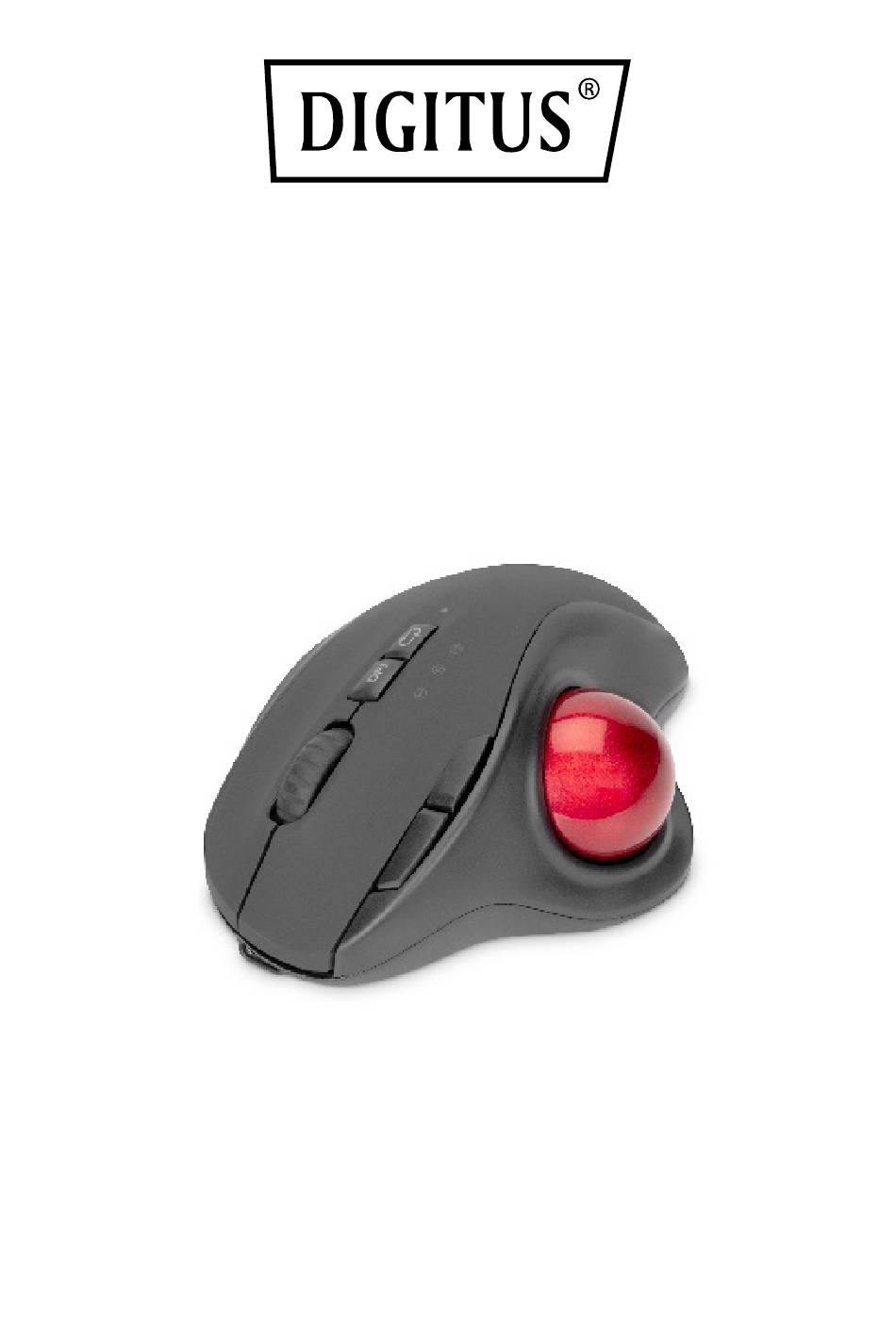

- Page 1 Ergonomic trackball mouse, wireless Quick Installation Guide DA-20156...

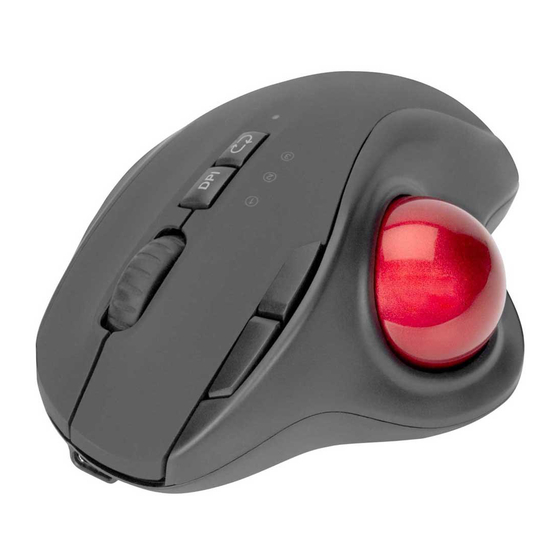

- Page 2 1. Introduction The ergonomic mouse/trackball solution from DIGITUS® is easy on your joints by reducing arm and wrist movement. It promotes a natural hand posture, because navigating is primarily done via the optical trackball. The mouse connects to your PC, Mac or Android device either via Bluetooth or the included USB receiver.
- Page 3 • Operating temperature: -15 °C to +45 °C • Operating humidity: <85% RH (non-condensing) • Dimensions: L 13.4 x W 9.7 x H 4.8 cm • Weight: 132 g 3. Key Functions Trackball 2.4G indication BT 1 Backward indication BT 2 Forward indication Left key...
-
Page 4: Mouse Function
Function Left key Standard left key Middle key Standard middle key Right key Standard right key Roller Standard roller Forward key Forward function in Windows Backward key Backward function in Windows DPI key DPI switch: 1000, 1600, 2400 Switch pairing key Switch 2.4G/ Bluetooth;... - Page 5 • Low voltage indicator: When the voltage is lower than 3.4V, the red low voltage indicator and the corresponding channel indicator flash at 0.5Hz frequency to prompt charging. Automatic shutdown below 3.2V-3.0V. 5. Appearance Specifications Mouse Length 133.8 mm Width 96.7 mm Height 48.0 mm...
- Page 6 6. Electrical Parameters Bluetooth Wireless 2.4G Interface 2.4G Image Sensor Nordic NRF51802 Acceleration Frame rate 4000fps Resolution 1000, 1600/default, 2400 Resport rate 125 Hz 250 Hz Key Function 7 Key LED Function Red LED Windows 8 and above, macOS 10.10 Operating System and above, Android 4.3 and above DC: 3.7 V...
- Page 7 8. Attention Because this product uses the optical induction way, needs to work in the diffuse reflection surface, asks the user to pay attention to the use environment. It is recommended that users use it on the diffuse surface, not on the specular surface (such as glass, etc.) to avoid inflexible mouse movement.
