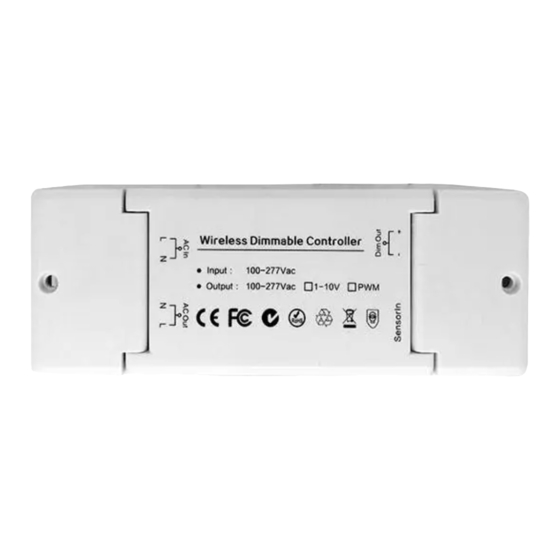

- Page 1 Wireless Dimmable Controller Input : 100-277Vac Output: 100-277Vac 1-10V SLC611 LED Lighting Driver Dimming 0~10V Quick Start Guide...
- Page 2 Safety Notice WARNING: Failure to follow these safety notices could result in fire, electric shock, other injuries, or damage to the LED Lighting Driver and other property. Read all the safety notices below before using the LED Lighting Driver. • Avoid high humidity or extreme temperatures. •...
- Page 3 Technical Specifications Compatibility Brands of PowerDrive • Mean Well, Moso, Sosen, Tridonic, Lifud Physical Specifications Wireless Connectivity • ZigBee 2.4GHz IEEE 802.15.4 • Operating frequency: 2.4GHz • Range outdoor/indoor: RF Characteristics 100m/30m • Internal PCB antenna • ZigBee HA1.2 ZigBee Profile •...
- Page 4 Welcome Wireless Dimmable Controller Input : 100-277Vac Output: 100-277Vac 1-10V The LED Lighting Driver with highbay LED light allows you to remotely control your lighting or even apply schedules for automatic switching from your mobile phone. This guide will provide you with an overview of the product and help you get through the initial setup to installation.
- Page 5 • Always use a properly rated voltage sensing device to confirm power is off. • Replace all devices, doors and covers before turning on power to this equipment. Failure to follow these instructions will result in death or serious injury. 0-10V/PWM+ SLC611 Controller AC N Out AC L Out 0-10V/PWM Driver LED+...
- Page 6 Configure Network 3.1 To get started, you will need: • A ZigBee Gateway. • A mobile phone with a mobile APP installed. 3.2 Adding to the gateway’s network ： Follow the steps below to join the power clamp to the gateway's network: 1.
- Page 7 3.4 Pair with other device The LED Lighting Driver can be paired with the ZigBee switch to enable local on/off control, make sure the switch is in the same network before pairing. (The LED Lighting Driver can only be paired with one switch). 1.
