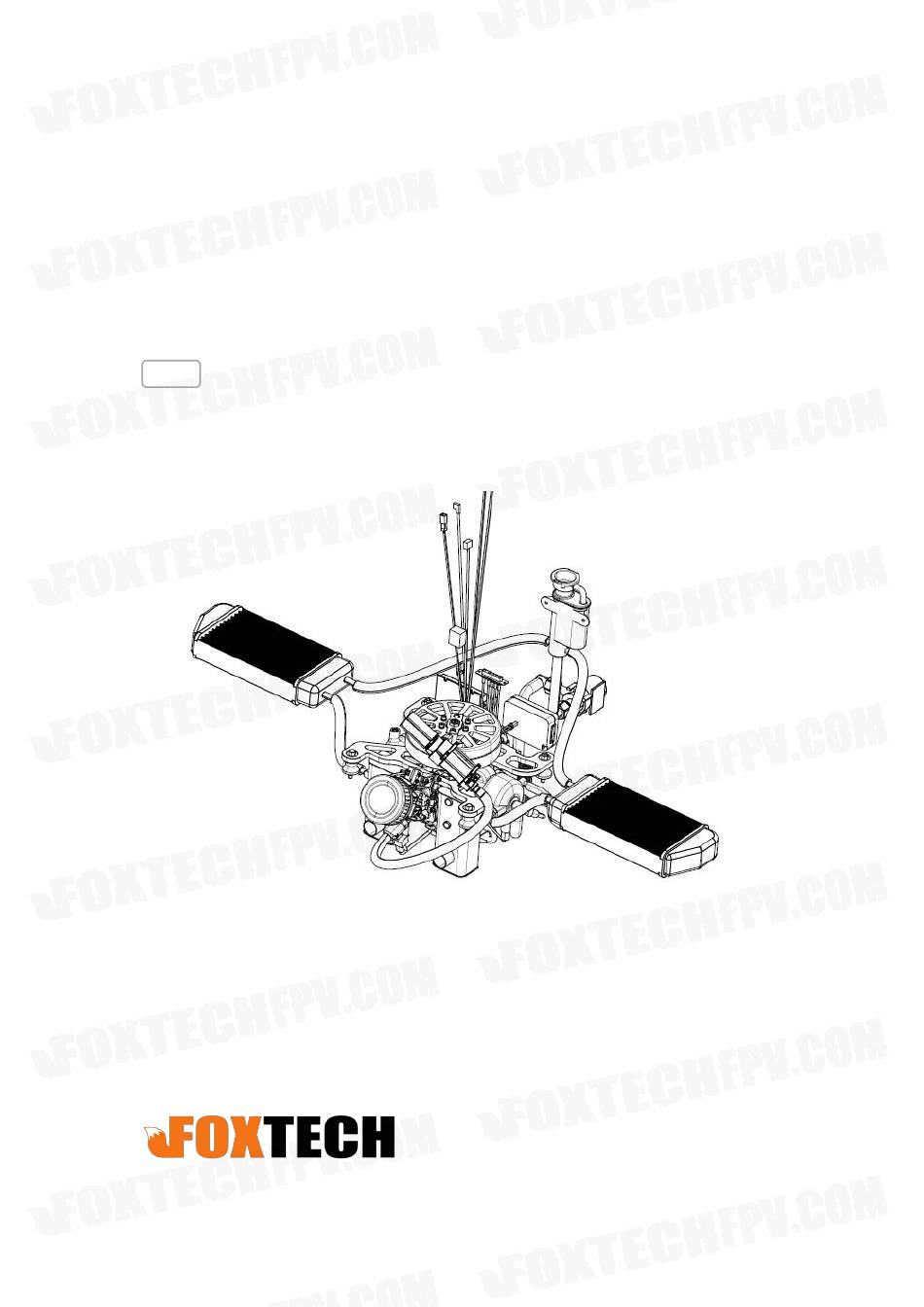

- Page 1 Halo-6000 EFI Generator for Hybrid Drone User Manual V1.0 2021.12...
-
Page 2: Table Of Contents
Contents Safety Code Description of Halo-6000 Preface Functions and Technical Difficulties Main Technical Parameters Before Operation Wiring Diagram Operation Usage and Operation Maintenance Maintenance Faults and Maintenance Method Others Transport and Storage Unpacking Instructions Appendix List of Accessories List of wearing parts and maintenance... -
Page 3: Safety Code
First of all, thank you for your trust in our brand! Welcome to use the aviation hybrid system (UAV) provided for you. Please read this manual before you use it. This manual provides guidance on the use, troubleshooting and maintenance of Halo-6000. This manual does not provide maintenance guide for electrical components. When it is determined that the electrical components have failed, please do not repair them. -
Page 4: Functions And Technical Difficulties
Halo-6000 EFI Generator User Manual Functions and Technical Features According to the requirements of multi-rotor UAV, the developed Halo-6000 is 58V (14S Li battery). The engine uses two cylinder and two stroke gasoline as fuel. It adopts 32-bit MCU of vehicle gauge level, precise injection ignition, adaptive plateau correction, intelligent self-learning, and has passed the environment and EMC tests. - Page 5 Caution: 1. We suggest you to use 25L gasoline to run in the generator for the first time of using the Halo-6000 at the ratio of 25:1(gasoline:engine oil). For everyday use, a ratio of 40:1(gasoline: engine oil)is suggested. 2.Please confirm that the technical parameters of UAV match the parameters of this hybrid system before use, so as to meet the operational performance of UAV, Prevent damage caused by improper configuration.
-
Page 6: Before Operation
The blue and red end connector is connected with the upper "-" pole of the oil pump Oil Pump Water Pump Cylinder block Temperature Sensor Connecting aircraft CAN cable Red: fault indicator Connect the fan Fig. 1 ©2021 FOXTECH All Rights Reserved... - Page 7 ： 3PIN 2.54mmDuPont row The connector shall be selected ignition coil plastic shell（receptacle） according to the battery harness of system yellow line：receiver signal line configured by the customer or controller welded by the customer Fig.2 ©2021 FOXTECH All Rights Reserved...
-
Page 8: Operation
Halo-6000 EFI Generator User Manual Operation Usage and Operation 1. Halo-6000 is configured as shown in Fig. 3： Fig. 3 2. The installation dimension of Halo-6000 is given in Fig. 4： Fig. 4 ©2021 FOXTECH All Rights Reserved... - Page 9 3.2.5 Precautions for filling water Water injection is required before starting the water pump, After the water pump is started, fill the water between the high and low scales of the Water jacket. ©2021 FOXTECH All Rights Reserved...
- Page 10 Use 95# or higher grade gasoline, Jaso FC grade or iso-l-egc grade or higher 2T engine oil (Mott 710 is recommended), and use a proportioning pot to prepare according to the engine fuel ratio of 1:40 (engine oil: gasoline). It is strictly prohibited to use vehicle 4-stroke engine oil. ©2021 FOXTECH All Rights Reserved...
- Page 11 Check whether the exhaust funnel is loose. In case of shaking, be sure to tighten the fixing bolts of the exhaust funnel. 6. Precautions for starting engine 6.1 Before starting the engine for the first time, the air in the oil inlet pipe needs to be ©2021 FOXTECH All Rights Reserved...
- Page 12 ① Open the software installation package with an installation package attached. ② Find setup.exe, double click to open, enter the installation interface as shown in the figure and wait until the loading is completed. ④ The installation is complete. ©2021 FOXTECH All Rights Reserved...
- Page 13 If the connection fails, check whether the serial port cable is correct, restart the software and system, and try again. First supply power to the system and connect the serial port harness. When using the software, do not click other buttons before opening the serial port. ©2021 FOXTECH All Rights Reserved...
- Page 14 When the range extender is in operation, turn the three position switch of the remote control from the "bid winning" position to the "subscript" position to stop, and the system will stop automatically. 8.2 To start the Halo-6000, please first confirm whether the three position switch of the remote control is normal；...
- Page 15 9. Stop Running 9.1 After continuous flight, Halo-6000 needs to be cooled. Therefore, after landing, maintain idle speed for 30s. After the engine is shut down, do not turn off the power supply and keep the water pump running for 3min.
-
Page 16: Maintenance
Maintenance(Carry out regular maintenance and parts replacement according to Appendix 3) 2.1 After the Halo-6000 runs for 50h, check the carbon deposit on the spark plug. If the carbon deposit is serious, remove the carbon deposit or replace the spark plug. -
Page 17: Faults And Maintenance Method
User Manual 3. Maintenance Before Long-Term Shutdown it is necessary to carry out comprehensive maintenance for the Halo-6000 before storage, if the system is out of service and will not be used for a long time. This can avoid some parts failure caused by long-term shutdown and maintain the system performance. - Page 18 The fault list of the red fault indicator is shown in Table 4 below： Failure Fault light mode 1. throttle position —— 2. liquid level sensor —— 3. water temperature sensor —— 1. Sensor Failure 4. motor temperature —— 5. atmospheric pressure sensor —— ©2021 FOXTECH All Rights Reserved...
- Page 19 (100ms) → slow flash (500ms) → constant light. Flash: system initialization process; Slow flash: after initialization, wait for receiving the start command; Light on: after receiving the start command, you can start the engine through the starter. ©2021 FOXTECH All Rights Reserved...
-
Page 20: Others
After unpacking, check the packing list and the items (including certificate, operation and maintenance manual, products, etc.) according to the packing list. Carefully check whether it is consistent with the real object. ©2021 FOXTECH All Rights Reserved... -
Page 21: Appendix
Halo-6000 EFI Generator User Manual Appendix 1：List of Accessories Article Quantity Remark Operation and maintenance manual of Halo-6000 Standard Configuration Product maintenance of Halo-6000 EFI Standard Configuration Halo-6000 EFI Generator Standard Configuration Oil pump Standard Configuration Water pump Standard Configuration... -
Page 22: List Of Wearing Parts And Maintenance
Of Steering Gear Position Check/ Replace Sensor Replace Oil Inlet Check/ Pipe Replace Damping Sleeve Replace Assembly Cylinder Replace Block Exhaust Replace Shim Cylinder Replace Block Shim Piston Replace Assembly Piston Ring Replace Piston Pin Replace ©2021 FOXTECH All Rights Reserved... - Page 23 Upper Box Replace Lower Box Replace Deep Groove Ball Replace Bearing This content is subject to change. Download the latest version from https://www.foxtechfpv.com/foxtech-halo-6000-efi-generator-for-hybrid-drone.html For everyday updates, please follow Foxtech Facebook page: https://www.facebook.com/foxtechhobby YouTube Channel: https://www.youtube.com/user/foxtechonline/featured?view_as=subscribe ©2021 FOXTECH All Rights Reserved...
