ICC ICRESDP28K Quick Start Manual

C O N T E N T A N D
ICRESDP28K & ICRESDP28W
ICC s 28-inch residential wiring enclosure with doors is
designed for single-family homes. It serves as the central
distribution point for voice, data, video, audio, and security
services. The enclosure is lightweight and made with ABS
plastic to prevent cracking and allow better Wi-Fi reception. The
base is designed to be mounted professionally between 16" wall
studs, inside the wall, or wall mounted if the walls have already
been installed and painted. The enclosure is designed to
accommodate ICC s and most other manufacturer s modules.
The ventilated screw down doors dissipate heat and are
reversible to swing open left or right.
1
2
3
4
28" Plastic Net Media center
I N F O R M A T I O N
Package Content

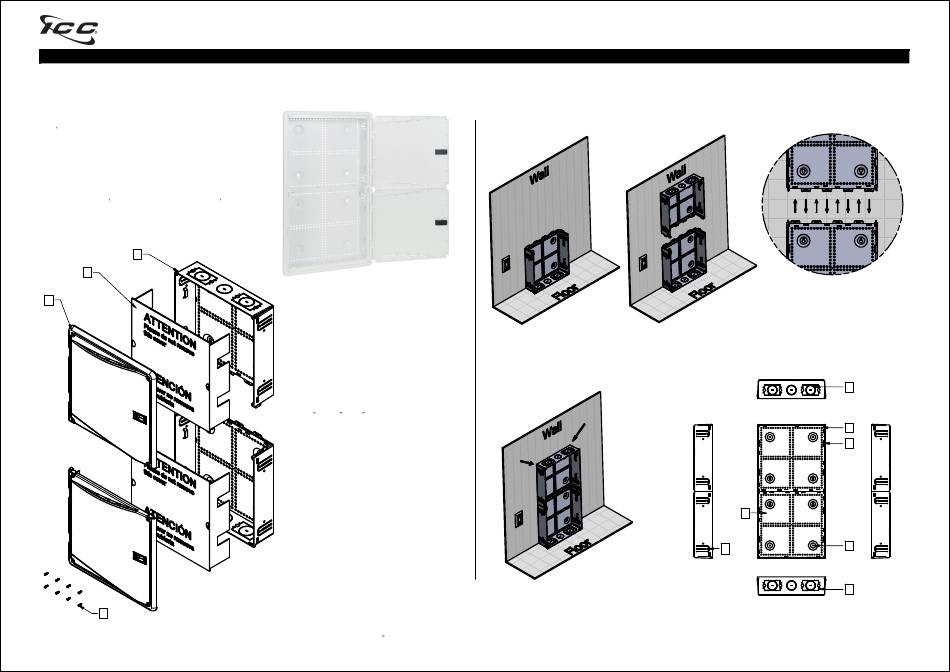

1. Enclosure 2ea. (29.33" x 15.55" x 5.6 ")
2. Protective Cardboard Cover 2ea.
(13.2 x 10.1 x 3.5 )
3. Doors 2ea. (15.00" x 15.00" x 1.00")
4. #6-32 x 5/8" Machine Screw 8 pieces
5. Connectivity Modules Included:
1. ICRESDP28K:
A. 6 Port 2GHz Video Splitter 1x6,
1 Piece (ICRESAV66L) with plastic bracket
B. 8 Port Telephone Module W/RJ31x,
1 Piece (ICRESVPA3C)
C. 8 Port CAT 6 Module,
1 Piece (ICRESDPB3C )
2. ICRESDP28W:
A. 8 Port Telephone Module W/RJ31x,
1 Piece (ICRESVPA3C)
B. 8 Port CAT 6 Module,
1 Piece (ICRESDPB3C)
E-mail us: cs@icc.com
Copyright 2020, ICC. ICC and ICC logo are registered trade name and trademark. All rights reserved.
A S S E M B L Y
Step 2: Align the locking tabs
Step 1: Place one side of base
against a wall and floor.
Step 3: Press on the back corners of the top piece
at the same time until all 12 tabs lock in place.
Go online: www.icc.com
I N S T R U C T I O N S
of the first and second base.
Features
1) Light-weight ABS plastic construction
2) 3 top & 3 bottom knockouts
3) 2 bottom & 2 top electrical knockouts
4) 4 Cable management tabs
5) Module mounting hole pattern
6) Extendable mounting tabs
7) 8 surface screw mount holes
2
5
4
1
7
6
3
