- Page 1 DA 1200 - DA 1900 Inlet cover/Light trap/Fly screen Mounting Guide English: For other language variants of this document we refer to: Español: Para otras variantes del idioma de este documento, visite: Français: Pour les versions dans d'autres langues de ce document veuillez consulter: http://docs.skov.com/1023...
- Page 3 Date of change appears from the front and the back page. Note • All rights reserved SKOV A/S. No part of this manual may be reproduced in any manner what soever without the express written permission from SKOV A/S. • SKOV A/S has made all reasonable efforts to ensure the accuracy of the information contained in this manual.
-
Page 4: Table Of Contents
Inlet cover ......................... 7 Light trap ........................8 Fly screen ......................... 9 MAINTENANCE ....................11 Icing up/clogging of the fly screen ................11 DIMENSIONED SKETCH ................12 Inlet cover ........................12 Light trap .........................13 Fly screen ........................14 DA 1200 - DA 1900... -
Page 5: Product Description

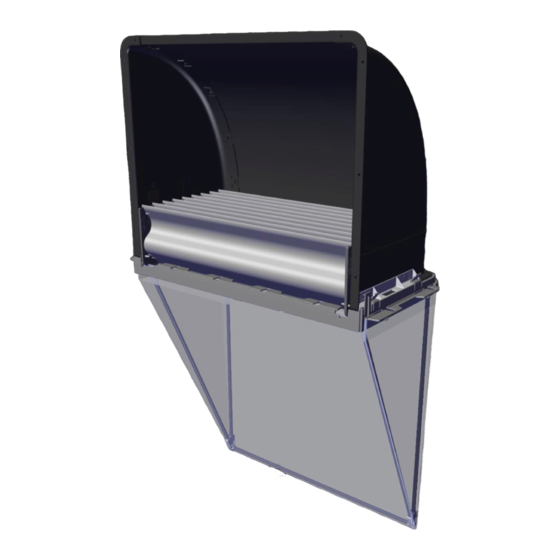

1 Product description Inlet cover The DA 1200 / DA 1900 inlet cover is a covering abating the impact on the house environment caused by wind and solar irradiation. The inlet cover is made of injection-molded PP (polypropylene) which is dirt-repellent and easy to clean. -
Page 6: Fly Screen
Mounting Guide Fly screen You can use the DA 1200 / DA 1900 fly screen in connection with the air intake in livestock houses. The fly screen prevents the flies from entering the building. You easily mount the fly screen on the DA 1200/DA 1900 inlet cover and the DA 1200/DA 1900 inlet cover including a light trap. -
Page 7: Mounting Guide
(Self-cutting screws can be used for some types of walls). First you have to fasten a screw where the edge of the center piece and the side overlap. Use a spirit level to make sure that the inlet cover is level. DA 1200 - DA 1900... -
Page 8: Light Trap
Mount the nine light trap louvers into the two spacers. Lift the assembled louvers up into the inlet cover until you sense a vague snap. The light trap lock can now be mounted on both sides of the inlet cover. DA 1200 - DA 1900... -
Page 9: Fly Screen
Fly screen Before assembly start, measure the outer dimensions of the inlet cover. The outer dimensions of the DA 1200 inlet cover are 669 mm. The outer dimensions of the DA 1900 inlet cover are 953 mm. 1. Fly screen frame 2. - Page 10 9. Dismantle the light trap latches. 10. Mount the fly screen latches. 11. Press the fly screen onto the inlet cover. 12. Press the fly screen inwards, onto the inlet cover DA 1200 - DA 1900...
-
Page 11: Maintenance
Icing up/clogging of the fly screen In case of sudden icing up/clogging of the fly screen, you can open the fly screen and leave it attached using the inner catch of the fly screen. DA 1200 - DA 1900... -
Page 12: Dimensioned Sketch
Mounting Guide 4 Dimensioned sketch Inlet cover Figure 3: Dimensioned sketch of DA 1200 Figure 4: Dimensioned sketch of DA 1900 DA 1200 - DA 1900... -
Page 13: Light Trap
Mounting Guide 4.2 Light trap Figure 5: Dimensioned sketch of DA 1200 light trap louver Figure 6: Dimensioned sketch of DA 1900 light trap louver Figure 7: Dimensioned sketch of lock for light trap DA 1200 - DA 1900... -
Page 14: Fly Screen
Mounting Guide 4.3 Fly screen Figure 8: Dimensioned sketch DA 1200 fly screen Figure 9: Dimensioned sketch DA 1900 fly screen DA 1200 - DA 1900... - Page 16 SKOV A/S • Hedelund 4 • Glyngøre • DK-7870 Roslev Tel. +45 72 17 55 55 • Fax +45 72 17 59 59 • www.skov.com • E-mail: skov@skov.dk...
