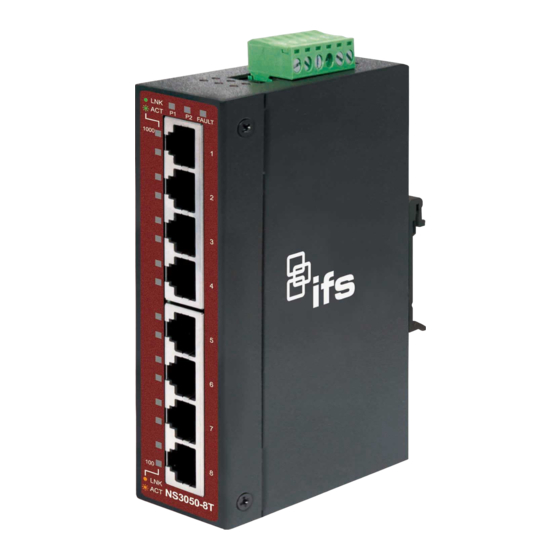

8-Port 10/100/1000Mbps Industrial Gigabit
Ethernet Switch - NS3050-8P - User Manual
Package Contents
Thank you for purchasing IFS 8-Port 10/100/1000T industrial
Gigabit Ethernet Switch, NS3050-8T. In the following section,
the term "Industrial Gigabit Ethernet Switch" means the
NS3050-8T.
Open the box of the Industrial Gigabit Ethernet Switch and
carefully unpack it. The box should contain the following items:
Industrial Gigabit Ethernet
Switch x 1
DIN Rail Kit x 1
If any of these are missing or damaged, please contact your
dealer immediately; if possible, retain the carton including the
original packing material, and use them again to repack the
product in case there is a need to return it to us for repair.
2. Hardware Introduction
2.1 Physical Dimensions
NS3050-8T dimensions (W x D x H): 135 x 87 x 32mm
See Figure 2.1 on page 6.
2.2 Switch Front Panel
The front panel of the Industrial Gigabit Ethernet Switch
consists of 5 or 8 auto-sensing 10/100/1000Mbps Ethernet
RJ45 ports. The LED Indicators are also located on the RJ45
ports of the Gigabit Ethernet Switch.
© 2016 United Technologies Corporation.
Interlogix is part of UTC Climate, Controls & Security, a unit of United Technologies Corporation. All rights reserved.
User's Manual x 1
Wall-mount Kit x 1
Figures 2-2 show the front panels of Industrial Gigabit Ethernet
Switches.
Figure 2-2: NS3050-8T Front Panel
2.3 LED Indicators
LED
Color
Function
P1
Green
Lit: indicates power 1 has power.
P2
Green
Lit: indicates power 2 has power.
FAULT
Red
Lit: indicates either power 1 or power 2 has no
power.
(See Note: 1)
1000
Green
Lit: indicates the port is successfully
connecting to the network at 1000Mbps.
Off: indicates that the port is successfully
connecting to the network at 10Mbps or
100Mbps.
Blinking: indicates that the port is actively
sending or receiving data.
100
Orange
Lit: indicates the port is successfully
connecting to the network at 100Mbps or
10Mbps.
Off: indicates that the port is successfully
connecting to the network at
Blinking: indicates that the port is actively
sending or receiving data.
(Note: 1) Notice the fault light will go out if you tie power 1 to
power 2 if you are not using redundant power.
1000Mbps.
P/N 1073226 • REV A • ISS 13SEP16
Advertisement
Table of Contents
Related Manuals for Interlogix NS3050-8T
Summary of Contents for Interlogix NS3050-8T
- Page 1 RJ45 ports. The LED Indicators are also located on the RJ45 ports of the Gigabit Ethernet Switch. © 2016 United Technologies Corporation. P/N 1073226 • REV A • ISS 13SEP16 Interlogix is part of UTC Climate, Controls & Security, a unit of United Technologies Corporation. All rights reserved.
-
Page 2: Switch Upper Panel
2.4 Switch Upper Panel 2.6 Wiring the Fault Alarm Contact The upper panel of the Industrial Gigabit Ethernet Switch The fault alarm contacts are in the middle of the terminal block consists of one terminal block connector within two DC power connector as the picture shows below. -
Page 3: Din-Rail Mounting Installation
Back pressure for half duplex Flow Control IEEE 802.3x pause frame for full duplex Switch Fabric 16Gbps Throughput (packet per second) 11.9Mpps Jumbo Frame 10/100/1000BASE-T: Cat3, 4, 5, 5e, 6 UTP cable (100 m, Network Cables max.) EIA/TIA-568 100-ohm STP (100 m, max.) Standards Conformance Step 3: Check whether the DIN-rail is securely on the track. -
Page 4: Appendix A: Networking Connection
sure the cable is the right type. Turn off the power. After a few moments, turn on the power again. APPENDIX A: NETWORKING CONNECTION A.1 Switch’s RJ45 Pin Assignments 1000Mbps, 1000BASE-T Step 3: Use the screws to screw the wall-mount plate on the Industrial Gigabit Ethernet Switch. -
Page 5: Regulatory Information
Notice! This is a Class A product. In a domestic Contact information environment this product may cause radio interference in which case the user may be For contact information, see www.interlogix.com or required to take adequate measures. www.utcfssecurityproducts.eu. Canada This Class A digital apparatus complies with CAN ICES-003 (A)/NMB-3 (A). -
Page 6: Physical Dimensions
Physical Dimensions Figure 2.1: NS3050-8T dimensions (W x D x H): 135 x 87 x 32mm 6 / 6 P/N 1073226 • REV A • ISS 13SEP16...
