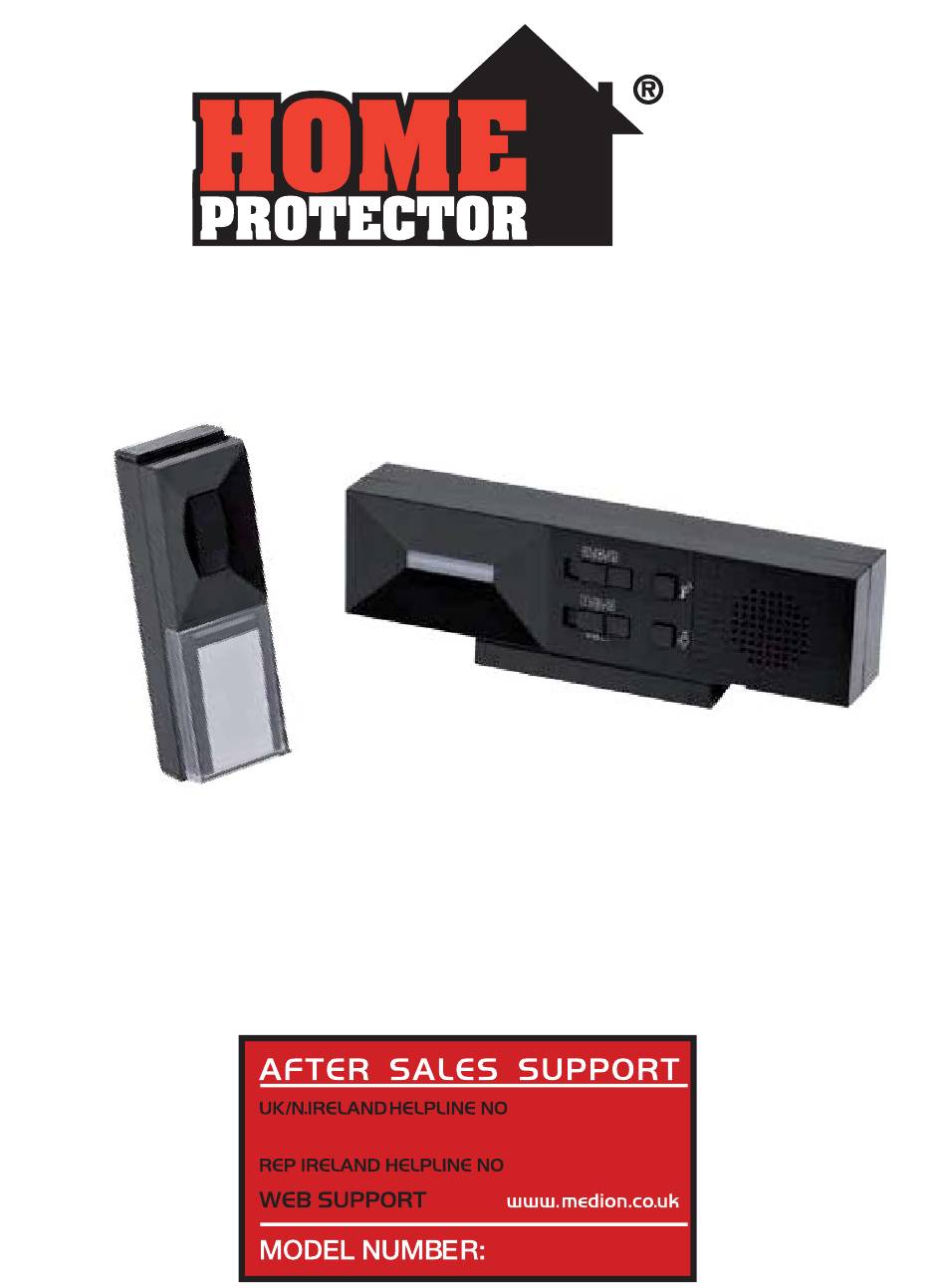

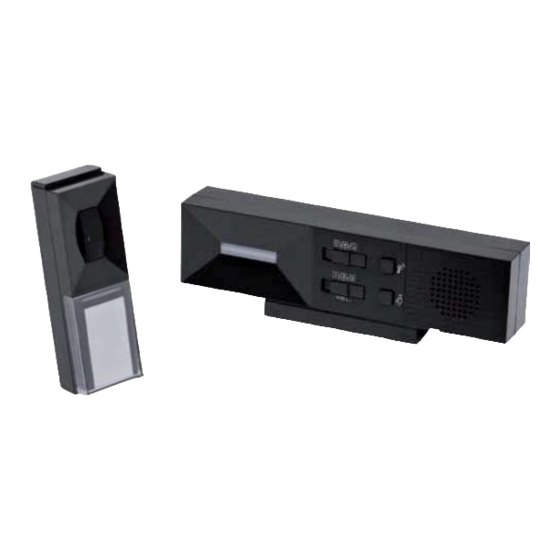

Wireless digital door chime

Advertisement

Wireless Digital Door
Chime
User's Guide
After Sales Support
Now you have purchased a Home Protector product you
can rest assured in the knowledge that as well as your
3 years part and labour warranty you have the added peace
of mind of dedicated helplines and web support.
0871 37 61 020
costs 7p/min from a BT landline,
mobile costs may be higher
1-800-992 508
free phone
MD 13735

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MD 13735 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Home Protector MD 13735

  • Page 1 Chime User's Guide After Sales Support Now you have purchased a Home Protector product you can rest assured in the knowledge that as well as your 3 years part and labour warranty you have the added peace of mind of dedicated helplines and web support.
  • Page 2 Overview of the device Receiver 1) LED display 2) Volume control 3) Signal selector 4) Channel button 5) Ringer tone button 6) Speaker 7) Stand 8) Support eyelets 9) Battery compartment 10) Battery compartment cover 11) Locking plate...
  • Page 3 Transmitter 1) Bell push 2) Battery compartment 3) Snap joints for the wall mount 4) Wall mount eyelets 5) wall mount 6) Battery compartment cover 7) Wall mount brackets 8) Reset button 9) LED 10) Name plate...
  • Page 4: Table Of Contents

    Contents Introduction General information Safety instructions Assembly and part list Overview of the device Getting started Free-standing set-up / wall mounting Cleaning Disposal Technical data Declaration of conformity...
  • Page 5: Introduction

    Congratulations! You have made an excellent choice with the purchase of this quality Home Protector® brand product. By doing so you now have the assurance and peace of mind which comes from purchasing a product that has been manufactured to the highest standards of performance and safety, supported by the high quality standards of Aldi.
  • Page 6 Symbols and key words used in these instructions DANGER! Warning: immediate mortal danger! WARNING! Warning: possible mortal danger and/or serious irreversible injuries! CAUTION! Please follow the guidelines to avoid injuries and/or property damage! ATTENTION! Please follow the guidelines to avoid property damage! PLEASE NOTE! Additional information on...
  • Page 7: Safety Instructions

    Safety instructions Dangers for children and people with reduced ability to operate devices • This device may be used by children over the age of 8 and by persons with reduced physical, sensory or mental abilities or by those without experience and/ or knowledge, if they are supervised or have been instructed in the safe use of the device and have understood the dangers that result from it.
  • Page 8 Battery information You will need batteries to operate the wireless doorbell. Batteries may contain combustible materials. If not handled properly, batteries may leak, heat up excessively, ignite or even explode, which could result in damage to the device and your health. Warning! Risk of explosion if batteries are replaced incorrectly.
  • Page 9  Remove used batteries from the device immediately.  Remove the batteries from the device if you do not intend to use it for a long period of time.  Replace all of the old batteries in a device with new batteries of the same type.
  • Page 10 Environmental requirements Transmitter • The transmitter has a splash-proof housing. • In optimum conditions, the transmitter has a range of 100 m. This can be reduced by structural conditions. • Sources of interference for the transmitter can include: mounting on metallic objects, reinforced concrete, high- frequency interference of any kind, devices operating on neighbouring frequencies, poorly screened computers.
  • Page 11: Assembly And Part List

    Assembly and part list When unpacking, ensure that the following parts have been supplied: • Transmitter • 1 x 3 V battery CR2032 for the transmitter • Receiver • 2 x AA batteries for the receiver • Assembly material (4 screws, 4 wall plugs, 5 name plates) •...
  • Page 12: Overview Of The Device

    Overview of the device Receiver 1) LED display 7) Stand 2) Volume control 8) Support eyelets 3) Signal selector 9) Battery compartment 4) Channel button 10) Battery compartment cover 5) Ring tone selection button 11) Locking plate 6) Speakers...
  • Page 13 Transmitter 1) Bell push 6) Battery compartment cover 2) Battery compartment 7) Wall mount brackets 3) Snap joints for the 8) Reset button wall mount 4) Wall mount eyelets 9) LED 5) Wall mount 10) Name plate...
  • Page 14: Getting Started

    Getting started Inserting batteries Transmitter The transmitter requires one 3 V battery, size CR2032.  Loosen the retaining tabs to remove the front cover.  Un crew the screw of the battery compartment cover. The transmitter is splash-proof and the cover fits securely onto the battery compartment.
  • Page 15 Using the device for the first time For the wireless door chime to work, the transmitter and the receiver must be synchronised. After the batteries have been inserted into the receiver, a ring tone will sound for a few seconds and the LED will begin to light up.
  • Page 16: Free-Standing Set- Up/Wall Mounting

    Free-standing set- up/wall mounting Mounting the receiver WARNING! Choose a suitable location for mounting the devices and make sure that you do not damage any concealed electrical or installation cables when drilling. You can use the supporting eyelets on the rear side of the device to mount the receiver on a wall.
  • Page 17 Mounting the device base  Hook one of the base’s hooks into the receiver (1).  Now press the base further onto the receiver, as shown, until the second hook clicks into place (2). Mounting the transmitter Find a suitable place by the door for mounting the doorbell. PLEASE NOTE! Before mounting the transmitter, test to see whether the transmitter signal can be picked up...
  • Page 18 Screw on the wall mount  Remove wall mount from the transmitter. This wall mount is attached to the wall as a back plate.  Mark the two drill holes on the wall.  Drill two holes suitable for 6 mm wall plugs. ...
  • Page 19 LED on the receiver will flash. The transmitter and the receiver are now synchronised. You can synchronise a model MD 13735 transmitter with several model MD 13735 receivers. To do so, follow the procedure described above.
  • Page 20: Cleaning

    Cleaning • Clean the receiver with a dry, soft cloth. • Use a soft, moist cloth with a little detergent to clean the transmitter. • Avoid the use of chemical solutions and cleaning products because these may damage the devices’ surface or markings.
  • Page 21: Technical Data

    Technical data Receiver batteries: DC 1.5 V, size AA/LR6/R6 Transmitter battery: DC 3 V, size CR2032 Transmitter splash protector: IPX4 Range: max. 100 m Frequency: 433 MHz ---------------------------------------- Copyright © 2012 All rights reserved. Medion® owns the copyright. Subject to technical and optical changes as well as printing errors.
  • Page 22: Declaration Of Conformity

    Declaration of conformity Medion AG hereby declares that this wireless doorbell conforms to the fundamental requirements and the other relevant regulations of the 1999/5/EC Directive. The certificate of conformity is posted on the Internet at: http://www.medion.com/conformity.
  • Page 23 Wireless Digital Door Chime WARRANTY CARD Congratulations! You have made an excellent choice with the purchase of this quality product. Our commitment to quality also includes our service. Should you, contrary to expectations, experience defects due to manufacturing faults during private use within 36 months of the date of purchase we shall be liable for warranty in accordance with statutory warranty regulations provided that: - The device was not put to use other than the intended...
  • Page 24 Wireless Digital Door Chime FAULT REPORT CARD Name Adress EMail Daytime Tel No Model Number Fail Description In order to deal with your enquiry as quickly and efficiently as possible, we ask you to contact our service hotline on the number detailed below. UK IRELAND HELPLINE NO 0871 37 61 020 REP.
