Foss FPD66 Installation Manual

Installation guide

Splicing in FPD66

Contents

1. In general ................................................................................................... 1

3. Splicing pigtails .......................................................................................... 2

4. Mounting to DIN rail/wall box/raceway .................................................... 3

In general

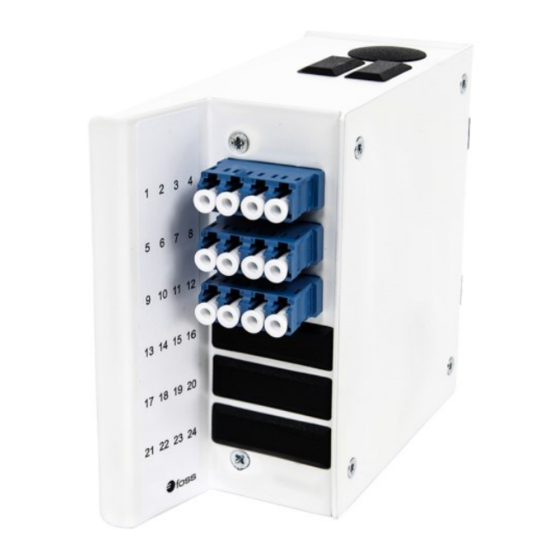

This guide shows how to splice cables with pigtails in the DIN closure FPD66. Parts of the installation may be made by FOSS prior to delivery.

This closure may be used for up to 12 splices against pigtails. However; by factory terminated cables or direct termination, the closure may

hold 24 fibres using the LC Quad adapter. If less fibres than a full adapter front is used, the rest of the holes should be blinded using blind

plugs. This guide shows installation with adapters pointing left (if a wall mount bracket is used), but the closure may be used pointing right. In

such a case, think mirrored when reading this manual.

You are advised to read through the full installation guide upon beginning the installation.

Colour codes for cables delivered by FOSS may be found under the QR code/link on the right.

2. Materials

Depending on the type of installation and/or cable, the following may come to use:

PS-3A-X/45

Splice protector, 45 mm, 100 pack

4415

Cleaning kit, grease

317-10600

Crimp sleeve 6/2

For additional equipment for the closure itself, see data sheet. Link to the right

IV5038-E Edition B

For loose tube cables

fossfibreoptics.com

Fargekoder

Colour codes

Data sheet

Page 1 of 3

Table of Contents

Do you have a question about the FPD66 and is the answer not in the manual?

Page 1 In general This guide shows how to splice cables with pigtails in the DIN closure FPD66. Parts of the installation may be made by FOSS prior to delivery. This closure may be used for up to 12 splices against pigtails. However; by factory terminated cables or direct termination, the closure may hold 24 fibres using the LC Quad adapter.
Page 2 3. Splicing pigtails 85 cm Prepare the cable according to one of the drawings in 3.1. If you need longer (fibres 7-12) fibre ends, add 33 cm for an extra loop. If direct termination, use 70 cm for all fibres 70 cm Tight buffered cables (fibres 1-6)
