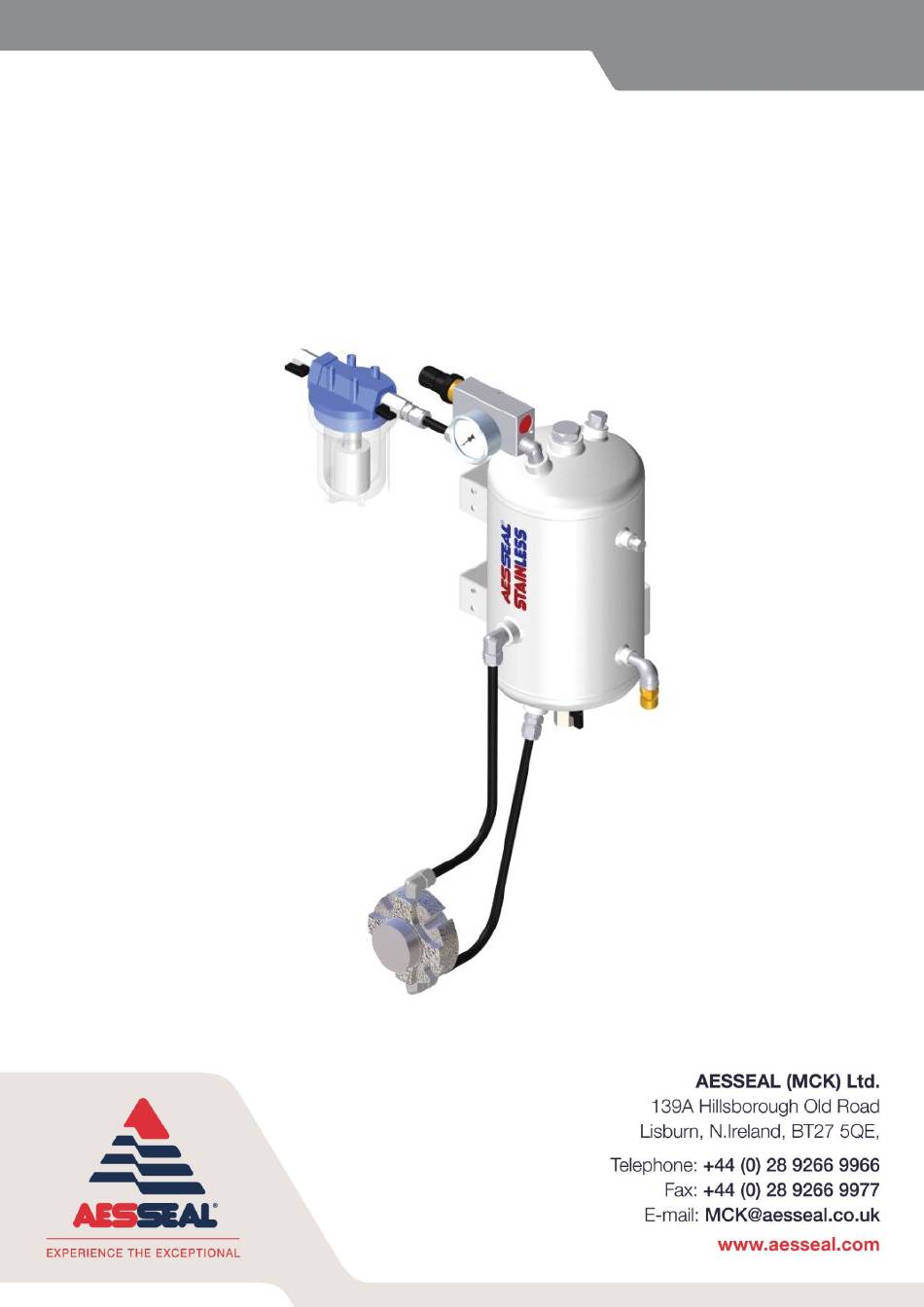

- Page 1 YDR-SWFF-TF-16 06/2019 SWFF-TF Range Installation, Operation & Maintenance Instructions...
- Page 2 If the barrier fluid becomes contaminated it is recommended that the barrier fluid is replaced taking necessary precautions. If the contamination is potentially corrosive or damaging to the system remove from service and contact AESSEAL for technical advice. Environment Once the barrier fluid and system have reached the end of its life, it should be disposed of in accordance with local regulations and with due regard to the environment.
- Page 3 YDR-SWFF-TF-16 06/2019 Fig. 1 SWFF-TF Vessel Guide 1m (40”) maximum Installing & Commissioning Components In-line Filter Feed Connection Auxiliary Fill Connection In-line Filter (UV stabilized materials) Pressure Vessel In-line Filter Output Connection Relief Valve Flow Fuse Inlet Connection Relief Valve Adjuster Cap...
- Page 4 YDR-SWFF-TF-16 06/2019 Connect the water line to the in-line filter feed connection (A) and from the in-line filter output connection (C) to the Flow Fuse inlet connection (D). Note that the maximum input pressure of the in-line filter (B) is 8 bar / 116 psi.
- Page 5 AESSEAL recommends this should form part of the written scheme of examination as per the PSSR 2000 regulations. * AESSEAL offers a full examination, integrity testing and refurbishment service (or, where necessary, a replacement system / vessel), to ensure continued optimum and safe system performance.
- Page 6 YDR-SWFF-TF-16 06/2019 System Details Minimum Piping / Hosing Specification ● 10 bar / 145 psi at 80°C / 176 °F (minimum temperature 0°C /(32°F) Vessel Design Code ● ASME VIII Div.1 Complies with Pressure Equipment Directive (2014/68/EU)
