Step 4: Duct Installation; Step 5: Grille Installation - AmazonBasics B089R7J1CQ Manual

Installation - New Construction
Step 3: Connect house and fan wires
FIG 3

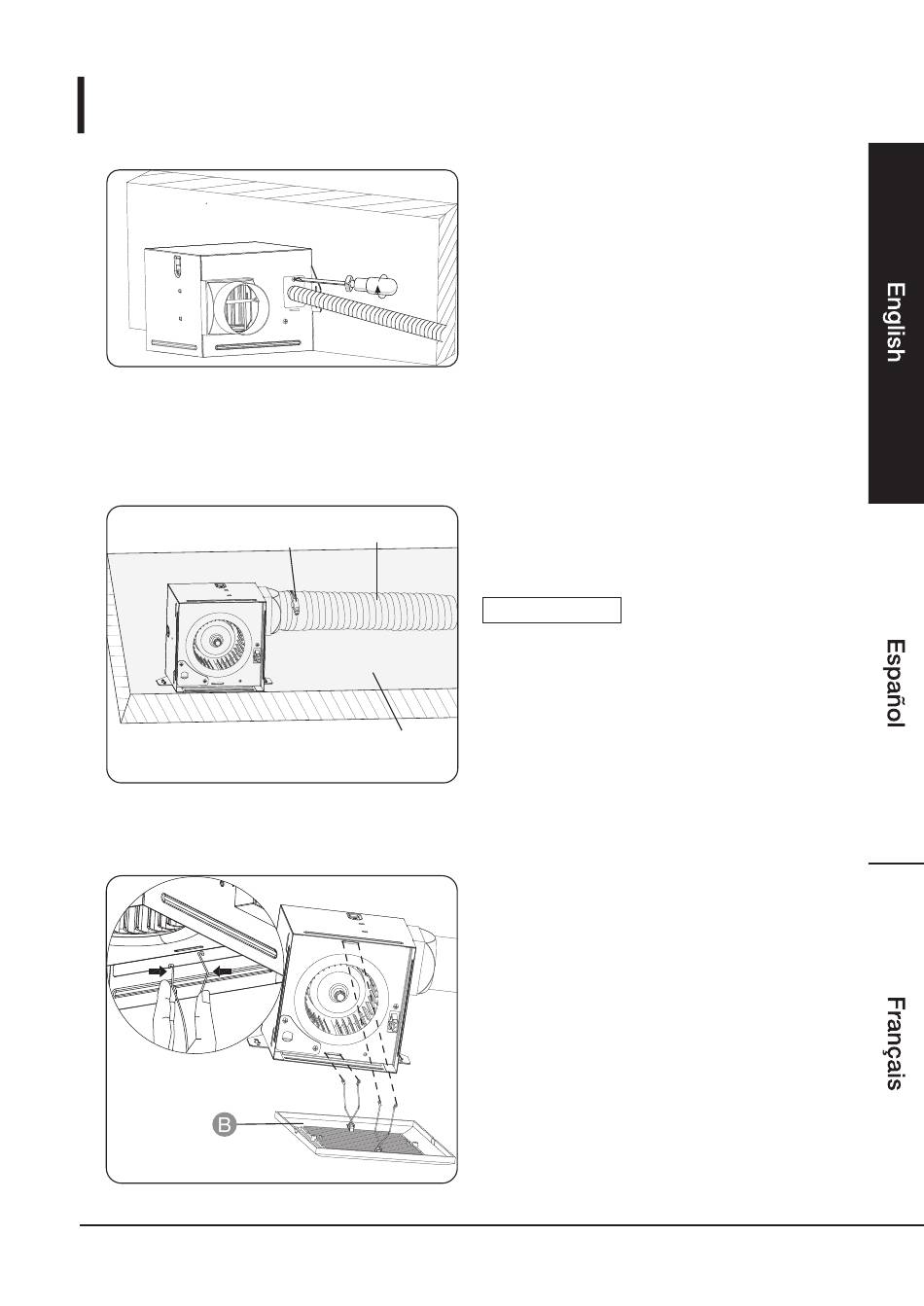

Step 4: Duct Installation

DUCT TAPE
OR CLAMP

Step 5: Grille Installation

• When all wires are connected properly,
carefully place all wiring with quick connect
wire connectors into junction box.
Install junction box cover back onto junction
box and install screw. Ensure bottom of
cover flange is inserted correctly. (FIG 3)
• Attach 3 in. circular flexible duct to fan
3 IN. DUCT
housing duct flange and secure with duct
tape or clamps (not included).
NOTICE
grille installation, complete all ceiling work.
Ceiling cutout should align with edge of
fan housing.
CEILING
• Pinch the spring clips and insert the
grille (B) into narrow rectangular slots
inside of the fan housing next to the
fan motor.
• Turn on power source. Check fan for
abnormal sounds or vibration.
Before moving on to the
9
