Summary of Contents for Livescribe echoll
-
Page 2: Overview & Specification

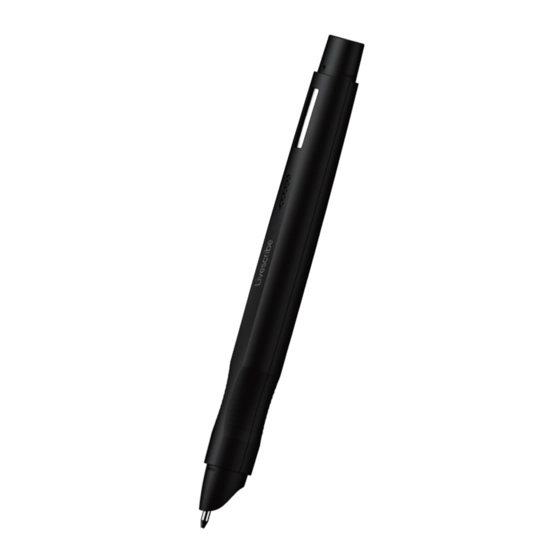

1. Overview & Specification Micro USB Port (Type C) Power OLED Button Display Speaker Camera D1 Ink Cartridge Model name echoII Memory capacity 4GB / 8GB (Depending on the model) Built-in battery Lithium polymer (Rechargeable) Charging time from empty 2 Hours Continues Writing time 8.5 Hours Recording audio only... - Page 3 3-2. Press the Power button to turn on the echo II. 3-3. Gently tap the Device Pairing box. Bluetooth icon will blink fast when it's in discovery mode. 3-4. Launch the Livescribe+ app And follow the instructions to complete the pairing process.
-
Page 4: Ink Cartridge
You can easily remove the ink cartridge and insert a new one. Please use echo or echo II ink refills only. Visit www.livescribe.com Other ink cartridges are not compatible for replacement options. 6. Controls You can use the Record & Playback functions with the power button. -
Page 5: Menu Navigation
6-2. Menu navigation You can navigate the menu by using the Menu button. Every state will be displayed on the OLED screen. Menu button is printed on the Smartpen Control Card (see 5-3). 6-3. Menu structure MAIN MENU PAPER REPLAY RECORD NEW SESSION PLAY SESSION DELETE SESSION... - Page 6 6-4. Smartpen Control Panel You can also navigate using the echoII Smartpen Control Card included in with the product. Front Back Status Display : Current Time 04:12 PM Display : Battery remaining It is displayed in increments of 10% Display : Remaining Storage 100% available Display : Current Date Mon Jan 3,2022...
- Page 7 Bluetooth Audio Function : Searching discoverable Bluetooth audio device Searching speaker Function : Connect to the paired audio device Connecting bluet Function : Disconnect with connected audio device Display Settings : Display Brightness Brightness : 10% Settings: Hand Orientation Your display is set Advanced Audio Settings : Menu sound on/off Menu Voice : on...
- Page 8 You may be prompted to update the smartpen’s software when using a new notebook.If your pen’s OLED screen displays : “Please update your smartpen’s software to use this dot paper” Please connect your pen with one of the Livescribe+ Apps. Please update you Livescribe+ Mobile (Android,IOS) The Smartpen will automatically download the notebook file you are trying to use.
- Page 9 Product failure caused by the Product being used in conjunction with product or parts not approved by Livescribe for use with this Product; Product failure caused as a result of reconfiguration changes to the Product (either hardware or software) or failure caused by third-party software or application or virus infection;...
- Page 10 For example, while the Livescribe smartpen is charging using the charging cable and a power adapter, don’t sit or sleep on the smartpen, charging cable, connector, or power adaptor, or place them under a blanket, pillow or your body. Take special care if you have a physical condition that affects your ability to detect heat against your body.
- Page 11 Blank...
- Page 12 뒷표지...
