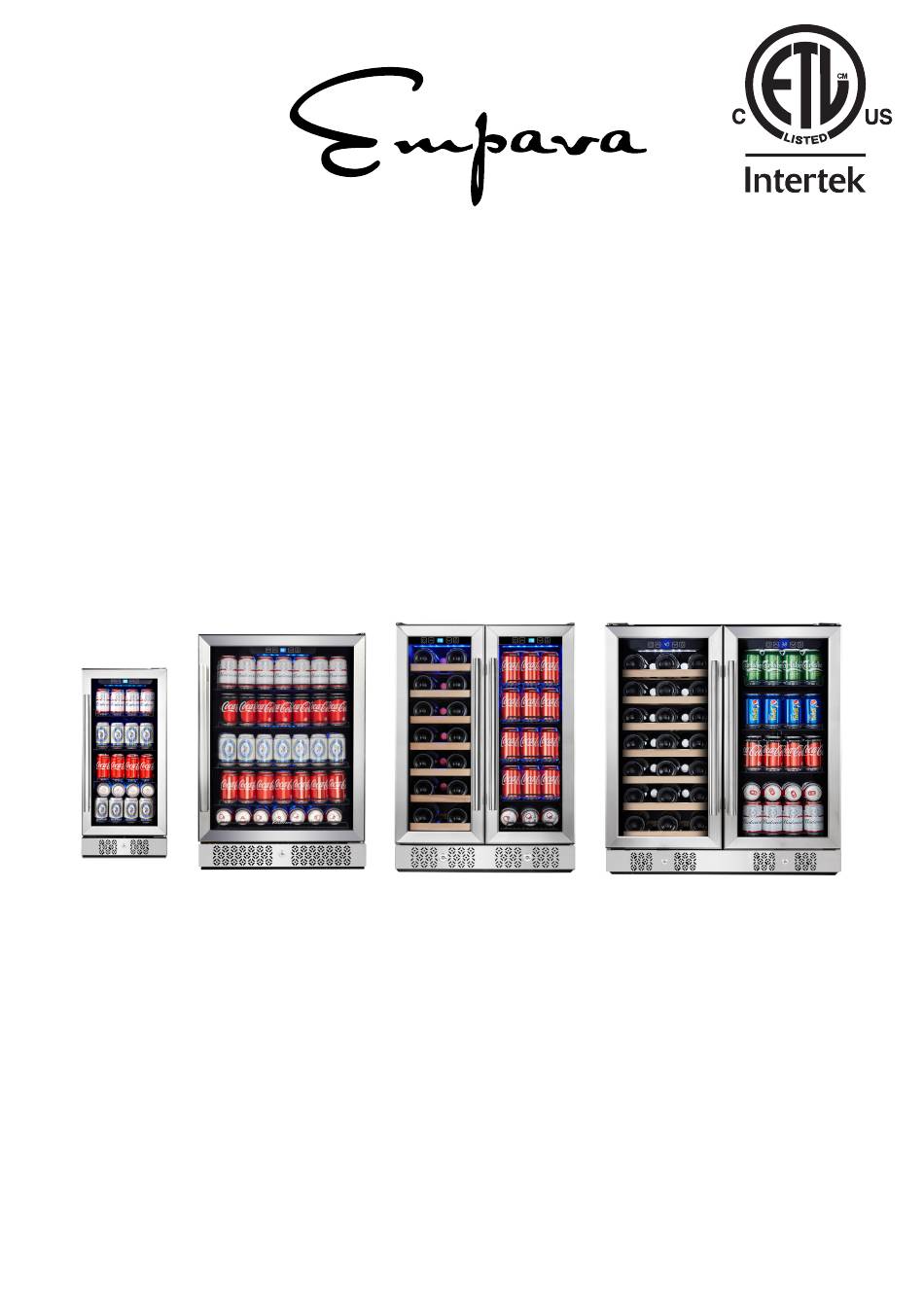

- Page 1 COMPRESSOR BEVERAGE COOLER User Manual EMPV-BR01S EMPV-BR02S EMPV-BR03D EMPV-BR04D Please read this user manual before using this product EMPAVA APPLIANCES INC 15253 DON JULIAN RD CITY OF INDUSTRY.CA 91745 TEL:888-682-882 WWW.EMPAVA.COM...
-
Page 3: Table Of Contents
CONTENT 1. Before First Use..................4 2. Important Safety Measures and Instructions........4 3. Warning and Cautions................. 5 4. Specifications..................7 5. Device Overview...................8 6. Before Initial Operation............... 1 2 7. Temperature Setting................13 8. Operation..................... 14 9. Energy Saving..................14 10. Cleaning and Maintenance.............14 11. -
Page 4: Before First Use
Thank you for choosing our product. If operated and taken care of properly in accordance with these instructions, this appliance will be useful for many years. 1. Before First Use Before first use, remove any stickers or similar from the appliance except for the ... -
Page 5: Warning And Cautions
3. Warning and Cautions Do not connect the appliance to the mains if the appliance itself or the power cord or the plug are visibly damaged. Never try to repair the appliance yourself. If the appliance does not operate properly, ... - Page 6 isconnect the appliance from the mains before you clean or maintain it. Do not use any electric appliances inside the food storage compartments of your appliance unless they are recommended by the manufacturer of your refrigerator. Do not put any heat-radiating appliances onto your appliance. ...
-
Page 7: Specifications
4. Specifications MODEL EMPV-BR03D EMPV-BR04D EMPV-BR01S EMPV-BR02S VOLUME 147 L 123L 177L VOLTAGE AC 110-120V AC 110-120V AC 110-120V AC 110-120V FREQUENCY 60Hz 60Hz 60Hz 60Hz PROTECTION TYPE CLIMATE CLASS SN.N SN.N SN.N SN.N INPUT POWER 90 Watt 90 Watt... -
Page 8: Device Overview
EMPV-BR01S... - Page 9 Model No.: EMPV-BR02S Light switch Light Temperature display NTC point ℉/℃ Switch Exhuaust window Temperature switch Shelf Exhuaust window Body Foot Lower hinge Glass Door frame Door seal Lock...
- Page 10 Model No.: EMPV-BR03D Left light switch Left temperature setting left temperature display Left temperature setting Left light Left upper hinge Power switch Left fan Exhaust window Left door seal Door frame Left glass Shelf Carbon filter Exhaust window NTC point Lock Right light switch Right temperature setting...
- Page 11 Model No.: EMPV-BR04D Left light switch Left temperature setting left temperature display Left temperature setting Left light Left upper hinge Power switch Left fan Left glass Exhaust window Left door seal Door frame NTC point Shelf Carbon filter Lock catch Lock Exhaust window Right light switch...
-
Page 12: Before Initial Operation
6. Before Initial Operation Leave the appliance in an upright position for 4–6 hours before you connect it to the mains. Clean the appliance thoroughly. Be very careful, especially inside the appliance (see chapter Cleaning and Maintenance). The appliance must be connected to the mains properly. ... -
Page 13: Temperature Setting
7. Temperature Setting Model No.: EMPV-BR01S / EMPV-BR02S Temp Lighting ℉/℃ Switch Switch Display Temp. Temp. Increase Decrease Temperature range: 38-50℉（3-10℃）. Flashing LED = Setting mode of the temperature. Constant LED = Cooling temperature. Model No.: EMPV-BR03D / EMPV-BR04D... -
Page 14: Operation
8. Operation The appliance can only reach the relevant temperatures when: The ambient temperature meets the climatic class. The doors close properly. You do not open the doors too often or too long. The door seals are in proper condition. The appliance is properly positioned. -
Page 15: How To Move The Appliance
External Cleaning Use a moist cloth and a mild, non-acid detergent. Use clear water to rinse. Try the cleaned surfaces with a cloth. Internal Cleaning Clean the shelves and the other removable parts with warm water and a mild, ... - Page 16 Suggest Cabinet Dimension: EMPV-BR01S Installation Drawing EMPV-BR02S Installation Drawing...
- Page 17 EMPV-BR03D >33.9” 33.9” EMPV-BR04D >34.1” 33.9” Installation Drawing...
- Page 18 Spare Parts Details: Spare Parts Pictures Upper Hinge To switch the door open from right. EMPV-BR01S EMPV-BR02S Bottom Hinge To switch the door open from tight. EMPV-BR01S EMPV-BR02S Screw x 2 For the handle installation. EMPV-BR01S EMPV-BR02S EMPV-BR03D EMPV-BR04D Gasket x 2 For the handle installation.
-
Page 19: Trouble Shooting
13. Trouble Shooting POSSIBLE CAUSE MEASURE The plug of the appliance is not Check the corresponding socket by connected to the socket. connecting it with another appliance. The plug has become loose. Check the fuse box. • The socket is not supplied with energy. Compare the data on the model plate with •... -
Page 20: Decommission
Decommission If the appliance is not used for a longer period of time: raw the plug out of the socket. 1. D Remove all food stored in the appliance. Dry the inside of the appliance with a cloth and leave the door open for a few days. While away on an average vacation/holiday (14–21 days): ... -
Page 21: Electrical Circuit Diagram
15. Electrical Circuit Diagram Model No.: EMPV-BR01S Model No.: EMPV-BR02S... - Page 22 Model No.: EMPV-BR03D Model No.: EMPV-BR04D...
