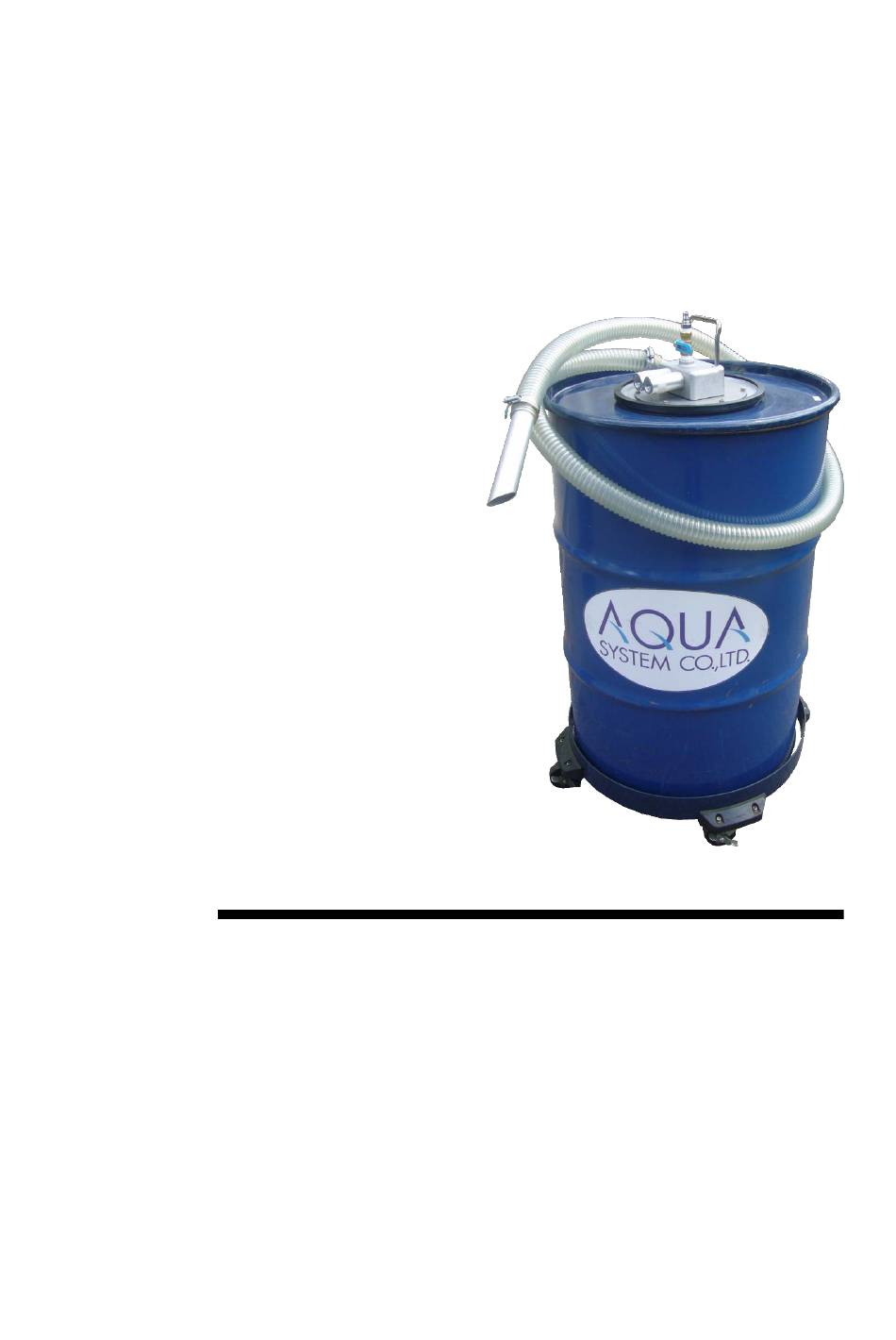

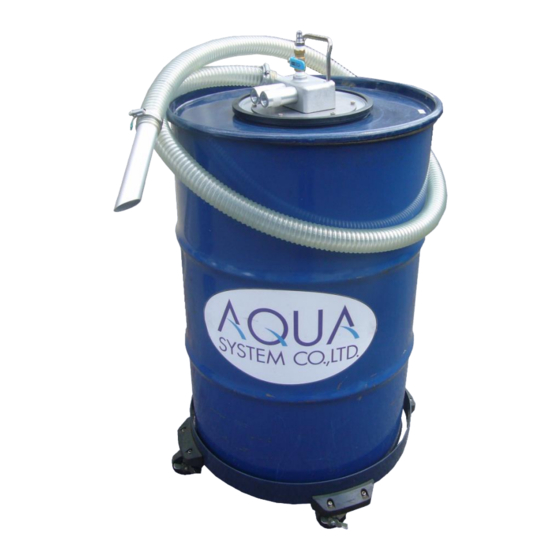

For 100L and 200L Open Drum Can
Air Type Vacuum Cleaner
MANUAL
■ APPQO-HP2
Contents:
2
・・・・・・・ For Safety
2 ～ 5
・・・・・・・ Before the use
5
・・・・・・・ Operation Conditions
6
・・・・・・・ Trouble Shooting
7
・・・・・・・ Specification
8 ～ 9 ・・・・・・・ Drawing and Part List
10 ～ 11 ・・・・・・・ Assurance & After Service
How to use and to stop
Filter Maintenance
External Dimensions
Advertisement
Table of Contents
Related Manuals for AQUASYSTEM APPQO-HP2
Summary of Contents for AQUASYSTEM APPQO-HP2
- Page 1 For 100L and 200L Open Drum Can Air Type Vacuum Cleaner MANUAL ■ APPQO-HP2 Contents: ・・・・・・・ For Safety 2 ～ 5 ・・・・・・・ Before the use ・・・・・・・ Operation Conditions How to use and to stop ・・・・・・・ Trouble Shooting Filter Maintenance ・・・・・・・ Specification External Dimensions 8 ～...
- Page 2 For Safety: This Manual covers important points for safe and correct operation. ・ We request all the users/dealers/distributor to read this Manual carefully and understand correctly, before this Product is used. (Incorrect operation may result in troubles and/or accident) ・ Be noted to keep this Manual properly, so that the Manual can be immediately read at any time, whenever needed.
- Page 3 ○ Be sure to use the Product at “No Fire” zone. Be sure the Product to be earthed, before the operation, when the explosive liquid is used, or operated at hazardous area. Static electricity may cause the fire. Warning ････････････････････････････････････････････････････････････････････････････････ ○Operate at safe places only: Operate at safe places only, where no infants/children play.
- Page 4 ○In case this Manual is lost or damaged: Please order to sales shop. ○APPQO-HP2 is for indoor application only: In case used outdoor, be sure to apply the cover or to operate in a hut, so that the product is protected from wind and/or rain.
-
Page 5: How To Use
Pail can is applicable for powder only. ○If the air is filled in, the air is discharged from the exit mouth. Pay attention for its direction. ○Just before the tank is full, the liquid may get out together with discharged air. ○Be sure to use the hose with dia.3/8 or bigger: If the hose dia. -
Page 6: How To Stop
How to stop: Tighten ball valve to stop the operation. Remove air hose from air coupler. In case the liquid remains in a pump, it may cause the rust, which may result in trouble or performance defect. Trouble Shooting: 1. In case sucking function does not work, ●... -
Page 7: Specifications
Specifications: Model： APPQO-HP2 Sucking Acceptable Lifting Noise Model Liquid Volume Materials viscosity Height (dB) (L/min) Main body Packing Hose APPQO-HP2 3,000cP Nozzle Aluminum External Dimensions:... -
Page 8: Parts Drawing・Parts List
Parts Drawing・Parts List... - Page 9 No.1 Parts Name DRW No. Material Q'ty Remarks 1 Handle Pipe SUS 304 TT0-10-100A 2 Air Coupler KXB0016 30PM 3 Compressed Spring SUS 304 1*13 OD*1n*3N*6H 4 Strainer SUS 304 5 Ball Valve C3771BE R3/8, Rc 3/8 6 Main Body APD0343 AC2B 7 Bolt with Hexagon Hole...
- Page 10 Assurance & After Service Thank you for choosing our product. Our product is produced strictly under our regulations and quality control. However, if any of the defects, related with our production processes, is found, our assurance covers, according to the below conditions. 1.
