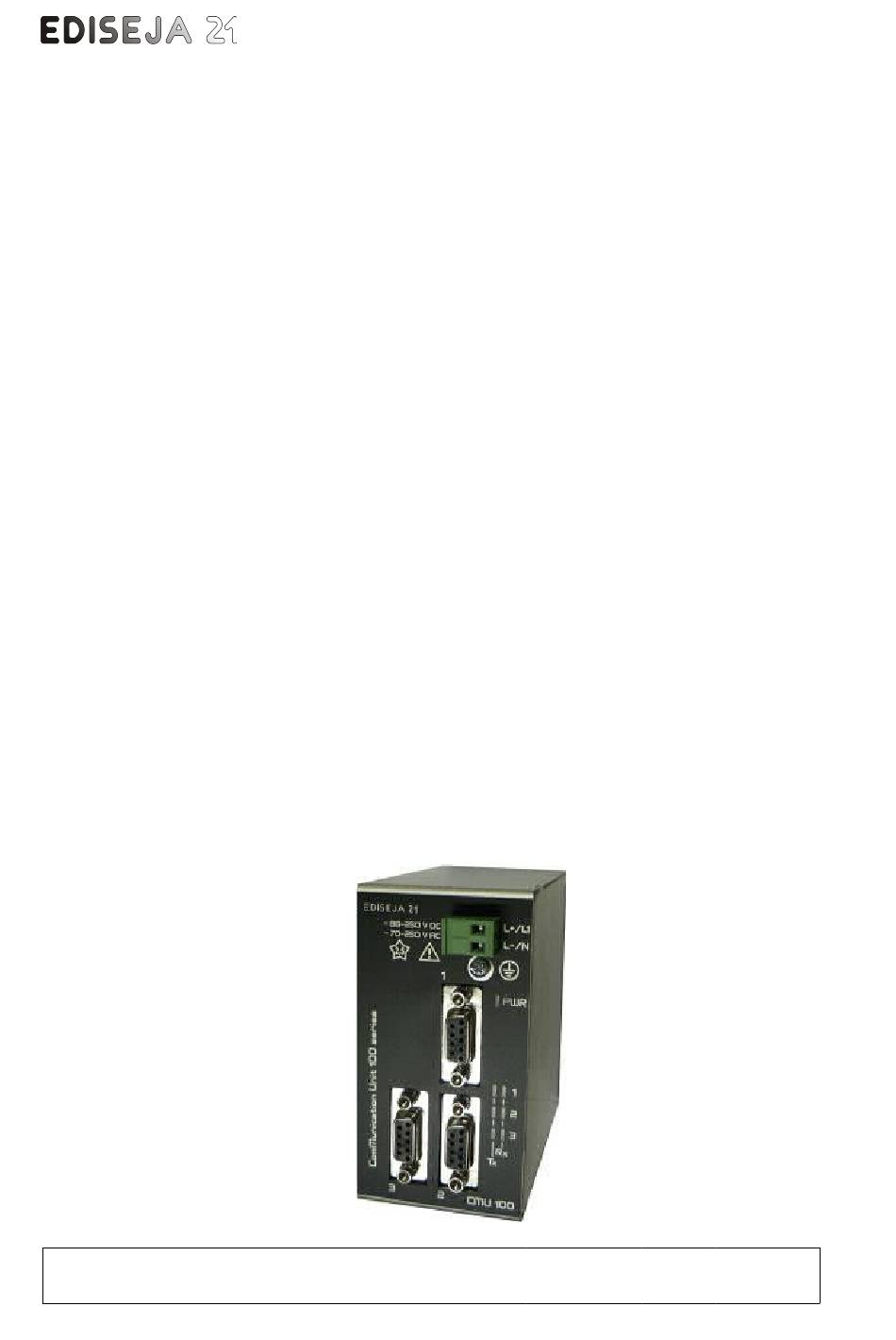

- Page 1 CMU 100 RS232 to 2x RS232 fallback switch User Manual CMU 100 / 2.1.1.1 - 17 CMU 100 / 4.1.1.1 - 17 CMU 100 / 8.1.1.1 - 17 CMU 100 / x.1.1.1 - 17 Device: Document: Code: Date: CMU 100 / x.1.1.1 - 17 User manual CMUMU217 03.02.2021...
-
Page 2: Table Of Contents
CMU 100 - RS232 to 2x RS232 fallback switch Content PREFACE.......................3 CMU 100 SYSTEM..................5 2.1 DESCRIPTION........................5 2.1.1 SOFTWARE........................5 2.1.2 HARDWARE........................5 RS232 TO 2x RS232 FALLBACK SWITCH..........7 3.1 DESCRIPTION........................7 3.2 TYPICAL APPLICATION..................... 7 3.3 APPEARANCE........................8 3.4 HARDWARE DESCRIPTION....................8 3.4.1 MAIN BOARD........................ -
Page 3: Preface
Tel: 00 386 51 643 411, 051 643 411 Email: grega.flander@ediseja21.com www.ediseja21.com Copyright Copyright © Ediseja 21, 2019. All rights reserved. Explanation of the symbols Read the instructions! Device was tested with 2,5 kV or 500 V AC voltage to check the device insulation. - Page 4 CMU 100 - RS232 to 2x RS232 fallback switch Caution indicates that minor personal injury or property damage can result if proper precautions are not taken. This particularly applies to damage on or in the device itself. General information These paper contain the information that is necessary for the proper and safe operation of the described devices.
-
Page 5: Cmu 100 System
CMU 100 - RS232 to 2x RS232 fallback switch CMU 100 SYSTEM DESCRIPTION Communication unit (CMU 100) is modular system of communication devices that can be used for various of tasks such as: communication converter (for example RS232 to RS485) ... - Page 6 CMU 100 - RS232 to 2x RS232 fallback switch Picture 1: CMU 100 system general diagram Page: Device: Document: Code: Date: CMU 100 / x.1.1.1 - 17 User manual CMUMU217 03.02.2021...
-
Page 7: Rs232 To 2X Rs232 Fallback Switch
CMU 100 - RS232 to 2x RS232 fallback switch RS232 TO 2x RS232 FALLBACK SWITCH DESCRIPTION Fallback switch is communication device that switches data between two master ports and one slave port. It is intended to connect one device (RTU) to two master devices (PC). This device contains three RS232 interfaces, one slave and two master ports. -
Page 8: Appearance

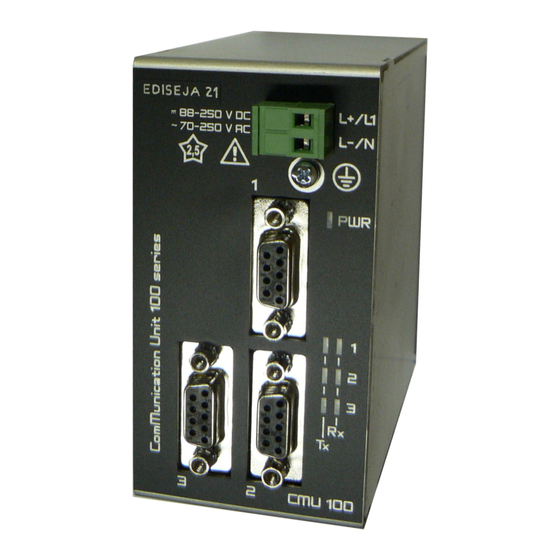

CMU 100 - RS232 to 2x RS232 fallback switch APPEARANCE Picture 3: CMU 100 / x.1.1.1 - 17 front view (left) & bottom view (right) HARDWARE DESCRIPTION This configuration of device is made from main board (power supply, LEDs, switches and logic witch), three RS232 interface boards. -
Page 9: Rs232 Interface Board
CMU 100 - RS232 to 2x RS232 fallback switch Switch 0,2 s 0,3 s 0,4 s 0,5 s 1,2 s 1,5 s 2,5 s Default position (1 s) Ports Configuration Port Interface RS232 RS232 RS232 3.4.2 RS232 INTERFACE BOARD Description Single, nonisolated, full duplex, RS232 port with DB9 female connector. - Page 10 CMU 100 - RS232 to 2x RS232 fallback switch CMU 100 Direction DB9 M pin Signal Signal DB9 F pin <------- -------> <-------> Page: Device: Document: Code: Date: CMU 100 / x.1.1.1 - 17 User manual CMUMU217 03.02.2021...
-
Page 11: Schematic
CMU 100 - RS232 to 2x RS232 fallback switch SCHEMATIC Picture 5: CMU 100 / x.1.1.1 - 17 schematic Device: Document: Code: Date: Page: CMU 100 / x.1.1.1 - 17 User manual CMUMU217 03.02.2021... -
Page 12: Installation
CMU 100 - RS232 to 2x RS232 fallback switch INSTALLATION INSTALLATION Warning! Hazardous voltage is present inside the device during operation. Disregarding of safety rules can result in severe personal injury or property damage. Only qualified personnel may work with described devices after being familiar with warnings and safety notices in this paper and other safety regulations. -
Page 13: Commissioning & Maintenace
CMU 100 - RS232 to 2x RS232 fallback switch COMMISSIONING & MAINTENACE COMMISSIONING Warning! Hazardous voltage is present inside the device during operation. Disregarding of safety rules can result in severe personal injury or property damage. Only qualified personnel may work with described device after being familiar with warnings and safety notices in this paper and other safety regulations. -
Page 14: Technical Data
CMU 100 - RS232 to 2x RS232 fallback switch TECHNICAL DATA Power supply CMU 100 / 2... CMU 100 / 8... CMU 100 / 4... 110 - 250 V 48 - 60 V 24 V Rated voltage 230 V 48 V 88 - 350 V 38 - 72 V 18 - 36 V... - Page 15 CMU 100 - RS232 to 2x RS232 fallback switch Other data Temperature range 0 °C to +55 °C up to 95 % (noncondensing) Humidity operating Material Enclosure standard DIN 35 rail (acc. to DIN EN 50022) Mount type Class Overvoltage category Device: Document: Code:...
-
Page 16: Dimensions
CMU 100 - RS232 to 2x RS232 fallback switch DIMENSIONS Picture 7: CMU 100 / x.1.1.1 - 17 dimensions Page: Device: Document: Code: Date: CMU 100 / x.1.1.1 - 17 User manual CMUMU217 03.02.2021... -
Page 17: Ordering
CMU 100 - RS232 to 2x RS232 fallback switch ORDERING ORDERING NUMBER: CMU 100 / Mother Board + Enclosure + : Power supply: DC 110 - 250 V or AC 230 V 2 ports converters (no echo possible, mark Function as 0) ..........1 2 to 8 ports converters, star couplers, ... - Page 18 CMU 100 - RS232 to 2x RS232 fallback switch Additional accessories (order if needed): - power supply cable with „schuko“ plug, 2 m - RS232 cable to PC (state the lenght up to 15 m) - fiber optic cables (state the lenght) List of the most common devices: 2 ports converters Port 1...
- Page 19 CMU 100 - RS232 to 2x RS232 fallback switch 10/100 Mbit/s, virtual com port, high voltage RS232 RS232 CMU 100 / 2.9.1.1 - 12 power supply 10/100 Mbit/s, virtual com port, 19200-115200 RS232 RS485 CMU 100 / 2.9.1.5 - 12 bit/s, high voltage power supply 10/100 Mbit/s, virtual com port, 19200-115200 RS485...
- Page 20 CMU 100 / 2.6.6.6.6.1.1.1.1 - 7 4 xFO MM 4x RS232 to RS232, high voltage power supply Contact: Ediseja 21, razvoj elektronskih naprav, d.o.o. Stegne 21C 1000 Ljubljana Slovenia – EU Tel: 00 386 51 643 411, 051 643 411 grega.flander@ediseja21.com...
