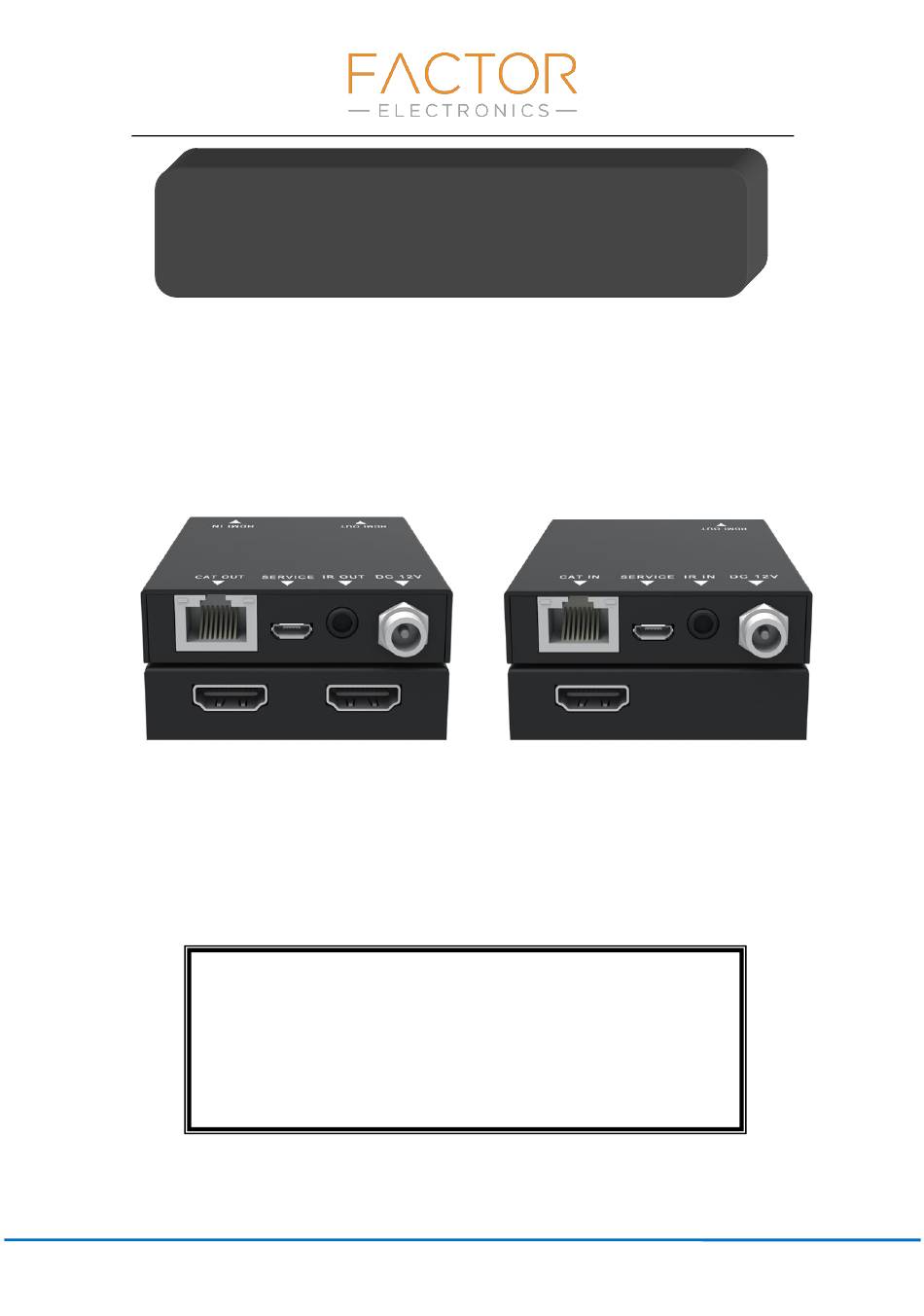

- Page 1 HD50-4K-BALUN 4K/18Gbps HDMI Extender Kit with one-way IR (50M) 4159 McConnell Drive Burnaby B.C. Canada V5A-3J7 Tel: 778-800-1918 Mail: info@factorelectronics.com www.factorelectronics.com info@factorelectronics.com...
- Page 2 Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. SURGE PROTECTION DEVICE RECOMMENDED This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lightning strikes, etc.
-
Page 3: Table Of Contents
Table of Content Introduction ......................4 Features........................4 Panel Descriptions ....................5 TX ................. Error! Bookmark not defined. RX ................. Error! Bookmark not defined. IR TX/RX Guidelines ....................6 IR Pin Definition ....................6 Application Diagram ....................7 Specifications ......................7 Package Contents .................... -
Page 4: Introduction
164ft /50 meters between the transmitter and receiver over a single Cat5e/6 cable. The HD50-4K-Balun supports resolution up to 4K2K@60Hz 4:4:4, 18Gbps and HDCP 2.2. In addition, the extender is equipped with one-way IR pass-through which allows for source control and one HDMI loop output. -
Page 5: Panel Descriptions
Panel Descriptions TX (transmitter) Balun HDMI Output – HDMI loop output port connects to any HDMI display device such as a TV or Projector using an HDMI cable. HDMI Input – Connect to any HDMI source device such as a DVD, computer or gaming player using an HDMI cable. -
Page 6: Ir Tx/Rx Guidelines
IR Emitter: Plug in the IR emitter to emit all IR command signals received from the IR receiver from the other end to control the source devices connected to the HD50-4K-Balun. IR Receiver: Plug in the IR receiver to receiver all IR command signals from the IR remote controls connected to the HD50-4K-Balun. -
Page 7: Application Diagram
Application Diagram Specifications Technical HDMI Compliance HDMI 2.0 HDCP Compliance HDCP 2.2 / HDCP 1.4 Video Bandwidth 18Gbps Video Resolution Up to 4K60Hz 4:4:4 Color Space RGB / YCbCr 4:4:4, YCbCr 4:2:2/4:2:0, YUV 4:4:4 Color Depth 8/10/12-bit (1080P60Hz, 4K30Hz, 4K60Hz YCbCr 4:2:2/4:2:0) 8-bit (4K60Hz 4:4:4 ) HDMI Audio Formats... -
Page 8: Package Contents
Outputs: 1x HDMI Type A [19-pin female] 1x IR OUT [3.5mm Stereo Mini-jack] 1x CAT OUT [RJ45, 8-pin female] Receiver Inputs: 1x IR IN [3.5mm Stereo Mini-jack] 1x CAT IN [RJ45, 8-pin female] 1x SERVICE [Micro USB, Update port] Outputs: 1x HDMI Type A [19-pin female] Mechanical Housing Metal Enclosure... -
Page 9: Maintenance
The warranty does not apply to any part of a product that has been installed, altered, repaired, or misused in any way that, in the opinion of Factor Electronics, would affect the reliability or detracts from the performance of any part of the product, or is damaged as the result of use in a way or with equipment that had not been previously approved by Factor Electronics. -
Page 10: Exclusive Remedies
The warranty does not cover replacement or repair necessitated by loss or damage from any cause beyond the control of Factor Electronics, such as lightning or other natural and weather related events or wartime environments. The warranty does not cover any labor involved in the removal and or reinstallation of warranted equipment or parts on site, or any labor required to diagnose the necessity for repair or replacement. -
Page 11: Standard Replacement
Shipping your RMA to Factor Electronics using regular mailing envelopes is not acceptable, as they do not protect the product from damage during shipping. Factor Electronics will not repair or replace a module that is shipped in such a way that the product is not properly protected. - Page 12 Factor Electronics will not accept any product that has been damaged as a result of accident, abuse, misuse, natural or personal disaster, or any unauthorized disassemble, repair or modification. www.factorelectronics.com info@factorelectronics.com...
