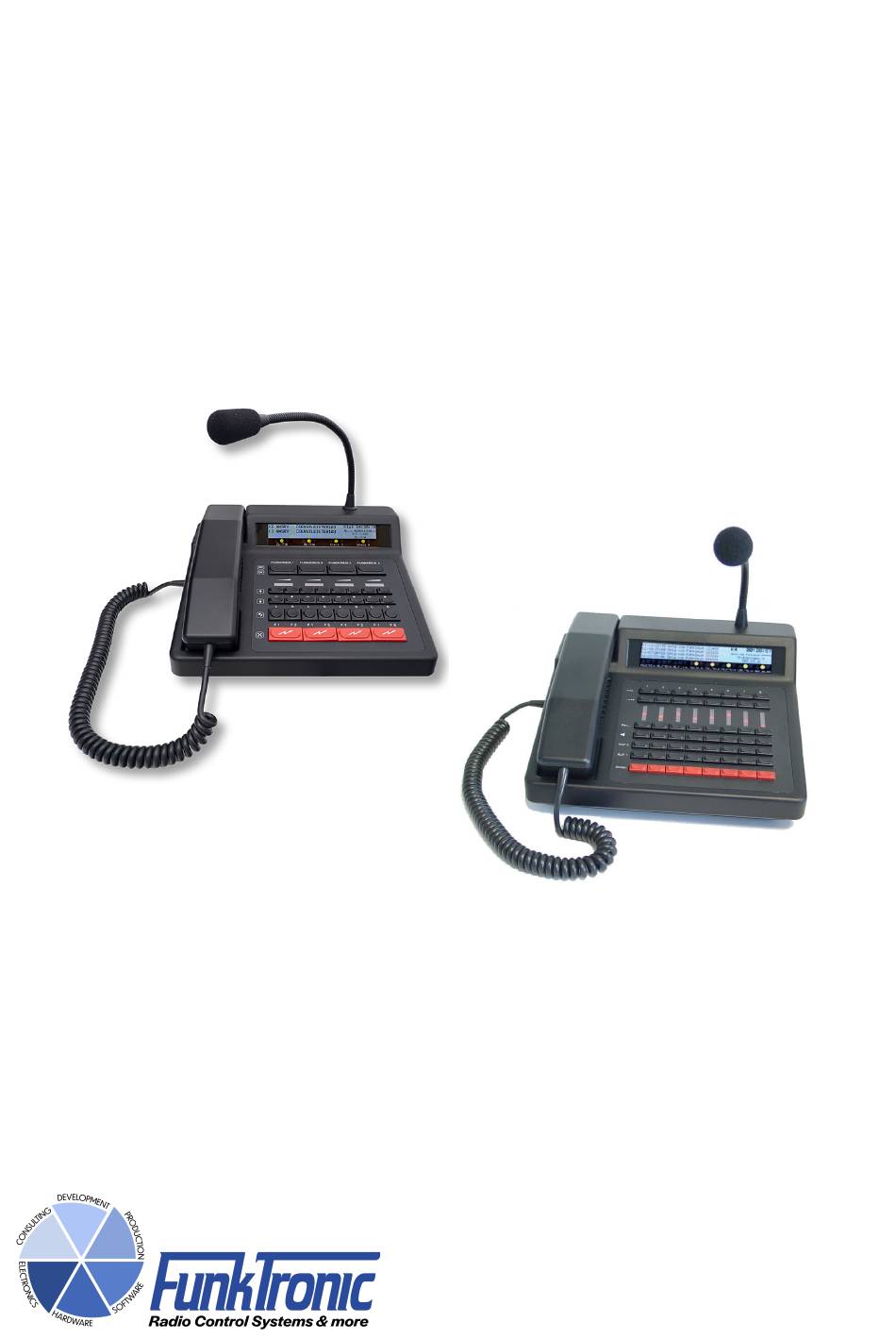

- Page 1 Major BOS 4VD + Major BOS 8VD Manual VoIP control panel for up to 4/8 digital (TETRA) and/or analogous radio terminals...
-
Page 2: Table Of Contents
Major BOS 4VD/8VD Contents 1. Major BOS 4VD + Major BOS 8VD....................3 2. Order informaton..........................3 3. Control elements..........................4 3.1. Control elements Major BOS 4VD....................4 3.2. Control elements Major BOS 8VD....................6 3.3. Display (standard operaton)....................8 3.4. Menu control...........................9 3.5. Major BOS 4VD with opton 4 out of 8..................9 3.6. -
Page 3: Major Bos 4Vd + Major Bos 8Vd

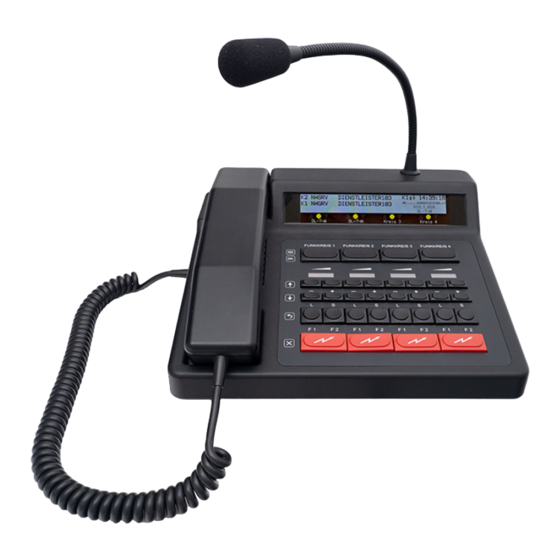

Major BOS 4VD/8VD 1.Major BOS 4VD + Major BOS 8VD 1. Major BOS 4VD + Major BOS 8VD Major BOS 4VD and Major BOS 8VD are Voice-over-IP (VoIP) table-top control panels for up to 4 or 8 mobile radio terminals (MRTs), respectvely. With its TFT display, Major BOS 4VD/8VD is especially suited for the operaton of digital (TETRA) radios (display of caller ID, group selecton, sending status ...). -
Page 4: Control Elements
Major BOS 4VD/8VD 3.Control elements 3. Control elements 3.1. Control elements Major BOS 4VD 1 – TFT display 2 – Radio selecton buuons (Menu/OK) 3 – Volume display (LED band) 4 – Volume buuons - / + (Menu ↑) 5 – Loudspeaker buuons and special buuons S (Menü ↓) 6 –... - Page 5 Major BOS 4VD/8VD 3.Control elements Ke:pad label - Major BOS 4VD MBOSVD_eng (24.09.21)
-
Page 6: Control Elements Major Bos 8Vd
Major BOS 4VD/8VD 3.Control elements 3.2. Control elements Major BOS 8VD 1 – TFT display 2 – Radio selecton buuons (Menu/OK) 3 – Volume buuons: VOL+ / Menu+ 4 – Volume display (LED band) 5 – Volume buuons: VOL- / Menu- 6 –... - Page 7 Major BOS 4VD/8VD 3.Control elements Ke:pad label - Major BOS 8VD MBOSVD_eng (24.09.21)
-
Page 8: Display (Standard Operaton)
Major BOS 4VD/8VD 3.Control elements 3.3. Display (standard operation) Status bar Call-Displa: (shows 4 most recent calls) Radio no.: Number of the radio that received the call • • Time of Call: Time the call was started Caller ISSI: ISSI of the caller (or alias if applicable) •... -
Page 9: Menu Control
Major BOS 4VD/8VD 3.Control elements 3.4. Menu control The TETRA functons can be used via a self-explaining menu by pressing the menu/[OK] buuon, i.e. the radio selecton buuon, for at least one second. Menu navigaton is performed via the [+] / [-] or [↑] / [↓] buuons, respectvely, and entering of submenus as well as the choice of optons is confrmed with [OK]. -
Page 10: Internal Voice Redorder
Major BOS 4VD/8VD 3.Control elements 3.6. Internal voice recorder In order to further accomodate the common needs of a dispatcher workstaton, we added an internal voice recorder functonality as a new feature of our control panels Major BOS 4VD and Major BOS 8VD. - Page 11 Major BOS 4VD/8VD 4.Connectvity 4. Connectivity The VoIP control panel Major BOS 4VD/8VD enables the connecton of up to 4 or 8 radios via ethernet, respectvely. Using the FT638 Digital radio box MRTs of Sepura (SRG3900) and/or Motorola (MTM800 FuG (ET) / MTM5X00 series) can be connected. One FT638 enables the connecton of two MRTs via ethernet.
-
Page 12: Connectvity
Major BOS 4VD/8VD 4.Connectvity 5. Pin layout Power supply +12V DC, max. 1,5 A Socket TB Connecton of voice recorder 1...4 Control pin for recorder AF out A AF out B Socket RS232 3-pin RS232 interface + programmable I/Os + external loudspeaker (LS2) TXD (output) 1..8 RXD (input) - Page 13 Major BOS 4VD/8VD 5.Pin layout Socket HS Connecton of headset (or headset adapter) 1..6 PTT HS1 in AF in HS (mic +) AF out HS (earphone +) GND AF out (earphone -) GND AF in (mic -) GND (PTT HS1) Socket S/E 8-wire socket for connecton of analogous device 1..8...
-
Page 14: Confguraton Via Web Interface
Major BOS 4VD/8VD 6.Confguraton via web interface 6. Configuration via web interface The confguraton of the Major BOS 4VD/8VD is done via its graphical web interface. The ex-factory confguratons of the most important network setngs are: ULser nameo mbosv Passwordo radio Local IP address: 192.168.16.181... -
Page 15: Technical Data
Major BOS 4VD/8VD 7.Technical data 7. Technical data Dimensions (w/o gooseneck mic) 245 x 220 x 90 mm (W x D x H) Weight ca. 1500 g Suppl: voltage +12V DC / -15% +25% Current consumpton ca. 200-500 mA Input level (S/E) Factory setng 775 mV (= 0 dB) / 600 Ohm Adjustment range... -
Page 16: General Safety Instructons
Our devices are classifed for commercial use only. According to § 11 of our general terms of payment and delivery, as of August 2015, the purchasers or users are obliged to return old equipment by us free of cost. FunkTronic GmbH will dispose of this old equipment at its own expense according to regulatons. -
Page 17: Release Notes
Major BOS 4VD/8VD 10.Release notes 10. Release notes 15.11.17 - frst version (for Major BOS 8VD) 23.07.18 - enhanced manual for Major BOS 4VD and Major BOS 8VD 06.11.20 - correcton of pin layout "socket RS232", minor changes 24.09.21 - additon of voice recorder functonality -17- MBOSVD_eng (24.09.21)
