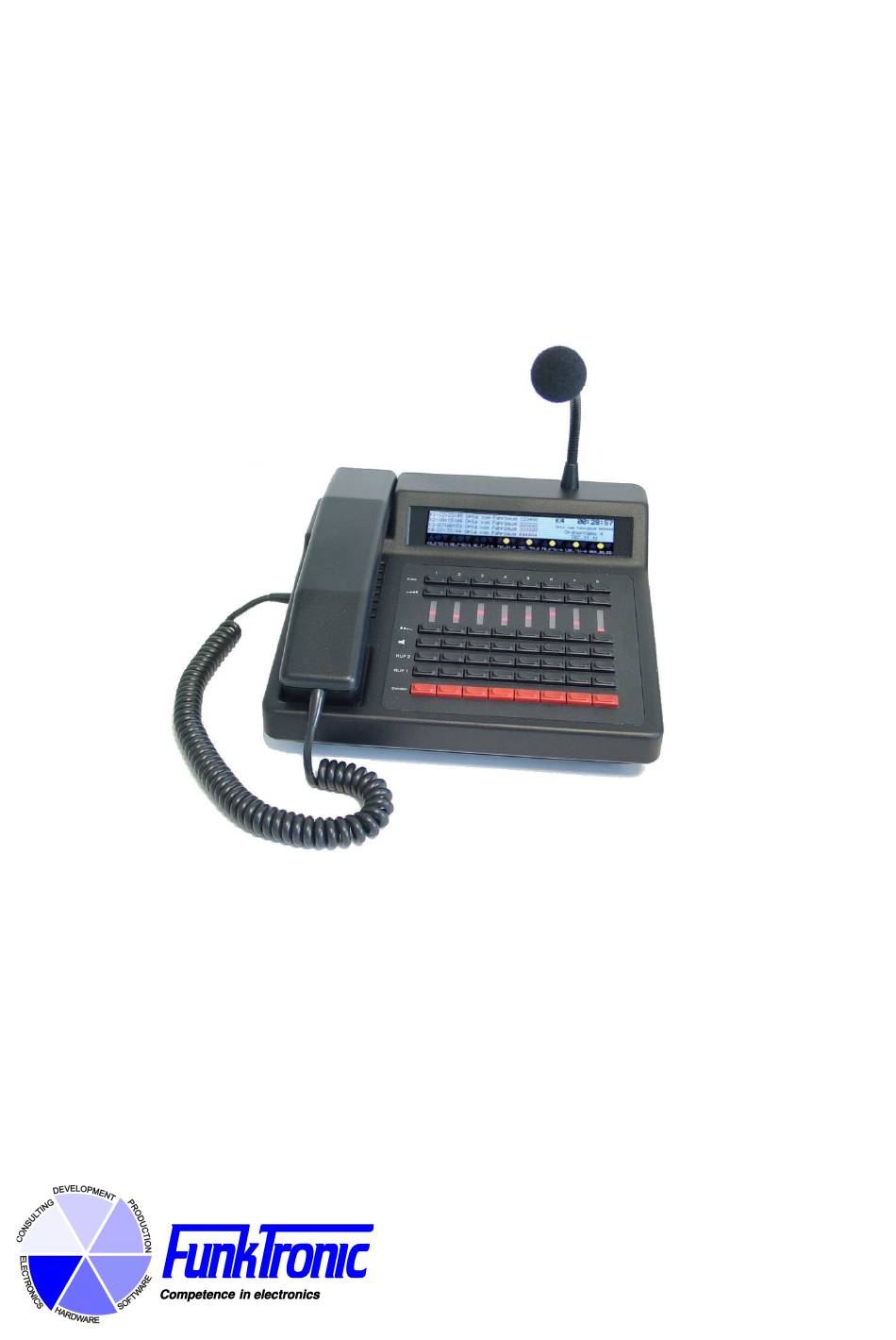

- Page 1 Major BOS 8VD Manual VoIP control panel for up to 8 digital (TETRA) and/or analogous radio terminals...
-
Page 2: Table Of Contents
Major BOS 8VD Contents 1.Major BOS 8VD..........................3 2.Order information..........................3 3.Control elements Major BOS 8VD....................4 3.1.Display (standard operation)....................5 3.2.Menüsteuerung........................6 4.Connectivity............................7 5.Pin layout............................8 6.Configuration via web interface.....................10 6.1.Restoring the default IP address.....................10 7.Technical data..........................11 8.General Safety Instructions......................12 9.Returning of Old Equipment......................12 10.Release Notes..........................13... -
Page 3: Major Bos 8Vd
Major BOS 8VD, as there are: the footswitch, headsets, magnetic fixation for handset, metal holder for sunk-in table mounting, power-over-ethernet (PoE)... As with all our VoIP devices, configuration of the Major BOS 8VD is done via an intuitive graphical web interface. -
Page 4: Control Elements Major Bos 8Vd
Major BOS 8VD 2.Order information 3. Control elements Major BOS 8VD 1 – TFT display 2 – Radio selection buttons (Menu/OK) 3 – Volume buttons: VOL+ / Menu+ 4 – Volume display (LED band) 5 – Volume buttons: VOL- / Menu- 6 –... -
Page 5: Display (Standard Operation)
Major BOS 8VD 3.Control elements Major BOS 8VD 3.1. Display (standard operation) Status bar Call-Display (shows 4 most recent calls) • Radio no.: Number of the radio that received the call • Time of Call: Time the call was started •... -
Page 6: Menüsteuerung
Major BOS 8VD 3.Control elements Major BOS 8VD 3.2. Menüsteuerung Zur komfortablen Bedienung der zusätzlichen Funktionen des Digitalfunks verfügt die Major BOS 8VD über eine selbsterklärende Menüstruktur. Zum Öffnen des Hauptmenüs für den jeweiligen Funkkreis muss die entsprechende Menütaste (= Kreistaste) 1 Sekunde lang gedrückt werden. -
Page 7: Connectivity
4.Connectivity 4. Connectivity The VoIP control panel Major BOS 8VD enables the connection of up to 8 radios via ethernet. Using the FT638 Digital radio box MRTs of Sepura (SRG3900) and/or Motorola (MTM800 FuG (ET) / MTM5X00 series) can be connected. One FT638 enables the connection of two MRTs via ethernet. -
Page 8: Pin Layout
Major BOS 8VD 5.Pin layout 5. Pin layout Power supply +12V DC, max. 1,5 A Socket TB Connection of voice recorder 1...4 Control pin for recorder AF out A AF out B Socket RS232 3-pin RS232 interface + programmable I/Os 1..8... - Page 9 Major BOS 8VD 5.Pin layout Socket HS Connection of headset (or headset adapter) 1..6 PTT HS1 in AF in HS (mic +) AF out HS (earphone +) GND AF out (earphone -) GND AF in (mic -) GND (PTT HS1)
-
Page 10: Configuration Via Web Interface
Restoring the default IP address If the IP address of the Major BOS 8VD is not known for some reason, the device can be started in default IP mode. For this, during power-on, you have to simultaneously press the red PTT button for radio 1 and the PTT button on the inner side of the handset, while the handset is situated on its rest (hook-on). -
Page 11: Technical Data
Major BOS 8VD 7.Technical data 7. Technical data Dimensions (w/o gooseneck mic) 245 x 220 x 90 mm (W x D x H) Weight ca. 1500 g Supply voltage +12V DC / -15% +25% Current consumption ca. 200-500 mA Input level (S/E) -
Page 12: General Safety Instructions
Our devices are classified for commercial use only. According to § 11 of our general terms of payment and delivery, as of August 2015, the purchasers or users are obliged to return old equipment by us free of cost. FunkTronic GmbH will dispose of this old equipment at its own expense according to regulations. -
Page 13: Release Notes
Major BOS 8VD 10.Release Notes 10. Release Notes 15.11.17 - First version -13- MBOS8VD_eng (15.11.17)
