Summary of Contents for Rawlings Pro Line

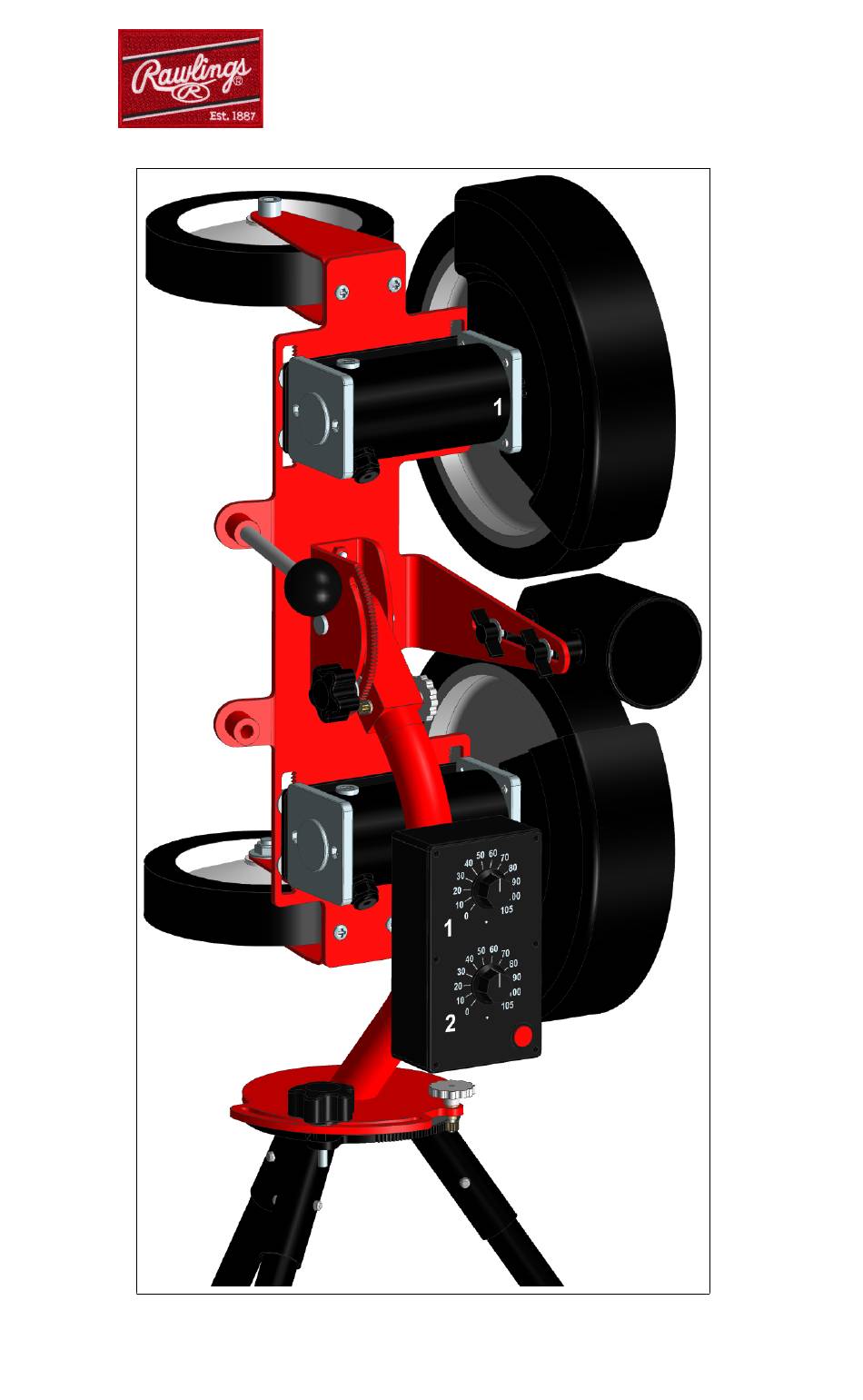

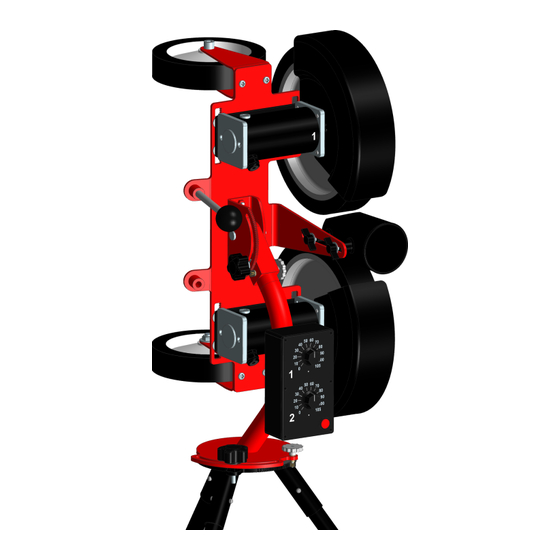

- Page 1 Pro Line Two Wheel Pitching Machine Owner's Manual...
-
Page 2: Assembly & Set-Up
FAST, FREE, FRIENDLY HELP ® Rawlings Pro Line pitching machines are designed, manufactured, sold, serviced, and supported by Spinball Sports LLC. For assistance assembling or using your machine, please view our videos online at www.spinballsports.com, call us at 618-244-4587, or email us at info@spinballsports.com. - Page 3 Figures 1 & 2: Baseball and softball leg installation to clear the wheels by 1/4 - 1/2". Placing the tube in contact with the wheels will damage the tube and wheels, and may cause the tube to be grabbed and thrown. Placing the tube too far away from the wheels will diminish the machine's accuracy.
-
Page 4: Transport Wheels
TRANSPORT WHEELS The two transport wheels are installed with two screws each. These screws (and matching nuts and washers) are shipped pre-installed in the bracket holes. See Figure 5. AIMING HANDLE The machine aiming handle screws into either of the two tabs on the side of the frame. See Figure 5. Figure 5: Transport wheel and aiming handle installation... -
Page 5: Operation
MOTOR / WHEEL POSITION The gap between the wheels is a critical adjustment to maximize pitch speed and accuracy. The optimal distance between wheels depends on the size and compressibility of the ball being used. Softer, more compressible balls require a smaller gap than harder balls do. - Page 6 Figure 6: Typical top motor / wheel positioning for real baseballs. Profiled blocks are located at center position Figure 7: Typical bottom motor / wheel positioning for real baseballs. Profiled blocks are located at center position keep track of which motor is controlled by which knob even if the machine is rotated upside down.
- Page 7 Figure 8: Typical top motor / wheel positioning for real softballs. Profiled blocks are located at top position Figure 9: Typical bottom motor / wheel positioning for real softballs. Profiled blocks are located at bottom position ADJUSTING MACHINE ORIENTATION The machine is positioned using 3 different angle adjustments: horizontal, vertical, and twist.
- Page 8 the twist angle is used to change the direction of ball spin and therefore ball curve. When using the machine for defensive drills, the horizontal and vertical pin joints can be left loose to let the machine swivel freely, but the twist angle should always be locked during use to prevent accidental movement.
- Page 9 Do not loosen the vertical angle clamping knob without a firm grip on either the ball ended aiming handle or the micro adjust knob, or else the machine could rotate unexpectedly under its own weight. The best practice for making small aim adjustments is to loosen the joint just enough that you can adjust the machine with a little effort, but not loosen it enough that it can flop around on its own.
-
Page 10: Wheel Balancing
grabbing the ball sufficiently. The wheels can be cleaned with solvent cleaners such as MEK, acetone, or lacquer thinner along with sandpaper. Cheap synthetic leather baseballs wear quickly and leave excessive residue, so we strongly discourage their use. This includes the Wilson A1010S. -
Page 11: Maintenance
Refunds will be reduced to cover any non-cosmetic damage. THANK YOU! Thanks for buying from Rawlings and Spinball Sports. We hope you will enjoy your new pitching machine for many years to come. If you have any questions or comments please email us at info@spinballsports.com... - Page 12 Rawlings ® Pro Line pitching machines are designed, manufactured, sold, serviced, and supported by Spinball Sports LLC under license. www.spinballsports.com info@spinballsports.com 618-244-4587...
