Wirquin 20980001 Fitting Instructions

Stainless steel soft close hinges

Advertisement

Quick Links

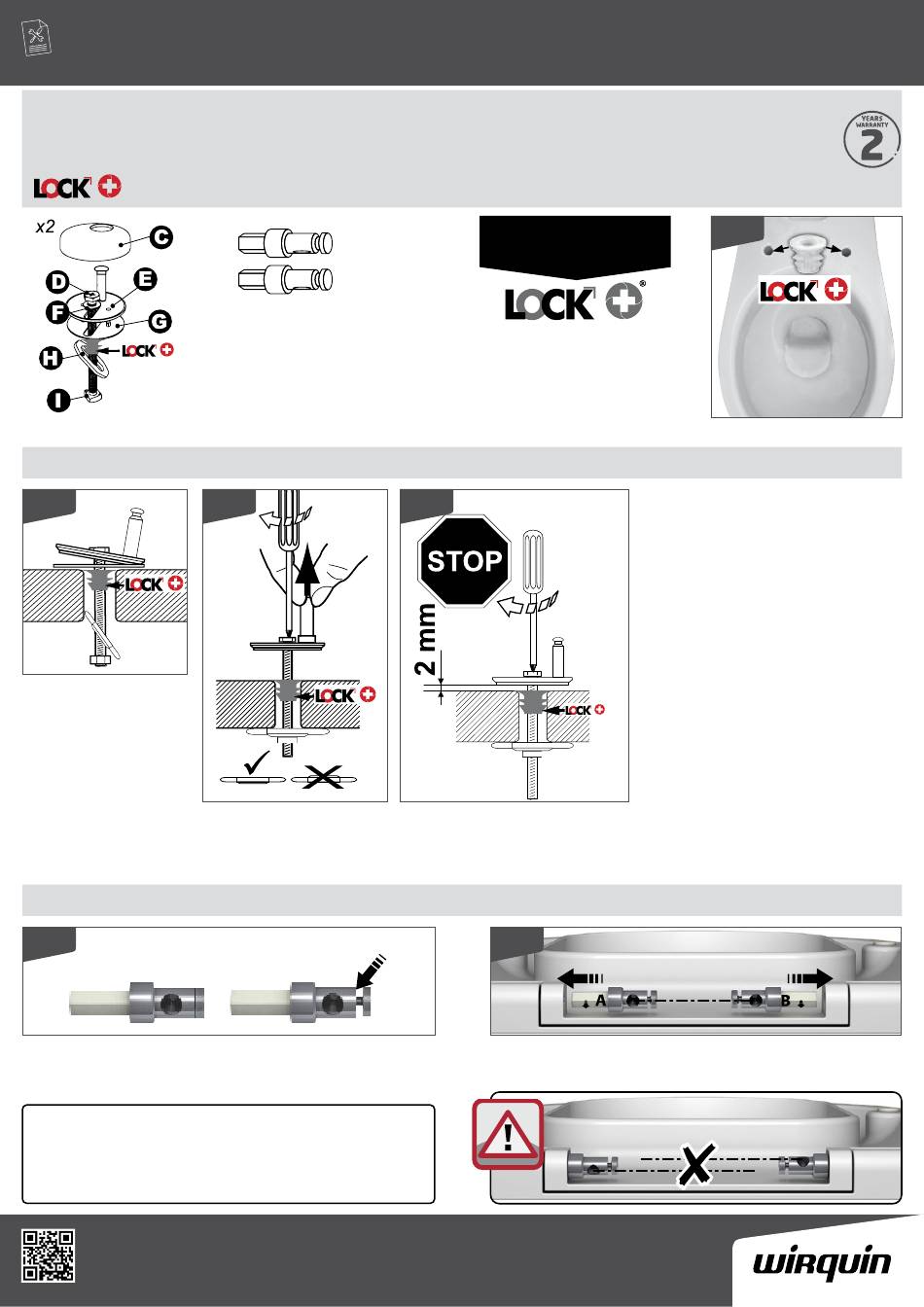

HINGE FITTING INSTRUCTIONS
Stainless steel soft close hinges
BEFORE INSTALLING YOUR WIRQUIN TOILET SEAT
• Verify the colour and size.
• Check that the visual surface is free from cracks and surface defects.
x1
A
• Ensure that all components are present and in a satisfactory condition.
x1
• No claims will be entertained after installation.
A
x1
B
ONLY SUPPLIED WITH SELECTED COMPATIBLE SEATS. Ignore this step if not included.
x1
B
A : INSTALLATION OF FIXATION TO PAN
2
B : INSTALLATION OF SOFT CLOSE CARTRIDGES
5
• CLOSED position
• Ensure the seat and lid are clean from any debris.
• Unscrew the fastener on the cartridges by hand with minimum
force to a maximum of 2mm to OPEN position.
• DO NOT unscrew the fastener with the allen key.
• DO NOT force fastener beyond mechanical stop.
• DO NOT attempt to unscrew the fastener completely.
• THE ABOVE WILL CAUSE IRREPAIRABLE DAMAGE TO THE SCREW
THREAD AND RENDER THE HINGES USELESS!
x1
A
x1
B
3
2mm
• OPEN position
STOP SEAT
MOVEMENT
 holds the seat in place!
4
1h30
1h00
6
1
2
SLOW
SLOW
• Align cartridges and insert into seat.
• A - Controls speed of LID. B - Controls speed of SEAT
1
30 mn
15 mn
10 mn
3
SLOW
SLOW
270913
B_06/2021
click !
