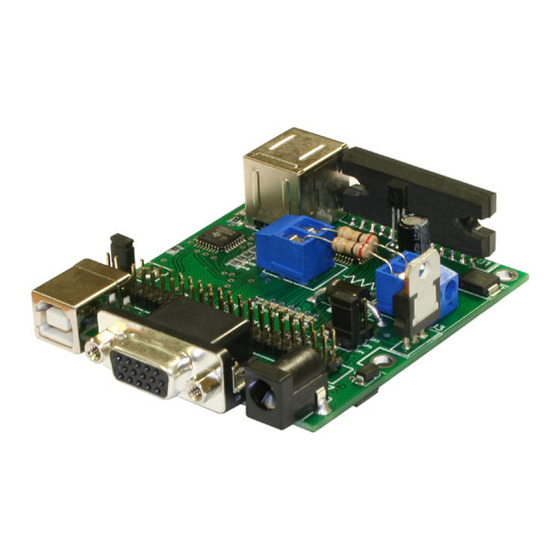

8SMC1-USBhF stepper motor controller. Quick start user guide
8SMC1-USBhF
1.5A Microstep Driver with USB Interface
Quick start user guide
Note: Information in this quick start user guide is believed to be accurate and reliable. However no
responsibility is assumed for the consequences of its use or for any infringement of patents or other right of
third parties which may result from it's use. Specifications are subject to change without notice.
Note: Windows are registered trademark of Microsoft Corporation, LabVieW and NI VISA is registered
trademark of National Instruments Inc. All other products and corporate names appearing in this manual may
or may not be registered or copyrights of their respective companies, and are used only for identification or
explanation and to the owner's benefit, without intent to infringe.
1/14/2008
www.standa.lt
Page 1 of 8
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Standa 8SMC1-USBhF
Summary of Contents for Standa 8SMC1-USBhF
- Page 1 8SMC1-USBhF stepper motor controller. Quick start user guide 8SMC1-USBhF 1.5A Microstep Driver with USB Interface Quick start user guide Note: Information in this quick start user guide is believed to be accurate and reliable. However no responsibility is assumed for the consequences of its use or for any infringement of patents or other right of third parties which may result from it’s use.
- Page 2 1 Introduction Congratulations on your purchase of the 8SMC1-USBhF stepper motor controller. This Quick start user guide describes how to set up and start the 8SMC1-USBhF stepper motor controller. Refer to the 8SMC1-USBhF User Manual (PDF file) for more detailed information about the operation and programming of the 8SMC1-USBhF stepper motor controller.
- Page 3 Ohm current sensing resistors for stepper motors, where rated current is 400 mA (unless another is specified). − USB A-B cable. It connects 8SMC1-USBhF to PC. Use only operable USB cables! Defective USB cables may cause the 8SMC1-USBhF to malfunction.
- Page 4 − Connect DC power supply to Power connector on 8SMC1-USBhF front panel. − Switch the DC power supply on. − Use ‘USB A-B cable’ to connect PC to USB connector on 8SMC1-USBhF front panel. Figure 5. 8SMC1-USBhF Stepper motor controller front panel 1/14/2008 www.standa.lt...
- Page 5 Figure 6. Hardware wizard 1 screen Windows New Hardware Wizard will start after first connection of 8SMC1-USBhF controller to PC. Wait while Windows will find a new hardware and install driver for it. Depending on a Windows version it may pass automatically or demand to pass several steps: o The main window of the Hardware Wizard will appear (see Figure 6).
- Page 6 8SMC1-USBhF stepper motor controller. Quick start user guide Figure 8. Hardware wizard 3 screen o If other 8SMC1-USBhF controllers were installed on computer earlier, screen Figure 8 may appear. Choose 8SMC1-USB.inf and press “Next” button. Figure 9. Hardware wizard last screen 5.2 First start with SMCVieW...
- Page 7 Press “REFRESH” button. All available 8SMC1-USBhF devices will be found. Interface can represent up to three devices simultaneously. If more than three 8SMC1-USBhF devices are used at the same time, slider is displayed at the left side of SMCVieW interface (see Figure 11).
- Page 8 8SMC1-USBhF stepper motor controller. Quick start user guide For running stage choose appropriate speed (see Figure 13) and destination position (Figure 14) and press START button. Figure 13. Figure 14. 6 More detailed information Use this Quick start user guide for quick start only. Refer to the User Manual for more detailed information.
