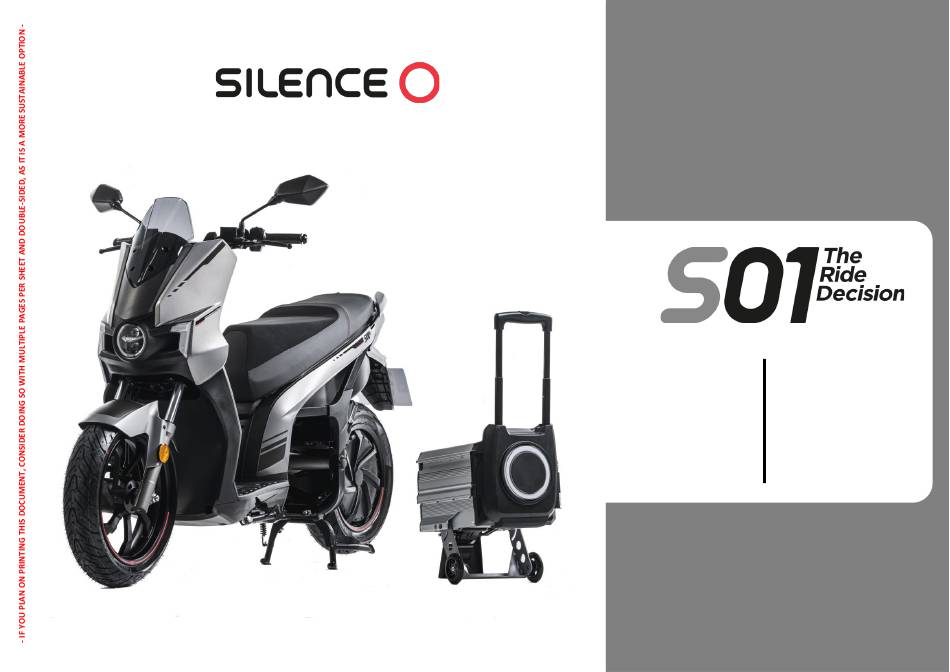

- Page 1 USER MANUAL MY22 S01 BASIC S01 STANDARD S01 CONNECTED S01+ (V006) Variant shown: S01+ - 10/03/2022 -...
-
Page 2: Hello Silencer
On the other hand, the Connected variant, in addition to sharing the features of the Standard variant, also has a TCU device that, thanks to the “My Silence” application, allows you to link the scooter to your smartphone, being able to control it at all times and even share it with whoever you want. It also has a USB power socket, for charging your mobile phone, for example. -
Page 3: About This Manual
Furthermore, at the following link you will find answers to some questions you may have (FAQs): SUPPORT. You can also scan this QR code: OFFICIAL SERVICES NETWORK If you need additional support, you can always contact a SILENCE Official Service Centre. You may find the map with our service network under the link OFFICIAL SERVICE CENTRES or by scanning the QR code. -
Page 4: Table Of Contents
DRIVING MODES ................................................36 “M ” ) ....................................... 40 ILENCE ONLY FOR CONNECTED VERSIONS TECHNICAL SPECIFICATIONS ............................................41 Scooter specifications (structure + motor)........................................41 MU_S01 MY22_EN - User Manual S01 MY22 (V006) Page 4 of 68 Copyright© SILENCE Urban Ecomobility... - Page 5 VEHICLE AND BATTERY WARRANTY ..........................................64 Delivery to buyer ................................................. 64 Warranty terms and conditions (grounds for voiding the warranty) ................................65 Inspection: Scooter and Battery ..........................................66 MU_S01 MY22_EN - User Manual S01 MY22 (V006) Page 5 of 68 Copyright© SILENCE Urban Ecomobility...
-
Page 6: Safety
The most important recommendations are set out below: Use and maintenance SILENCE S01 is an urban scooter designed to be used only on roads, carrying at most the driver and one passenger. It is also important to respect the maximum load indicated in the "Carrying loads" section. -
Page 7: Clothing And Protection Elements
These should be form-fitting and the right size, and we recommend they have reflector strips. These recommendations also apply to any passenger. Wear snug-fitting footwear, with a low heel and protect your ankles MU_S01 MY22_EN - User Manual S01 MY22 (V006) Page 7 of 68 Copyright© SILENCE Urban Ecomobility... -
Page 8: Carrying Loads
Accessories and modifications We recommend using only original SILENCE accessories, as they have been designed and tested to ensure they work properly with this model of scooter. If you use other accessories or modify them in any way, you must make sure they are installed and chosen properly, so that they: - Do not reduce the turning angle of the handlebar or interfere with the use of any of the controls. -
Page 9: Vehicle Identification
This scooter has a second label with the chassis and homologation number, among other information. This label is found on the front part of the battery compartment: MU_S01 MY22_EN - User Manual S01 MY22 (V006) Page 9 of 68 Copyright© SILENCE Urban Ecomobility... -
Page 10: Basic Components And Functioning
Tail light and rear indicator lights indicator lights Rear fender Front fork Rear shock absorber Front fender Front wheel Rear wheel (motor) Side Battery Centre stand stand MU_S01 MY22_EN - User Manual S01 MY22 (V006) Page 10 of 68 Copyright© SILENCE Urban Ecomobility... -
Page 11: Battery Pack ("Be")
Battery pack (“be”) The SILENCE S01 model has an innovative removable battery pack with a handle and wheels so it can be transported like a trolley, called “be”. This means you can charge it on the scooter or wherever you want, simply by taking the battery to a power source. -
Page 12: Dashboard
It features an LCD screen, 2 buttons (“SET” and “INFO”) and 10 warning lights, which are explained below. MU_S01 MY22_EN - User Manual S01 MY22 (V006) Page 12 of 68 Copyright© SILENCE Urban Ecomobility... - Page 13 The top of the display shows the battery's state of charge (SoC). This is shown as a percentage, so when the battery is completely discharged it will read 0 % and when it is fully charged it will show 100 %. MU_S01 MY22_EN - User Manual S01 MY22 (V006) Page 13 of 68...
- Page 14 Current time Just below that, the current time is displayed (battery data). The time can be shown using the 12-hour or 24-hour clock system. MU_S01 MY22_EN - User Manual S01 MY22 (V006) Page 14 of 68 Copyright© SILENCE Urban Ecomobility...
- Page 15 Speedometer In the middle on the right (under the SILENCE logo), the scooter’s current speed is shown. It can be set to kilometres per hour or miles per hour.
- Page 16 Holding down the INFO button you can switch between: - KM/MI: kilometres/miles travelled. - AVG: average speed for these kilometres/miles (in km/h or mph). Press INFO once to display: ↓ MU_S01 MY22_EN - User Manual S01 MY22 (V006) Page 16 of 68 Copyright© SILENCE Urban Ecomobility...
- Page 17 Exactly the same as TRIP1. Press INFO once to show ODO again. Other messages The bottom of the display shows other messages, such as warnings (scooter charging, side stand out, etc.), or operating errors (which start with “0x…”). If the latter appear, please contact your SILENCE Official Service Centre Buttons...
- Page 18 Change screen brightness In ODO, press SET (press once): you can adjust the backlight brightness of the screen with 5 levels. MU_S01 MY22_EN - User Manual S01 MY22 (V006) Page 18 of 68 Copyright© SILENCE Urban Ecomobility...
- Page 19 (flash), 110 ºC (on). Inverter: 70 ºC (flash), 75 ºC (on). Battery: 50 ºC (flash), 60 ºC (on)/5 ºC (flash), -10 ºC (on) Charge light. It remains on when connected to the mains. Right indicator light. MU_S01 MY22_EN - User Manual S01 MY22 (V006) Page 19 of 68 Copyright© SILENCE Urban Ecomobility...
-
Page 20: Vehicle Control And Driving Elements
Hazard lights switch Lights switch MODE Throttle Indicator lights switch INFO Horn Ignition Power outlet - USB (not available in S01 Basic) Carry hook MU_S01 MY22_EN - User Manual S01 MY22 (V006) Page 20 of 68 Copyright© SILENCE Urban Ecomobility... - Page 21 The regenerative brake is also applied, to a lesser extent, when you stop accelerating (depending on the selected mode). MU_S01 MY22_EN - User Manual S01 MY22 (V006) Page 21 of 68...
- Page 22 Position 2 (switch -> remains in position 2, top): HIGH BEAMS come on. In any case, when the high beams are on, the following blue light will come on in the dashboard: MU_S01 MY22_EN - User Manual S01 MY22 (V006) Page 22 of 68...
- Page 23 Use it carefully, especially the first time. This helps you to manoeuvre for parking or to get out of a parking spot in reverse gear. MU_S01 MY22_EN - User Manual S01 MY22 (V006) Page 23 of 68 Copyright© SILENCE Urban Ecomobility...
- Page 24 To do so, switch them on with the key in and then remove it. After they have been switched off, they can’t be switched on again without putting the key back in. MU_S01 MY22_EN - User Manual S01 MY22 (V006) Page 24 of 68...
- Page 25 ON). Mode selector: this scooter has different driving maps, which can be selected with the MODE button (see DRIVING MODES section). MU_S01 MY22_EN - User Manual S01 MY22 (V006) Page 25 of 68...
-
Page 26: Ignition
“READY” appears on the speedometer and the green drive light (D) comes on. In this position, the key cannot be removed. In addition to the key, the Connected and Plus versions can be switched on via the “My Silence” app, which allows the scooter to be shared without the need for a physical key (although the handlebar must not be blocked). -
Page 27: Lighting
A LED module is situated on the rear of the scooter, which groups the rear side, braking and indicator lights. License plate light Under the rear reflector is the LED module that illuminates the license plate. License plate light MU_S01 MY22_EN - User Manual S01 MY22 (V006) Page 27 of 68 Copyright© SILENCE Urban Ecomobility... - Page 28 (if take the scooter to your nearest you are looking at the scooter’s SILENCE Official Service Centre. headlight). MU_S01 MY22_EN - User Manual S01 MY22 (V006) Page 28 of 68 Copyright© SILENCE Urban Ecomobility...
-
Page 29: Seat - Compartment Under The Seat
The seat is opened 1) with the scooter’s key (see “Seat opening” section). In the S01 Standard, Connected and S01+, it can also be done by 2) braking with both levers, with the scooter turned on and the side stand deployed or 3) via the “My Silence” app (only for S01 Connected and S01+). To close it, lower it and press on the seat until it is locked. - Page 30 When the battery does not make proper contact with the scooter, the information "BATT OUT" appears on the dashboard (once properly connected, the usual information will be displayed): MU_S01 MY22_EN - User Manual S01 MY22 (V006) Page 30 of 68...
- Page 31 Check that the rubber cover is always in place when driving, thus protecting the cylinder and preventing dirt from entering. Otherwise, it could become unusable. MU_S01 MY22_EN - User Manual S01 MY22 (V006) Page 31 of 68 Copyright© SILENCE Urban Ecomobility...
- Page 32 The goal is to protect it while it is disconnected: WARNING: do not put the protective cap on while the scooter is plugged in and never get the connector wet (even with the cap on). MU_S01 MY22_EN - User Manual S01 MY22 (V006) Page 32 of 68...
- Page 33 - F2 (Orange): 5A fuse protecting the power source for lights, horn, etc. (DC/DC 12V output). - F3 (Grey): 2A fuse protecting the DC/DC converter (DC/DC 60V input). - F4 (Grey): 2A fuse protecting the Inverter (MCU). MU_S01 MY22_EN - User Manual S01 MY22 (V006) Page 33 of 68 Copyright© SILENCE Urban Ecomobility...
-
Page 34: Suspensions
(H) and counterclockwise to soften (S). *In any case, the regulation of the preload, carried out by any of these systems, must be done at a SILENCE Official Service Centre. MU_S01 MY22_EN - User Manual S01 MY22 (V006) Page 34 of 68 Copyright©... -
Page 35: Stands
11) Accessories There is a wide range of accessories available to customise your S01, according to your needs: high windshield, load carrying accessories such as top cases, smartphone holder, etc. Check the official website for more information. MU_S01 MY22_EN - User Manual S01 MY22 (V006) Page 35 of 68 Copyright©... -
Page 36: Driving Modes
You can go directly from SPORT to CITY, but to switch to ECO from any mode you must be driving at a speed of less than 55 km/h. In the S01 Basic variant, as it only has ECO and CITY modes, the sequence is simply: C-E-C-E-C-… MU_S01 MY22_EN - User Manual S01 MY22 (V006) Page 36 of 68 Copyright©... - Page 37 Tmot < 105 ºC Tinv < 70 ºC …where SoC refers to the battery charge level and the Ts to the battery, motor or inverter temperatures, respectively. MU_S01 MY22_EN - User Manual S01 MY22 (V006) Page 37 of 68 Copyright© SILENCE Urban Ecomobility...
- Page 38 (to prevent you from abusing this feature, since it should only be used in very specific situations). WARNING: When P2P mode is disabled, it goes into SPORT mode. Take into account the deceleration, as it can be relatively abrupt. MU_S01 MY22_EN - User Manual S01 MY22 (V006) Page 38 of 68...
- Page 39 CITY and ECO mode, without causing any critical element to overheat. If the vehicle is continuously used in SPORT mode (Connected, Standard and Plus variants), the battery pack (BP) could overheat; for this reason, SILENCE has developed a system that optimises the vehicle’s consumption and power to modify its performance while in use and avoid this type of problem.
-
Page 40: My Silence" App (Only For Connected Versions)
“My Silence” app (only for connected versions) If there is one thing that characterises the S01 Connected and S01+, it is the possibility of linking it to your smartphone through the “My Silence” mobile application. The app allows you to be connected to your scooter from anywhere, being able to share it with whoever you want in complete safety. -
Page 41: Technical Specifications
Disc (hydraulic, combined) + Regenerative Diameter Diameter FRONT SUSPENSION REAR SUSPENSION Type Conventional hydraulic telescopic fork (see Front fork) Type Hydraulic monoshock (see Rear monoshock absorber) Length Length MU_S01 MY22_EN - User Manual S01 MY22 (V006) Page 41 of 68 Copyright© SILENCE Urban Ecomobility... - Page 42 Peak power (Basic-Connected-Standard-Plus) 11.8 Power/mass ratio (Basic-Con.-Standard / Plus) 0.063 / 0.068 kW/kg ENERGY EFFICIENCY S01 Basic (BP 4.1 kWh) S01 Connected – Standard – Plus (BP 5.6 kWh) Energy consumption Wh/km Energy consumption Wh/km Environmental regulations Euro 5 Environmental regulations...
-
Page 43: Battery And Charger Specifications
Avoid all contact with water. If there is any indication or you suspect the battery pack has been used improperly or has fallen, do not plug it in. Call a SILENCE Official Service Centre, as this could be LIFE THREATENING. - Page 44 Max. discharge current Onboard 90-240 VAC; 600 W Type of charger 10.2 A Max. internal charger current Standard charge time 5-7 h 7-9 h MU_S01 MY22_EN - User Manual S01 MY22 (V006) Page 44 of 68 Copyright© SILENCE Urban Ecomobility...
-
Page 45: Battery Pack
BATTERY PACK Components The SILENCE S01 model has an innovative removable battery pack which, in addition to its basic internal systems, also has the following elements: Trolley-type removal system This system includes an extendable handle, two wheels and a support base (to use on flat, horizontal surfaces). To learn more about how to remove it from the scooter, see the “Removing the battery”... - Page 46 It will be all REDDISH with a WHITE light moving around the ring while it is still plugged trail moving around the ring while it is still plugged in. MU_S01 MY22_EN - User Manual S01 MY22 (V006) Page 46 of 68 Copyright© SILENCE Urban Ecomobility...
-
Page 47: Energy
Energy IN: On the one hand, you will find the power to charge the battery pack, which at SILENCE we call “Energy IN”. You can charge your battery directly from the mains with a normal socket, or find a charged pack at one of our Battery Swapping Stations (BSS). -
Page 48: Exchanging Batteries (Available Soon)
Anything that needs electric power can be plugged into the inverter that SILENCE has developed to adapt the voltage to 700 W and power everything you use. Simply connect the battery pack to the inverter, which converts the voltage from 60 V to 220 V. It has 2 power points where you can plug in any electronic device or appliance (according to the power limits), wherever you are. -
Page 49: Battery Management System (Bms)
Battery Management System (BMS) This battery has a BMS (Battery Management System), which controls parameters such as temperature and voltage. It was developed by the SILENCE R&D team and plays a very important role in balancing the charge between the different cells, making sure the battery works at an optimal level. - Page 50 Batteries that fall below a certain level of voltage no longer work on their own, meaning they cannot be charged and must be taken to an Official Service Centre. MU_S01 MY22_EN - User Manual S01 MY22 (V006) Page 50 of 68...
-
Page 51: Temperature
To get as precise a reading as possible for the state of charge (SoC, in %), make sure that the battery is charged up to 100 % of its capacity (at least after 3 or 4 partial charging processes). MU_S01 MY22_EN - User Manual S01 MY22 (V006) Page 51 of 68... -
Page 52: Range
Keep the battery at a safe distance from other things such as tables, cabinets, chairs and shelves. • Regularly monitor the battery while charging. MU_S01 MY22_EN - User Manual S01 MY22 (V006) Page 52 of 68 Copyright© SILENCE Urban Ecomobility... -
Page 53: 10) Best Practices To Ensure Correct Battery Maintenance
• If possible, use the internal charging system and try not to use quick chargers continuously. MU_S01 MY22_EN - User Manual S01 MY22 (V006) Page 53 of 68 Copyright© SILENCE Urban Ecomobility... -
Page 54: 11) Safety Information Regarding The Battery
THE VEHICLE CANNOT EXPLODE, SO THERE IS NO PROBLEM IN TRANSPORTING IT TO A SAFE LOCATION. QUALIFIED AUTHORISED STAFF YOU MUST READ THE SERVICE MANUAL BEFORE REPAIRING OR REPLACING THE BATTERY. MU_S01 MY22_EN - User Manual S01 MY22 (V006) Page 54 of 68 Copyright© SILENCE Urban Ecomobility... - Page 55 Water if the scooter/battery is not connected to the mains or near other batteries. Specific hazards: cells overheating due to external heat sources or improper use. MU_S01 MY22_EN - User Manual S01 MY22 (V006) Page 55 of 68 Copyright© SILENCE Urban Ecomobility...
-
Page 56: Disposal And Recycling
Recycling the battery pack S01 battery packs that have reached the end of their service life must be disposed of in compliance with the applicable regulations and always respecting the environment. The Law prohibits disposing of battery packs in domestic waste containers. The pack must be deposited at an authorised SILENCE Service Centre to ensure it is recycled properly, reducing its environmental impact. -
Page 57: Maintenance Schedule
DISCLAIMERS - These instructions were drafted for owners that will only use the S01 in urban areas. If you use it for a purpose other than that for which it was manufactured or constantly drive at a high speed or in overly damp or dusty conditions, you will have to service the scooter more often. Always read the instructions before starting and make sure you have all the materials you need and a clear idea of what you are going to do. -
Page 58: Operations And Frequency
When you dry your scooter, always use a clean and smooth cloth. Dirty or rough cloths can scratch the flat, shiny surfaces, while clean and smooth ones will reduce scratching. Never use hard cloths or sponges. MU_S01 MY22_EN - User Manual S01 MY22 (V006) Page 58 of 68... -
Page 59: Storage
Replace any parts that don’t work properly or have been damaged before driving. When the speedometer lights do not work properly, they start flashing more quickly to indicate that there is some sort of problem. MU_S01 MY22_EN - User Manual S01 MY22 (V006) Page 59 of 68... - Page 60 Levels should always be checked and the fluid must be changed every 2 years. If there is not enough, add more DOT4 brake fluid. MU_S01 MY22_EN - User Manual S01 MY22 (V006) Page 60 of 68 Copyright© SILENCE Urban Ecomobility...
- Page 61 Before the “D” icon lights up (scooter ready to drive), make sure that the braking system is working properly: squeeze the left and right brake levers at the same time to make sure there is resistance to the pressure on both. MU_S01 MY22_EN - User Manual S01 MY22 (V006) Page 61 of 68...
- Page 62 Battery anchoring Check the correct fastening of the battery, verifying that when pulling it firmly it does not come out of the scooter. MU_S01 MY22_EN - User Manual S01 MY22 (V006) Page 62 of 68 Copyright© SILENCE Urban Ecomobility...
-
Page 63: Troubleshooting
All of our scooters are examined carefully before they are sent to our dealer. Incidents may appear even after the scooter is inspected. The following table offers guidelines for identifying the problem and, if possible, repairing it yourself. If you cannot solve the problem, take the scooter to the SILENCE Official Service Centre, so it can be inspected and repaired if needed. -
Page 64: Vehicle And Battery Warranty
This document is the basis for processing any warranty claims (warranty claims cannot be processed if the documents are not filled in properly or are incomplete): VIN (Vehicle Identification Number) …………………………………….. Date of Delivery Full name……………………………………………………………………………………………. Address………………………………………………………………………………………………. City/Town……………………………………………………………………………………………. Postcode…………………………………………………………………………………………….. Dealer Number Country……………………………………………………………………………………………… Telephone / Mobile phone………………………………………………………………… e-mail………………………………………………………………………………………………… MU_S01 MY22_EN - User Manual S01 MY22 (V006) Page 64 of 68 Copyright© SILENCE Urban Ecomobility... -
Page 65: Warranty Terms And Conditions (Grounds For Voiding The Warranty)
The battery must be charged fully once every 30 days to ensure the validity of the warranty. TECHNICAL NOTICE: Silence vehicles feature an internal communication bus (CAN bus), which is used by all electronic devices to communicate and ensure proper functioning of the vehicle: Electronic Control Unit (ECU), Battery Management System (BMS), Motor Control Unit (MCU), Telematics Control Unit (TCU), among others. -
Page 66: Inspection: Scooter And Battery
Inspection: Scooter and Battery Each S01 must pass a series of regular inspections, based on the kilometres travelled or at least once a year (if the scooter has not travelled the kilometres necessary to require an inspection within a year). The same is true for the battery packs (“be”), which have their own inspection intervals. For batteries purchased with the scooter, the inspections will be the same as for the scooter and must be done at the same time. - Page 67 ../../.....km +1 year ↓ +5,000 km ↓ NEXT INSPECTION BEFORE: ../../.....km must be greater than ↓ must be greater than ↓ ......... MU_S01 MY22_EN - User Manual S01 MY22 (V006) Page 67 of 68 Copyright© SILENCE Urban Ecomobility...
- Page 68 MU_S01 MY22_EN - User Manual S01 MY22 (V006) Page 68 of 68 Copyright© SILENCE Urban Ecomobility...
