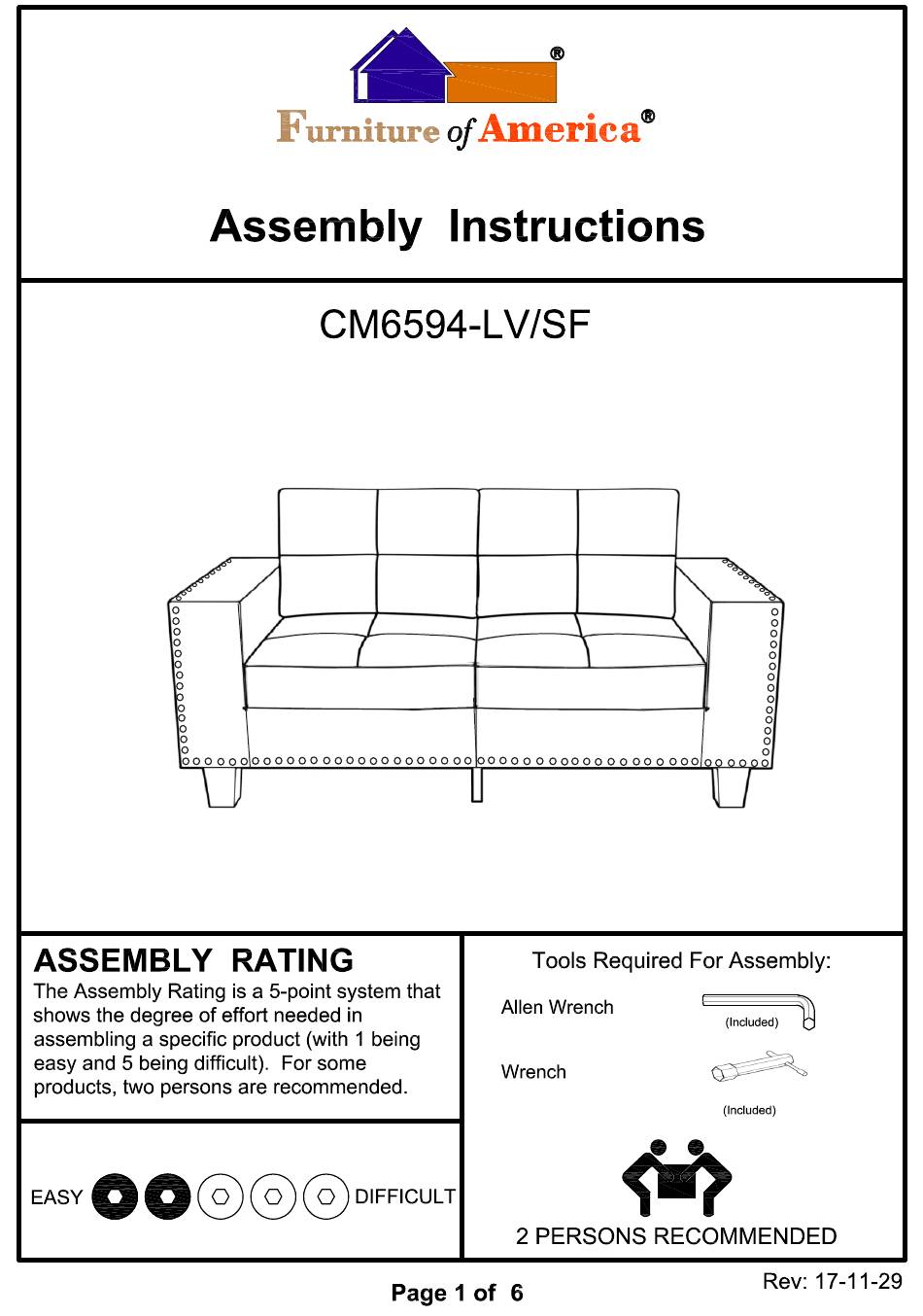

- Page 1 For more information contact our team: service.ec@foagroup.com...
- Page 4 Attach threaded bolts (#A) to the holes of the backrest (#3).
- Page 5 Align and attach backrests (#3) to the holes of the left and right seat frames (#1,2). Insert flat washer (#D), then lock washer (#C) onto the threaded bolts (#A) that appear at the bottom of the seat frames (#1,2). Secure by using hex nut (#B). Prepare 4 bolts assembly by inserting lock washer (#C), then flat washer (#D) onto bolts (#F,E).
- Page 6 Prepare 4 bolts assembly by inserting lock washer (#H), then flat washer (#I) onto bolts (#G). Align support legs (#8) to the holes at the middle of the seat frame, then secure by using bolts (#G). Insert washers (#7) to the bolts of the legs (#6). Attach legs (#6) to the holes of the seat frame.
