Summary of Contents for Delta Electronics UNOnext

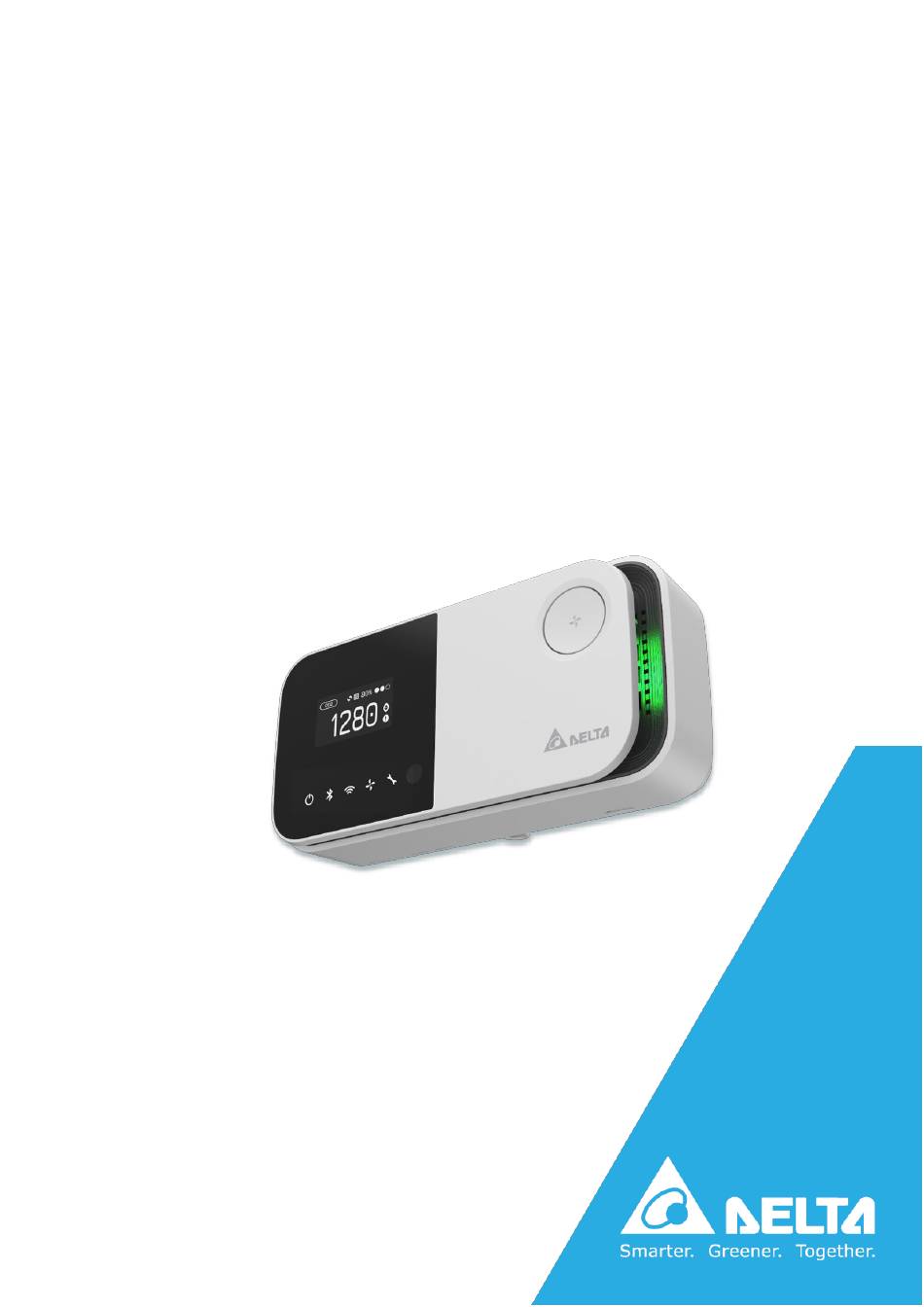

  • Page 1 Delta Electronics, Inc. UNOnext Troubleshooting: RS485...
  • Page 2 Following the documents: UNOnext quick start guide and UNOnext Modbus RTU the System (BMS) system retrieves the UNOnext data via RS485 interface. If there is any trouble, please check the items below to verify the environment and device settings in the RS485 bus. All referred documents can be found...
  • Page 3 1. Check for correct power from the 9-24V DC input or adapter is correct. If the power supply is normal and the UNOnext hardware is normal, the power led is on. If the power supply is normal but the power led is not on, please send UNOnext back for repair.
  • Page 4 1. Check the Modbus RTU slave address settings. The Modbus RTU slave address is set by DIP switch from [2] to [5] in the back of UNOnext. The DIP definition corresponding to the slave address is shown as below table.
  • Page 5 If the problem is still not solved after checking and modifying the above device settings, please try to restore the factory settings. METHOD: After booting, press the filter reset key three times duration one second to execute factory reset. After factory reset, all settings will be cleaned. Note.
