Garmin NavTalk Pilot Installation Manual
Dual-polarization antenna
Hide thumbs
Also See for NavTalk Pilot:
- Pilot's manual & reference (176 pages) ,
- Specification (2 pages)
Related Manuals for Garmin NavTalk Pilot
Summary of Contents for Garmin NavTalk Pilot

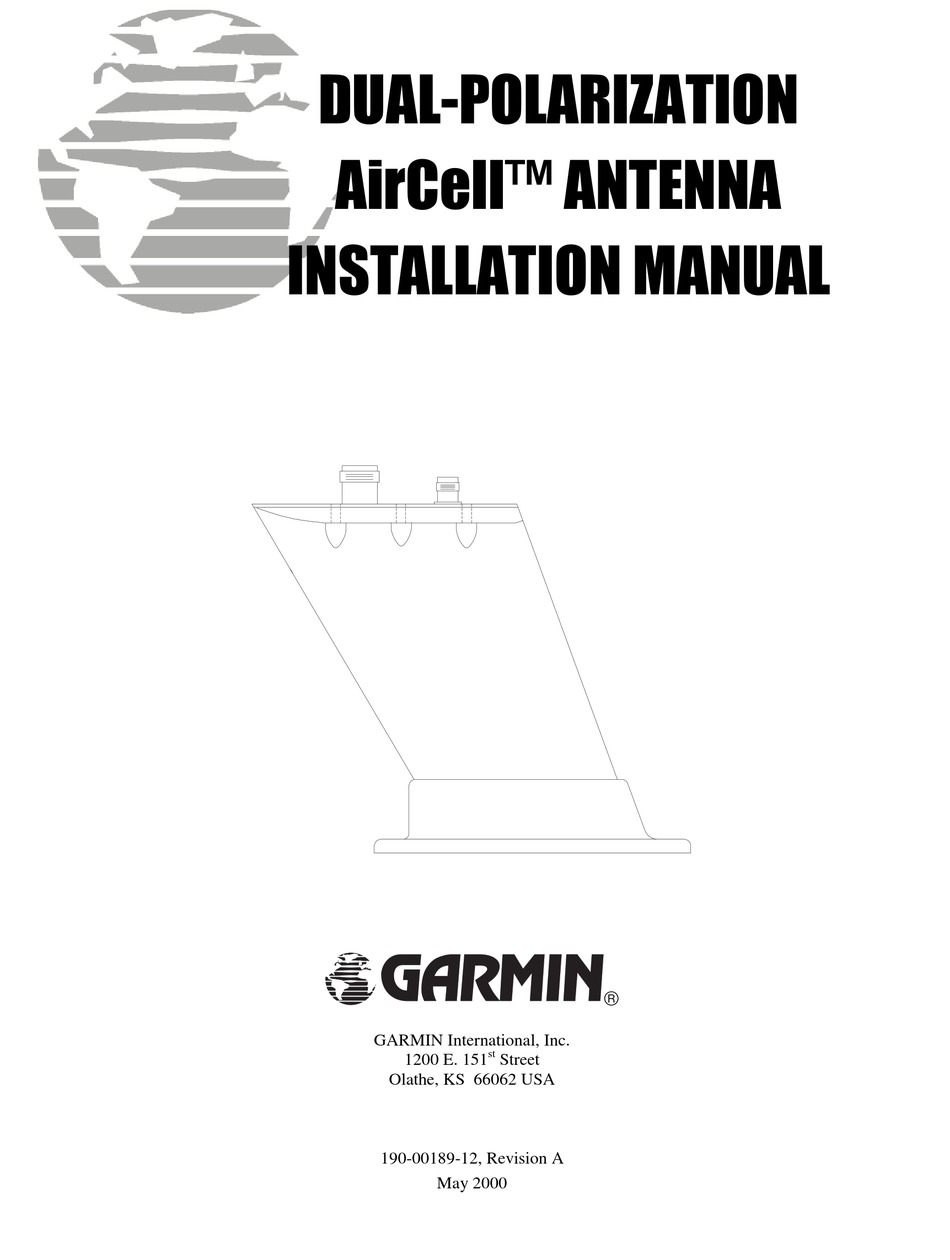

- Page 1 GARMIN International, Inc. 1200 E. 151 Street Olathe, KS 66062 USA 190-00189-12, Revision A May 2000...
- Page 2 GARMIN Corporation. GARMIN Corporation hereby grants permission to download a single copy of this manual and of any revision to this manual onto a hard drive or other electronic storage...
-
Page 3: Table Of Contents
1. GENERAL DESCRIPTION 1.1 INTRODUCTION... 1 1.2 EQUIPMENT DESCRIPTION ... 1 1.3 TECHNICAL SPECIFICATIONS ... 1 1.4 LICENSE REQUIREMENTS ... 1 1.5 CERTIFICATION... 1 1.6 LIMITED WARRANTY... 1 2. INSTALLATION 2.1 INTRODUCTION... 2 2.2 ANTENNA PLACEMENT CONSIDERATIONS... 2 2.3 CABLING AND WIRING... 2 3. -
Page 4: General Description
A copy of the original sales receipt is required as the proof of purchase for warranty repairs. GARMIN retains the exclusive right to repair or replace the unit or software or offer a full refund of the purchase price at its sole discretion. SUCH REMEDY SHALL BE YOUR SOLE AND EXCLUSIVE REMEDY FOR ANY BREACH OF WARRANTY. -
Page 5: Installation
Do not route the antenna cables near any ADF antenna cables. The FCC has imposed strict requirements on the performance of the NavTalk Pilot System to prevent interference with ground cellular networks. To maximize the range of the system, prevent interference with ground cellular, and maintain the best reception, AirCell requires that finished coaxial cable assemblies are tested for loss and VSWR. - Page 6 The three recommended coaxial cable vendors are PIC, ECS, and EMTEQ. How to Determine Cable Part Numbers Select a location for the NavTalk Pilot transceiver. From this location, determine the desired connection location to the cradle cable. Determine the location for the antenna. The antenna should be installed on the bottom of the aircraft on a level location, not on an upslope.
-
Page 7: Installation Procedure
Do not use construction grade RTV sealant or sealants containing acetic acid. These sealants may damage the electrical connections to the antenna. Use of these type sealants may void the antenna warranty. DUAL-POLARIZATION AirCell™ ANTENNA INSTALLATION MANUAL P/N 190-00189-12 GARMIN P/N 010-10278-00 NOTE NOTE... -
Page 8: Cable Installation
3.5. CABLE INSTALLATION Route the coaxial cable to the NavTalk Pilot Adapter mounting location keeping in mind the recommendations of Section 2. Secure the cable in accordance with good aviation practice. Trim the coaxial cable to the desired length and install the TNC connector per the cabling instructions on Figure 2. -
Page 9: Outline Drawings
3.6. OUTLINE DRAWINGS Figure 3. Dual-polarization AirCell Antenna Outline Drawing Figure 4. Antenna Doubler Plate Outline Drawing DUAL-POLARIZATION AirCell™ ANTENNA INSTALLATION MANUAL Page 6 P/N 190-00189-12 Rev. A... -
Page 10: Appendix A. Certification Documents
APPENDIX A. CERTIFICATION DOCUMENTS A.1. CONTINUED AIRWORTHINESS Maintenance of the Dual-polarization AirCell Antenna is “on condition” only. Periodic maintenance of the antenna is not required. DUAL-POLARIZATION AirCell™ ANTENNA INSTALLATION MANUAL Page 7 P/N 190-00189-12 Rev. A...
