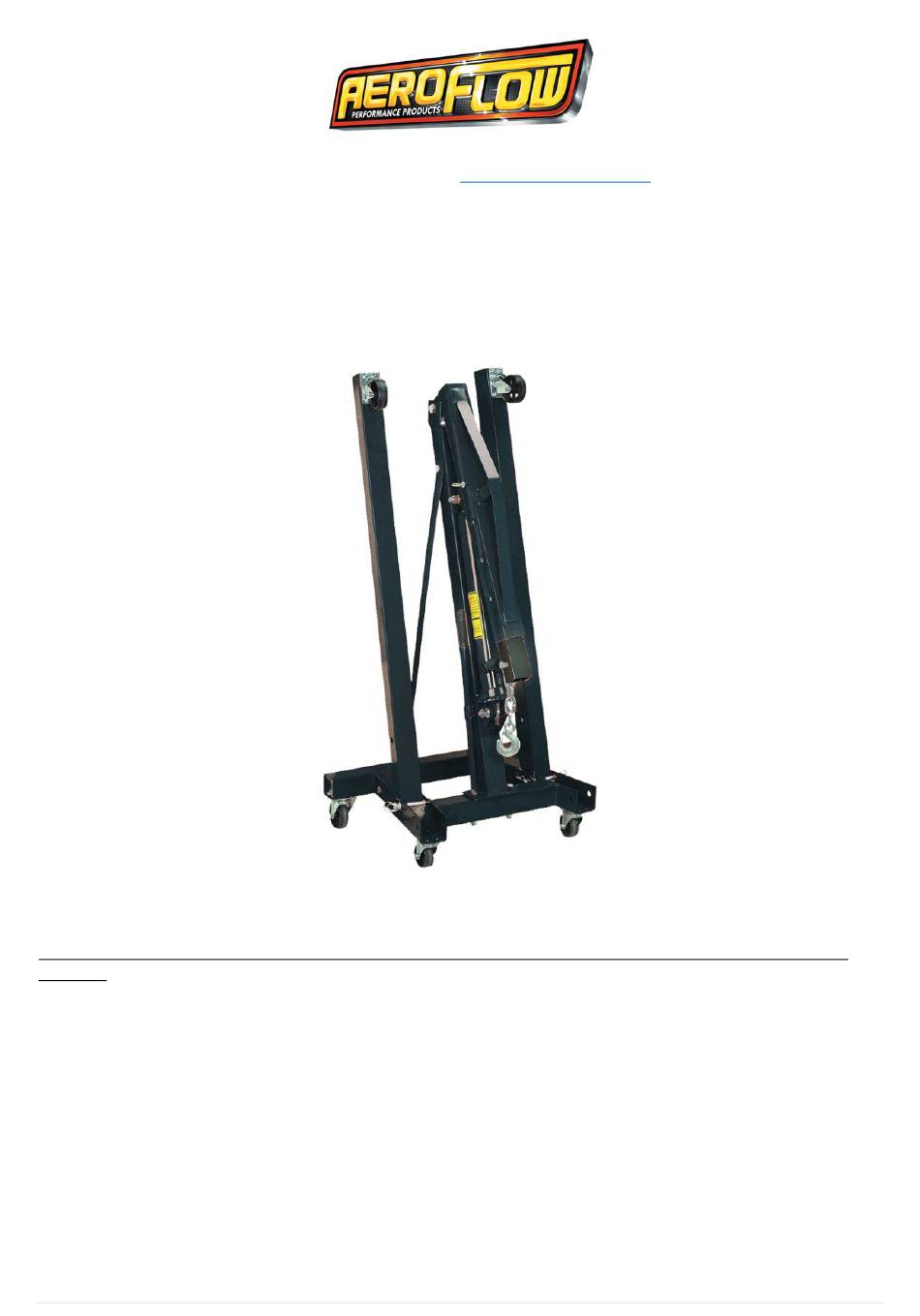

INSTRUCTION MANUAL
AEROFLOW PERFORMANCE
HEAVY DUTY FOLDABLE ENGINE HOIST
WARNING!
BEFORE PROCEEDING WITH INSTRUCTIONS PLEASE READ CAREFULLY AND UNDERSTAND BEFORE ATTEMPTING TO USE THIS
PRODUCT.
INTRODUCTION
Congratulations on your purchase of the Aeroflow Performance Heavy Duty Foldable Engine Hoist. Aeroflow Performance
products cannot and will not be responsible for any damage, or other conditions resulting from misapplication of the parts
described herein. However, it is our intention to provide the best possible products for our customer, products that perform
properly and satisfy your expectations. Should you have any questions? Please call technical support at +61 2 8825 1900 and
have the product part number on hand when calling.
Got an engine bay which needs to be emptied, this two-tonne professional hydraulic engine crane from Aeroflow Performance
can do the job perfectly. Perfect for use by both professionals and amateur mechanics at the workshop or at home. With an all-
steel, black powder-coated construction and integrated hydraulic ram that can lift up to 2000kg (4409lbs). Featuring a maximum
boom height of 2.3 metres and a reach of 1480mm an engine can be lifted easily out of its bay. Once the engine is free of its
mounts, Six of the 360-degree swivel castor wheels made from robust cast steel allow you to move it easily, and the whole
assembly folds up nice and compact for storage when you're done.
1 |
P a g e

Advertisement

loading
Need help?

Need help?

Do you have a question about the PERFORMANCE and is the answer not in the manual?

Questions and answers

Related Manuals for AeroFlow PERFORMANCE

Summary of Contents for AeroFlow PERFORMANCE

  • Page 1 Got an engine bay which needs to be emptied, this two-tonne professional hydraulic engine crane from Aeroflow Performance can do the job perfectly. Perfect for use by both professionals and amateur mechanics at the workshop or at home. With an all- steel, black powder-coated construction and integrated hydraulic ram that can lift up to 2000kg (4409lbs).
  • Page 2 Length of Arm in each position hole: Position 1 – 940mm (37”) Position 2 – 1120mm (44”) Position 3 – 1300mm (51-3/16”) Position 4 – 1480mm (58-17/64”) Load Rating Specifications for each arm position hole: Position 1 – 2000kg (4409lbs) Position 2 –...

  • Page 3: Parts Description

    Tools Required: Phillips Head screwdriver, 2x 14mm Spanner or socket, 2x 22mm Spanner or socket, 2x 24 Spanner or socket, PARTS DESCRIPTION PARTS DESCRIPTION BASE M16(UHL - 110mm) BOLTS M14 NUTS ARM EXTENSIONS M12(UHL - 100mm) BOLTS M8 (UHL - 16mm) BOLTS M16 NUTS 3.5”...
  • Page 4 INSTRUCTIONS 1. All wheels use M8 bolts and nuts (4-6). Attach a 3.5” swivel wheel (5) to a leg (7), then repeat. P a g e...
  • Page 5 2. With the counter sunk Phillip heads (4-6) attach the 3” swivel wheels (23) to the front of the base (1). 3. Add the remaining wheels (5) to the rear of the base (1) P a g e...
  • Page 6 4. Slide the Legs (7) into the base (1) and lock in place with the Pins (3) and R clips 5. Add the pillar (9) to the base (1) and secure with the hardware (11-2). Don’t fully tighten down as it may be hard to secure the supports.
  • Page 7 6. The supports (10) can now be attached to the pillar (9) and base (1) with the hardware (11-2) 7. With hardware (15-8) secure the extendable arm (14) in the main arm (12) at the 2-tonne hole for assembly and storage. P a g e...
  • Page 8 8. Lift the main arm (12) into place on the pillar (9) and secure with hardware (13-16) 9. Place the hydraulic jack (19) into the pillar (9) with hardware (22-16). Secure the top of the jack (19) to the main arm (12) with hardware (20-16). 22-16 P a g e...
  • Page 9 10. Slide the hook (17) into the extendable arm (14) via the slot on the underside and lock with hardware (18-2). Slide the handle (21) in the jack position. P a g e...
  • Page 10 NOTE SOMETIMES, DURING SHIPMENT AND HANDLING, AIR GETS INTO THE HYDRAULIC SYSTEM, WHICH MAY CAUSE POOR LIFTING PERFORMANCE. PURGE ANY AIR IN THE HYDRAULIC SYSTEM BY FULLY OPENING RELEASE VALVE (TURN VALVE COUNTER-CLOCKWISE) AND OPERATE PUMP HANDLE RAPIDLY SEVERAL TIMES.
