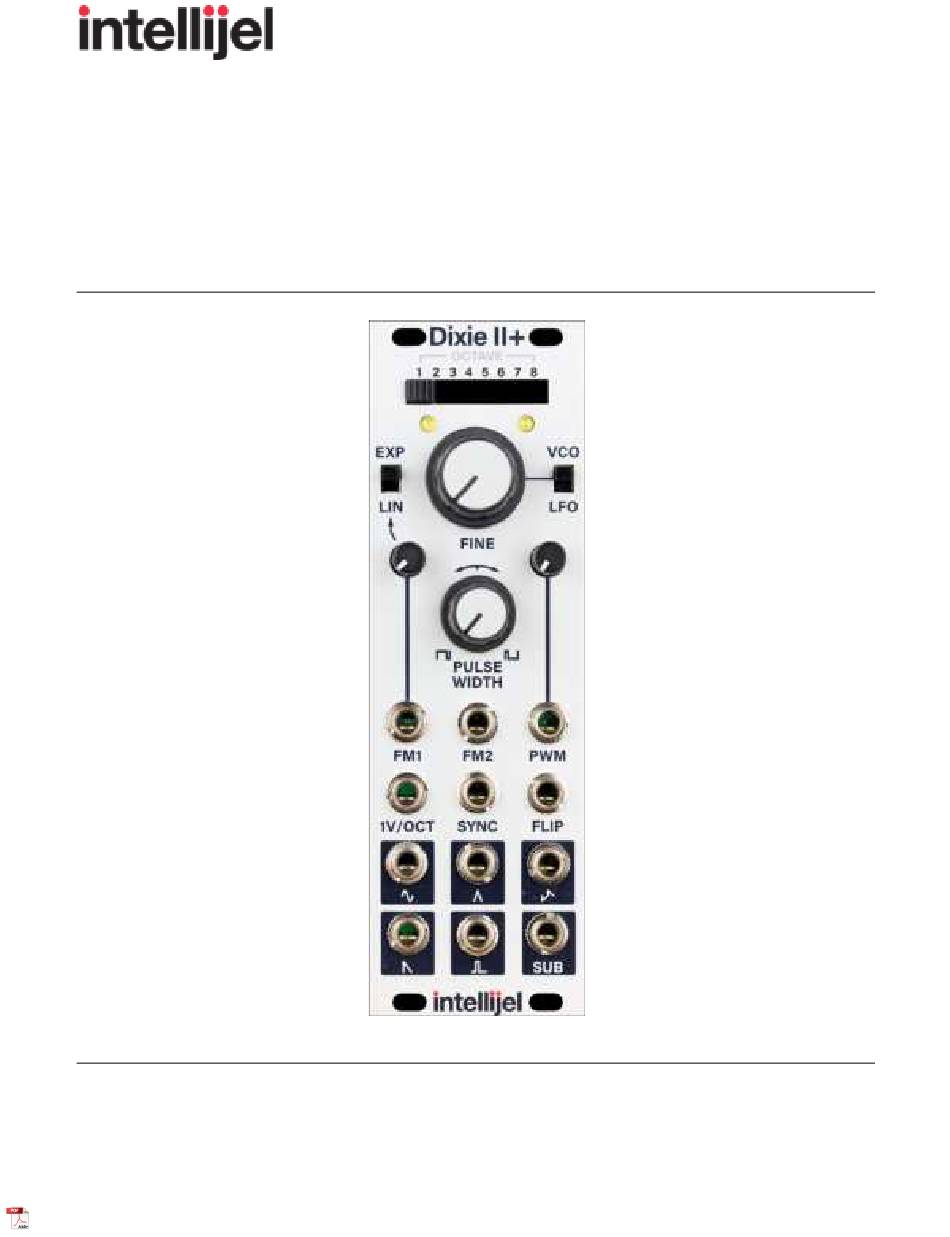

- Page 1 Dixie II+ Full-Featured Triangle Core Analog VCO/LFO Manual (English) Revision: 2021.08.01...
-
Page 2: Table Of Contents
TABLE OF CONTENTS COMPLIANCE INSTALLATION Installing Your Module OVERVIEW Front Panel Controls Inputs & Outputs TECHNICAL SPECIFICATIONS Dixie II+ Manual... -
Page 3: Compliance
(2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by Intellijel Designs, Inc. could void the user’s authority to operate the equipment. Any digital equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. -
Page 4: Installation
INSTALLATION Intellijel Eurorack modules are designed to be used with a Eurorack-compatible case and power supply. We recommend you use Intellijel cases and power supplies. Before installing a new module in your case, you must ensure your power supply has a free power header and sufficient available capacity to power the module: ●... - Page 5 Eurorack case. Ensure the red stripe on the cable lines up with the -12V pins on the bus board. On Intellijel power supplies the pins are labelled with the label “-12V” and a thick white stripe: If you are using another manufacturer’s power...
-
Page 6: Overview
OVERVIEW The Dixie II+ is a fully analogue triangle-core oscillator capable of generating five different waveforms plus a square wave sub-oscillator. Front Panel Controls OCTAVE - This 8-position switch is used to set the coarse tuning of the oscillator. Each position shifts the tuning by one octave. -
Page 7: Inputs & Outputs
PULSE WIDTH - This knob sets the base pulse width of the PULSE output. When fully counter clockwise the output will produce a narrow 10% duty cycle pulse, when fully clockwise it produces a pulse with a 90% duty cycle. A square wave is produced with the knob in the 12 o’clock position. -
Page 8: Technical Specifications
TECHNICAL SPECIFICATIONS Width 8 hp Maximum Depth 40 mm Current Draw 60 mA @ +12V 70 mA @ -12V Dixie II+ Manual...
