- Page 1 Multi FX 1U Manual Multi FX 1U Clockable Delay, Reverb and Chorus Effect Manual Revision: 2020.03.02 ...
-
Page 2: Table Of Contents
Multi FX 1U Manual Table of Contents Table of Contents Compliance Installation Before Your Start Installing Your Module Front Panel Controls Inputs & Outputs Technical Specifications Page 1... -
Page 3: Compliance
(2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by Intellijel Designs, Inc. could void the user’s authority to operate the equipment. Any digital equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. -
Page 4: Installation
Before Your Start Intellijel Eurorack modules are designed to be used with a Eurorack-compatible case and power supply. We recommend you use Intellijel cases and power supplies. Before installing a new module in your case, you must ensure your power supply has a free power header and sufficient available capacity to power the module: ●... -
Page 5: Installing Your Module
Eurorack case. Ensure the red stripe on the cable lines up with the -12V pins on the bus board. On Intellijel power supplies the pins are labelled with the label “-12V” and a thick white stripe: If you are using another manufacturer’s power supply, check their documentation for instructions. - Page 6 Multi FX 1U Manual Once connected, the cabling between the module and power supply should resemble the picture below: Before reconnecting power and turning on your modular system, double check that the ribbon cable is fully seated on both ends and that all the pins are correctly aligned.
-
Page 7: Front Panel

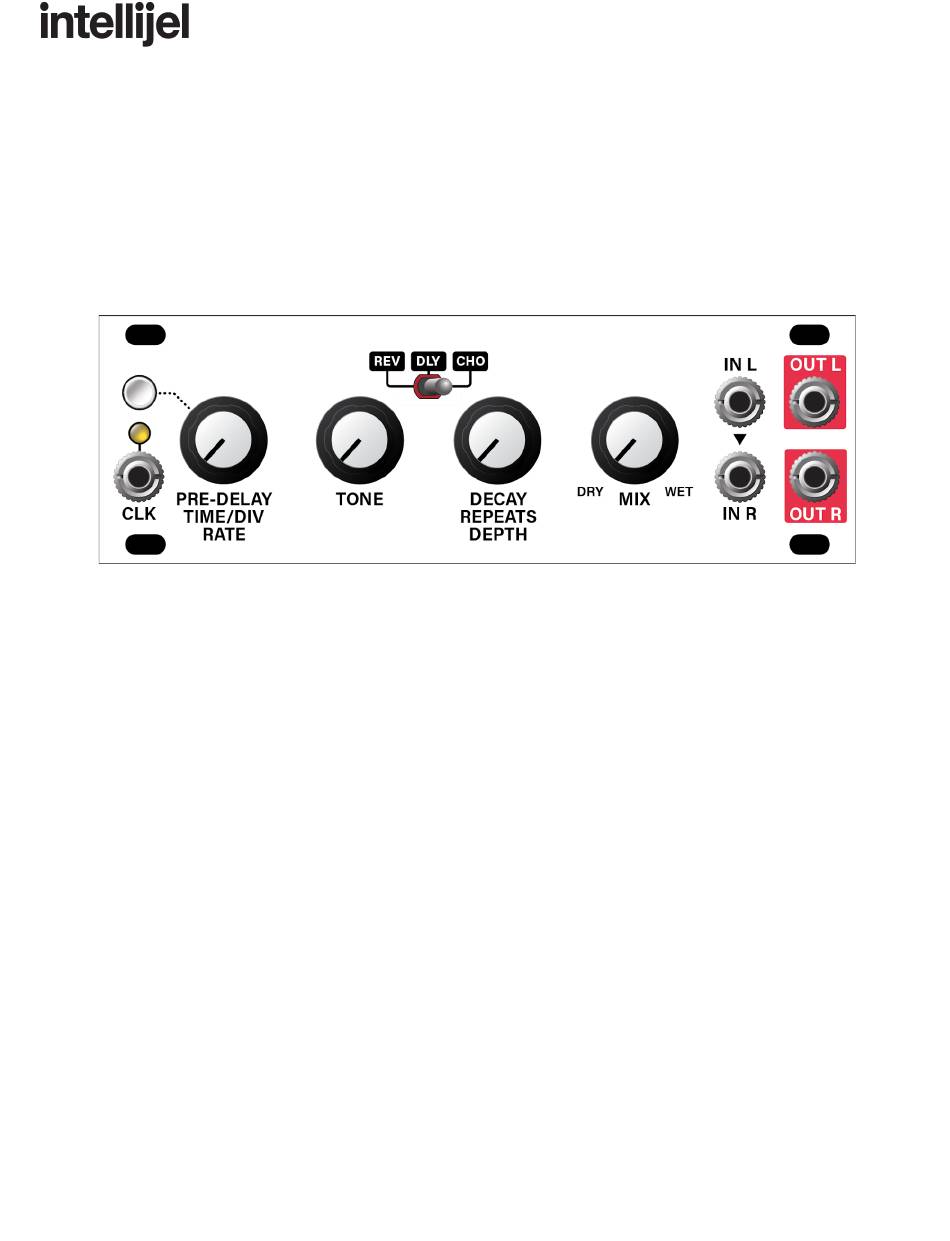

Multi FX 1U Manual Front Panel Controls A. FX TYPE switch - 3-way switch determines whether Multi FX functions as a Reverb ( REV ), Delay ( DLY ) or Chorus ( CHO ). B. TIME knob - Adjusts the appropriate time-based parameter for either the REV (reverb),... - Page 8 In this situation, the button is unlit, but blinks at half-brightness every quarter note. The CLK LED also blinks when the CLK input is used). Multi FX 1U will not operate in un-clocked mode if the CLK input is used.
- Page 9 Multi FX 1U Manual D. TONE Knob - This knob is active for all three modes, and it controls a simple low pass filter. Turning it counterclockwise “dulls” the tone by decreasing the high frequency content. This can decrease the perceived ‘liveliness’ in the reverb, or allow for increasingly duller ‘taps’...
-
Page 10: Inputs & Outputs
OUT L and OUT R jacks to a mixer (such as an Intellijel Mixup module), and summing the channels to mono that way. Because of the phasing offsets applied to the left and right outputs, this method will result in a richer, more pleasing mono chorusing effect. -
Page 11: Technical Specifications
Multi FX 1U Manual MULTI FX 1U is currently set to un-clocked mode, patching into the CLK jack will automatically turn clock mode on. The actual delay time is based on this input as well as the clock division set by the TIME/DIV knob.
