Hanna Instruments Pool Line HI9310014 Instruction Manual

Ph/mv precisionsimulator
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
HI9310014
pH/mV Precision Simulator

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Pool Line HI9310014 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hanna Instruments Pool Line HI9310014

Summary of Contents for Hanna Instruments Pool Line HI9310014

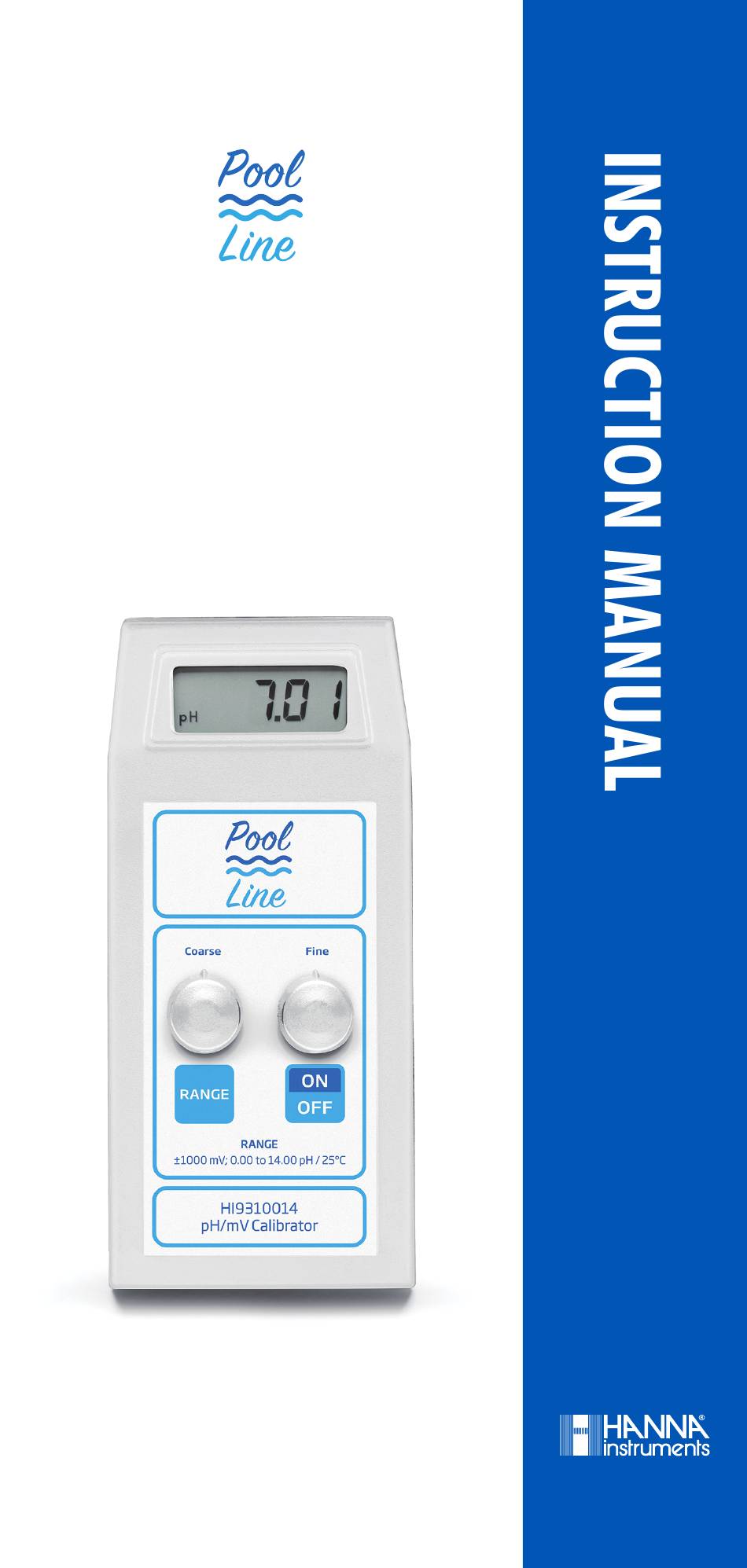

  • Page 1 HI9310014 pH/mV Precision Simulator...
  • Page 2 All rights are reserved. Reproduction in whole or in part is prohibited without the written consent of the copyright owner, Hanna Instruments Inc., Woonsocket, Rhode Island, 02895, USA.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS 1. PRELIMINARY EXAMINATION .............4 2. GENERAL DESCRIPTION & INTENDED USE ........4 3. FUNCTIONAL DESCRIPTION ............5 4. SPECIFICATIONS ...............5 5. pH CALIBRATION ..............6 6. mV (ORP) CALIBRATION ............7 7. pH / TEMPERATURE TABLE ............8 8. BATTERY REPLACEMENT ............9 9.

  • Page 4: Preliminary Examination

    2. GENERAL DESCRIPTION & INTENDED USE HI9310014 is a portable pH and mV simulator designed for calibrating pH and mV (ORP) meters, part of Hanna Instruments pool‑line family. When connected to a meter’s input socket, by turning the dials, it simulates the pH readings from 0 to 14 pH, in 0.01 steps.

  • Page 5: Functional Description

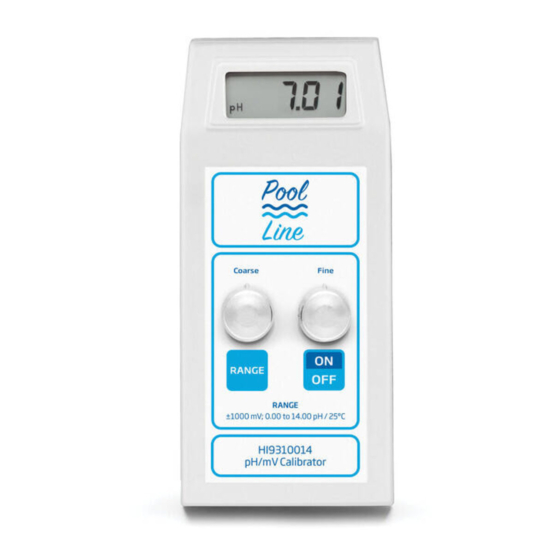

    3. FUNCTIONAL DESCRIPTION 1. BNC socket 2. Liquid Crystal Display 3. pH and mV coarse‑setting knob 4. pH and mV fine‑setting knob 5. RANGE key 6. ON/OFF key 4. SPECIFICATIONS 0.00 to 14.00 pH Range ‑1000 to 1000 mV Resolution 0.01 pH / 1 mV Accuracy (@20 °C) ±0.01 pH / 1 mV...

  • Page 6: Ph Calibration

    5. pH CALIBRATION 1. Connect the simulator to the pH meter using the supplied HI7858/1 cable. 2. Manually set the temperature compensation of the meter to 25 °C. 3. Turn on the simulator. 4. Press RANGE key to select pH mode. 5.

  • Page 7: Mv (Orp) Calibration

    6. mV (ORP) CALIBRATION 1. Connect the simulator to the ORP meter using the supplied HI7858/1 cable. Note: Temperature compensation does not apply to ORP (mV) readings. 2. Turn on the simulator. 3. Press RANGE key to select mV mode. 4.

  • Page 8: Ph / Temperature Table

    7. pH / TEMPERATURE TABLE Temperature has an effect on pH. The calibration buffer solutions are affected by temperature changes to a lesser degree than normal solutions (see table). Note: The pH simulation is not affected by this chemical behavior. TEMP.

  • Page 9: Battery Replacement

    8. BATTERY REPLACEMENT HI9310014 is supplied with a 9 V battery that lasts for approximately 500 hours of continuous use. When the battery capacity is low, two additional decimal points are displayed. Note: Only use the battery type specified in this instruction manual.

  • Page 10: Certification

    Damage due to accidents, misuse, tampering or lack of prescribed maintenance is not covered. If service is required, contact your local Hanna Instruments Office. If under warranty, report the model number, date of purchase, serial number (see engraved on the back of the instrument) and the nature of the problem.
  • Page 11 Hanna Instruments reserves the right to modify the design, construction or appearance of its products without advance notice.
  • Page 12 World Headquarters Hanna Instruments Inc. Highland Industrial Park 584 Park East Drive Woonsocket, RI 02895 USA www.hannainst.com MAN9310014 Printed in ROMANIA...
