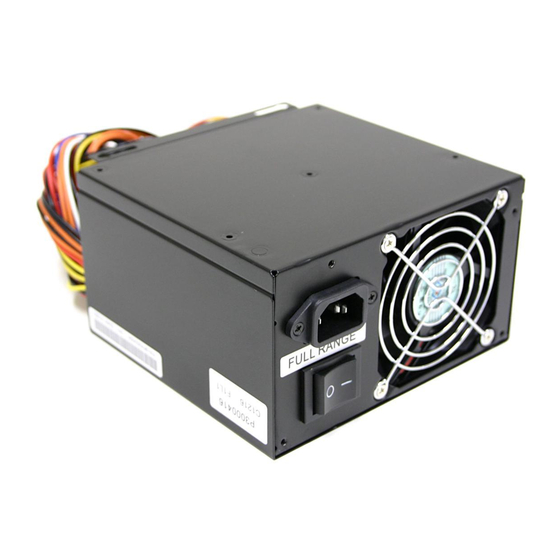

- Page 1 All manuals and user guides at all-guides.com POWER SUPPLY POWER SUPPLY User ’ s Manual (English Edition) Models : ZM300B-APS ZM400B-APS ATX Ver. 2.03 / ATX 12V Ver. 1.3 Please read this manual first before using the product.
- Page 2 Please double-check the installation. Please read this manual first before using the product. *For more information on the product, please visit our website at www.zalman.co.kr. - 1 -...
- Page 3 1) Noise Level (dB) of ZM300B-APS 2) Noise Level (dB) of ZM400B-APS ※ The above results show that the Zalman product operates in ‘Noiseless’ or ‘Silent’ level when the power supply's internal temperature is kept below 56℃ and those were obtained in compliance with the 2nd Revision of ISO7779, an international standard for noise level measurement.
- Page 4 Conditions : Each DC output had a 0.1μ F ceramic capacitor and a 10μ F electrolytic capacitor attached as the bypass and the oscilloscope (input impedance 1MΩ) measured the waveforms at 20MHz frequency bandwidth. The waveforms may differ with varying measurement conditions. *For more information on the product, please visit our website at www.zalman.co.kr. - 3 -...
- Page 5 ▣ Operating Conditions Operation 0℃ ~ 50℃ Ambient Temperature Storage -20℃ ~ 80℃ Operation 5% RH ~ 95% RH Ambient Humidity Storage 5% RH ~ 95% RH *For more information on the product, please visit our website at www.zalman.co.kr. - 4 -...
- Page 6 (ZM-MC1) How to Use The Muti-connector, included free in every Zalman power supply, is used to supply +5V or +12V power to any additional fans that a user may wish to install. Connect it to the power supply’ s output connector (P9) and simply attach the fans to the 3-pin connectors at the other end.
- Page 7 PFC circuit. This circuit has a theoretical power factor of over 95%, accepts a full range (90VAC ~ 260VAC) of AC input, and reduces total harmonics noticeably. However, it needs a complicated EMI filter and an input source circuit, and is costly to build. Zalman Tech’s ATX /ATX12V power supply uses this type of PFC. 2) Passive PFC This type of PFC uses passive elements such as a ferrite inductor on the input source to create a countering reactance.
- Page 8 6. Product Warranty (International) Thank you for purchasing Zalman Tech’s product. Warranty - If this product is not free from defects, Zalman Tech guarantees that it can be exchanged for a functioning one within one (1) year from the time of purchase.
