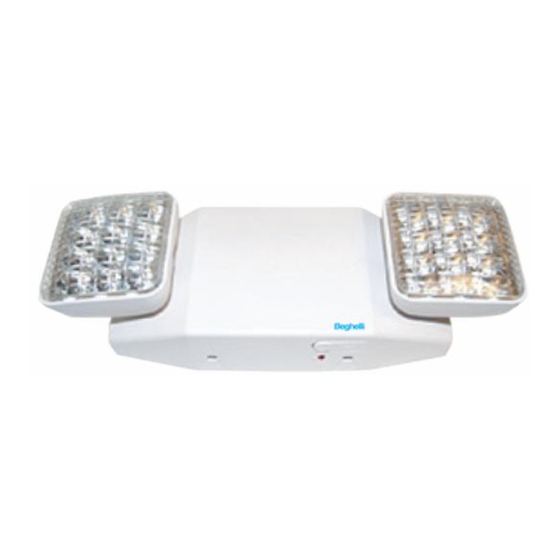

Beghelli PACO-T20 Instructions

When using electrical equipment, basic safety precautions should always be followed including the following:
READ AND FOLLOW ALL SAFETY INSTRUCTIONS
1.
2.
Do not use outdoors.
3.
Equipment should be mounted in locations and at heights where unauthorized personnel will not readily subject it to
4.
tampering.
5.
Do not mount near gas or electric heaters.
6.
The use of accessory equipment is not recommended by Beghelli Inc., and may cause an unsafe condition, and will
void the unit's warranty.
Do not use this equipment for other than its intended purpose.
Servicing of this equipment should be performed by qualified service personnel.
Disconnect AC power before servicing.
SAVE THESE INSTRUCTIONS!
FLEXIBLE CONDUIT ONLY
J-Box Mounting:
1. Feed fixture leads through main bottom case an d connecct
AC power supply (Fig A).
2. Connect wires through J-Box. Main bottom case on J-Box
and secure with screws.
3. Connect battery only after continuous AC power can be
provided to the unit (Fig. B).
4. Align snaps and push housing directly onto main bottom
case (Fig. C). Apply continuous AC power and press "TEST"
button to check light.
NOTE: To appear outside blue sleeve of terminal before
connecting.
Fig. A ( J-Box)
Beghelli U.S.A., 3250 Corporate Way, Miramar, Florida, Tel: (800) 726-4316 Tel: (954) 442-6600 Fax: (954) 442-6677
INSTRUCTIONS

IMPORTANT SAFEGUARDS

INSTALLATION

PLUG IN
PACO-T20 (PEH-T20)
Conduit:
1. Secure main bottom case to wall surface. Route wires
through hole in conduit flange and make conduit connection.
2. Connect battery only after continuous AC power can be
provided to the unit (Fig. B).
3. Align snaps and push housing directly onto main bottom
case (Fig. C). Apply continuous AC power and press
"TEST" button to check light.
WARNING: Unused wires must be capped using enclosed
wire nuts.
Fig. B Fig. C
5/21/2018
