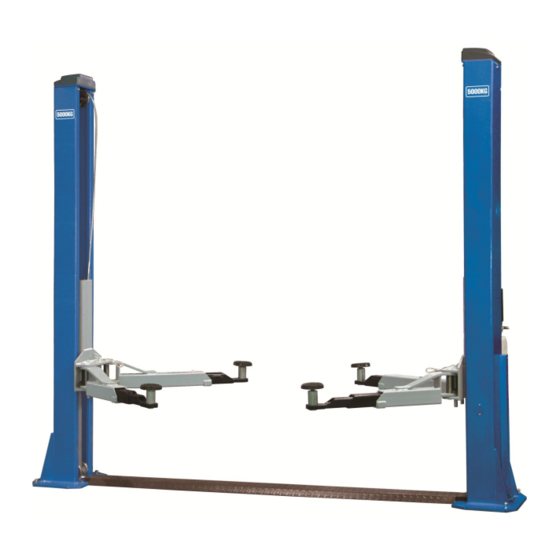

- Page 1 ELECTRO-HYDRAULIC 2-POST LIFT Installation/Operation & Maintenance Manual MODEL: GM - 6150H Version: GM201408.1.0...
- Page 2 NOTE TO THE USER Thank you for purchasing our products. Please read this instruction carefully for safe and proper use of the car lift, and keep it handy for future reference. ■ This Manual is for model : GM - 2150H ■...
-
Page 3: Table Of Contents
Installation/Operation & Maintenance Manual GM - 6150H 2-POST LIFT TABLE OF CONTENTS TABLE OF CONTENTS Chapter 1 DESCRIPTION OF THE MACHINE 1.1 FIXED STRUCTURE 1.2 MOVING UNITS 1.3 LIFTING UNITS 1.4 HYDRAULIC POWER UNIT 1.5 CONTROL BOX 1.6 SAFETY DEVICES Chapter 2 TECHNICAL SPECIFICATIONS 2.1 OVERALL DIMENSIONS 2.2 ELECTRIC MOTOR... - Page 4 Installation/Operation & Maintenance Manual GM - 6150H 2-POST LIFT TABLE OF CONTENTS Chapter 6 MAINTENANCE 6.1 PRECAUTIONS 6.2 PERIODIC MAINTENANCE 6.3 PERIODIC LUBRICATION CHART Chapter 7 TROUBLESHOOTING 7.1 TROUBLE SHOOTING GUIDE 7.2 POSSIBLE PROBLEMS AND SOLUTIONS APPENDIX A SPECIAL NOTES APPENDIX B SPARE PARTS...
-
Page 5: Chapter 1 Description Of The Machine
Installation/Operation & Maintenance Manual GM - 6150H 2-POST LIFT Fig. 2 illustrates the various parts of the lift. Chapter 1 DESCRIPTION OF THE MACHINE The electro-hydraulic 2-post lift is a fixed installation. This means that it is anchored to the ground and built for lifting and positioning automobiles and vans at a certain height off the ground. -
Page 6: Hydraulic Power Unit
Installation/Operation & Maintenance Manual GM - 6150H 2-POST LIFT It consists of: The safety devices include: 2 hydraulic cylinders (Fig. 2-8), the carriages Mechanical safety device for carriage; ◆ ◆ run by chains and synchronized by steel cables. Arms locking system; ◆... -
Page 7: Chapter 2 Technical Specifications
Installation/Operation & Maintenance Manual GM - 6150H 2-POST LIFT C h a p t e r T E C H N I C A L Three-phase Single phase SPECIFICATIONS Power 2.2KW 2.2KW 230-400V 3ph 230V 1ph Voltage 2.1 OVERALL DIMENSIONS +/-5% +/-5% Frequency... -
Page 8: Oil
Installation/Operation & Maintenance Manual GM - 6150H 2-POST LIFT The oil reservoir contains hydraulic mineral oil in CODE DESCRIPTION accordance with ISO/DIN 6743/4 with a level of contamination that does not exceed class 18/15 Circuit Breaker according to ISO 4406, for example IP HYDRUS Lift Button OIL 32, SHELL TELLUS OIL T32 or equivalent. -
Page 9: Vehicle Weight And Size
Installation/Operation & Maintenance Manual GM - 6150H 2-POST LIFT 2.7 VEHICLE WEIGHT AND SIZE MAX.4000kg.! 5000kg Lift rack can be adapted to virtually all vehicles no 1600 2000 2400 3000 heavier than 5000kg, the dimensions of which do not exceed the following: Max width: 2400mm Max wheelbase: 3000mm 2.8 MAXIMUM DIMENSIONS OF VEHICLES... -
Page 10: Chapter 3 Safety
Installation/Operation & Maintenance Manual GM - 6150H 2-POST LIFT Chapter 3 SAFETY REGULATIONS CAN CAUSE SERIOUS INJURY TO PERSONS, AND IRREPERABLE DAMAGE TO It is vital to read this chapter of the manual carefully THE LIFT AND THE VEHICLE BEING LIFTED. and from beginning to end as it contains important information regarding the risks that the operator and the maintenance fitter may be exposed to in the... -
Page 11: Risks Of Electric Shock
Installation/Operation & Maintenance Manual GM - 6150H 2-POST LIFT CAUTION: indicates situations and/or types of maneuvers that are unsafe and can cause minor injury to persons and/or damage the lift, the vehicle or other psaltery. 3.2 RISKS OF ELECTRIC SHOCK Specific safety notice affixed to the lift in areas where the risk of electric shock is particularly high. -
Page 12: Risks While The Vehicle Is Being Raised
Installation/Operation & Maintenance Manual GM - 6150H 2-POST LIFT Fig. 14 Keep both cables in balance during raising or ◆ lowering. (Fig. 15) Fig. 12 Correctly Loaded Vehicle 3.5 RISKS WHILE THE VEHICLE IS BEING RAISED The following safety devices have been installed to protect against overweight... -
Page 13: Risks Of Persons
Installation/Operation & Maintenance Manual GM - 6150H 2-POST LIFT beneath the moving parts of the lift. (Fig. 18) The lift If the moving part exceed its travel distance, on ◆ operator must not start the maneuver until it has the upper part of the command post there is been clearly established that there are no persons in one limit switch and is usually set working by potentially dangerous positions. - Page 14 Installation/Operation & Maintenance Manual GM - 6150H 2-POST LIFT Fig. 20 Fig. 23 3.6.5 RISK OF VEHICLE FALLING FROM LIFT 3.6.6 SLIPPING This risk could be caused by the incorrect This risk may arise due to spillage of lubricants in positioning on the arm disk support plates (Fig.
-
Page 15: Safety Instructions For Servicing
Installation/Operation & Maintenance Manual GM - 6150H 2-POST LIFT SAFETY INSTRUCTINS SERVICING Maintenance or repair work by authorized ◆ service personnel only. Turn off and padlock the main switch before ◆ doing any maintenance, or repair work. Work on pulse generators or proximity switches ◆... -
Page 16: Chapter 4 Installation
Installation/Operation & Maintenance Manual GM - 6150H 2-POST LIFT Chapter 4 INSTALLATION FOLLOWING OPERATIONS MUST PERFORMED EXCLUSIVELY BY SPECIALISED TECHNICAL STAFF WITH AUTHORISATION FROM THE MANUFACTURER OR LICENSED DEALER. THESE OPREATIONS PERFORMED BY OTHER PERSONS, SERIOUS PERSONAL INJURY AND/OR IRREPERABL DAMAGE TO THE LIFT UNIT MAY RESULT. -
Page 17: Floor
Installation/Operation & Maintenance Manual GM - 6150H 2-POST LIFT 4.3 FLOOR The lift must be installed on a horizontal concrete bed with a minimum thickness of 200mm built and a resistance ≥ 30N/mm The floor must also be flat and level (10mm of tolerance for leveling). - Page 18 Installation/Operation & Maintenance Manual GM - 6150H 2-POST LIFT 4.4.3 ELECTRIC PLANT CONNECTION Adjust both cables and keep the carriage in ◆ balance. WARNING Screw the joint of the high-pressure hose and ◆ The operations listed below must be performed fix it on the base.
-
Page 19: Testing And Checks To Perform Before Start-Up
Installation/Operation & Maintenance Manual GM - 6150H 2-POST LIFT box of the motor (Fig. 35) following the wiring diagram on Page 4. Fig. 36 Block the spring ring at the end of the pin. ◆ WARNING Fig. 35 End-user should confirm that the over load 4.4.3.3 The wires should be fixed by nylon pitch. -
Page 20: Sep Up
Installation/Operation & Maintenance Manual GM - 6150H 2-POST LIFT 4.5.2 ELECTRIC TESTS That there are no abnormal vibrations in the ◆ posts and in the arms; Connection comply with diagrams ◆ That the safety wedges enter the iron pads ◆ Machine earth connections ◆... -
Page 21: Chapter 5 Operations And Use
Installation/Operation & Maintenance Manual GM - 6150H 2-POST LIFT wedges are inserted automatically into each of the Chapter 5 OPERATIONS AND USE iron pad under the carriage. Regarding lift limits and safety devices, see pages 6, 7 “RISKS WHILE THE The lift Commands (control devices) is shown as Fig. -
Page 22: Chapter 6 Maintenance
Installation/Operation & Maintenance Manual GM - 6150H 2-POST LIFT To perform maintenance correctly, refer to the Chapter 6 MAINTENANCE following documents supplied rack manufacturer: 6.1 PRECAUTIONS Complete functional diagram of the electric ◆ WARNING equipment and auxiliary equipment indicating Maintenance must be carried out ONLY BY the power supply connections;... - Page 23 Installation/Operation & Maintenance Manual GM - 6150H 2-POST LIFT The power unit oil level. Add oil up to the right Check that all screws are tightened ◆ ◆ level, if necessary. Check that the arm locking system works ◆ 6.2.2 EVERY MONTH properly.
-
Page 24: Periodic Lubrication Chart
Installation/Operation & Maintenance Manual GM - 6150H 2-POST LIFT 6.3 PERIODIC LUBRIFICATION CHART Close the drain plug. ◆ Lubricate the rack as indicated in Fig. 40. Grease Fill the power unit with oil throng the plug ◆ must be taken from perfectly closed tins and/or well located at the top of the power unit reservoir. -
Page 25: Chapter 7 Troubleshooting
Installation/Operation & Maintenance Manual GM - 6150H 2-POST LIFT Chapter 7 TROUBLESHOOTING PRECAUTIONS indicated Chapter “MAINTENANCE” and Chapter 3 “SAFETY”. 7.1 TROUBLESHOOTING GUIDE POSSIBLE PROBLEMS Troubleshooting possible repairs require SOLUTIONS absolute compliance with ALL THE SAFETY Problem Possible Cause Solution Burnt fuse Line current does not arrive Replace fuse... -
Page 26: Appendix A Special Notes
Installation/Operation & Maintenance Manual GM - 6150H 2-POST LIFT APPENDIX A SPECIAL NOTES APPENDIX B SPARE PARTS A.1 DISPOSAL OF USED OIL B.1 SPARE PARTS Used oil, which is removed from the power unit and When replacing parts and making repairs, comply the plant during an oil change, must be treated as a with ALL THE SAFETY PRECAUTIONS described polluting product, in accordance with the legal... - Page 27 Installation/Operation & Maintenance Manual GM - 6150H 2-POST LIFT...
- Page 28 Installation/Operation & Maintenance Manual GM - 6150H 2-POST LIFT...
- Page 29 Installation/Operation & Maintenance Manual GM - 6150H2-POST LIFT Code Name Quantity Remark TPF4-100-00A(B) Column jointing(L,R) 1 each TPF4-100-10-05 Pulley GB894.1-86 Spindle spring washer TPF4-100-12GM Cover GB819-85 Cross bolt M6X10 GB5781-86 Hexangular bolt C M12X40 GB6170-86 GB97.2-85 Flat washer GB93-87 Spring washer TPF4-100-13-01 Up board Jointing parts...
- Page 30 Installation/Operation & Maintenance Manual GM - 6150H 2-POST LIFT Code Name Quantity Remark 37 GB93-87 Spring washer Hydraulic pump 39 TPF4-500-08 Washer 40 TPF4-500-07 Hydraulic connection 41 TPF4-500-05 Elbow fitting 42 TPF4-500-12 Hose L=1650 43 TPF4-500-06 Elbow fitting 44 TPF4-500-02 Direct outside fitting 45 TPF4-500-10 Hose...
