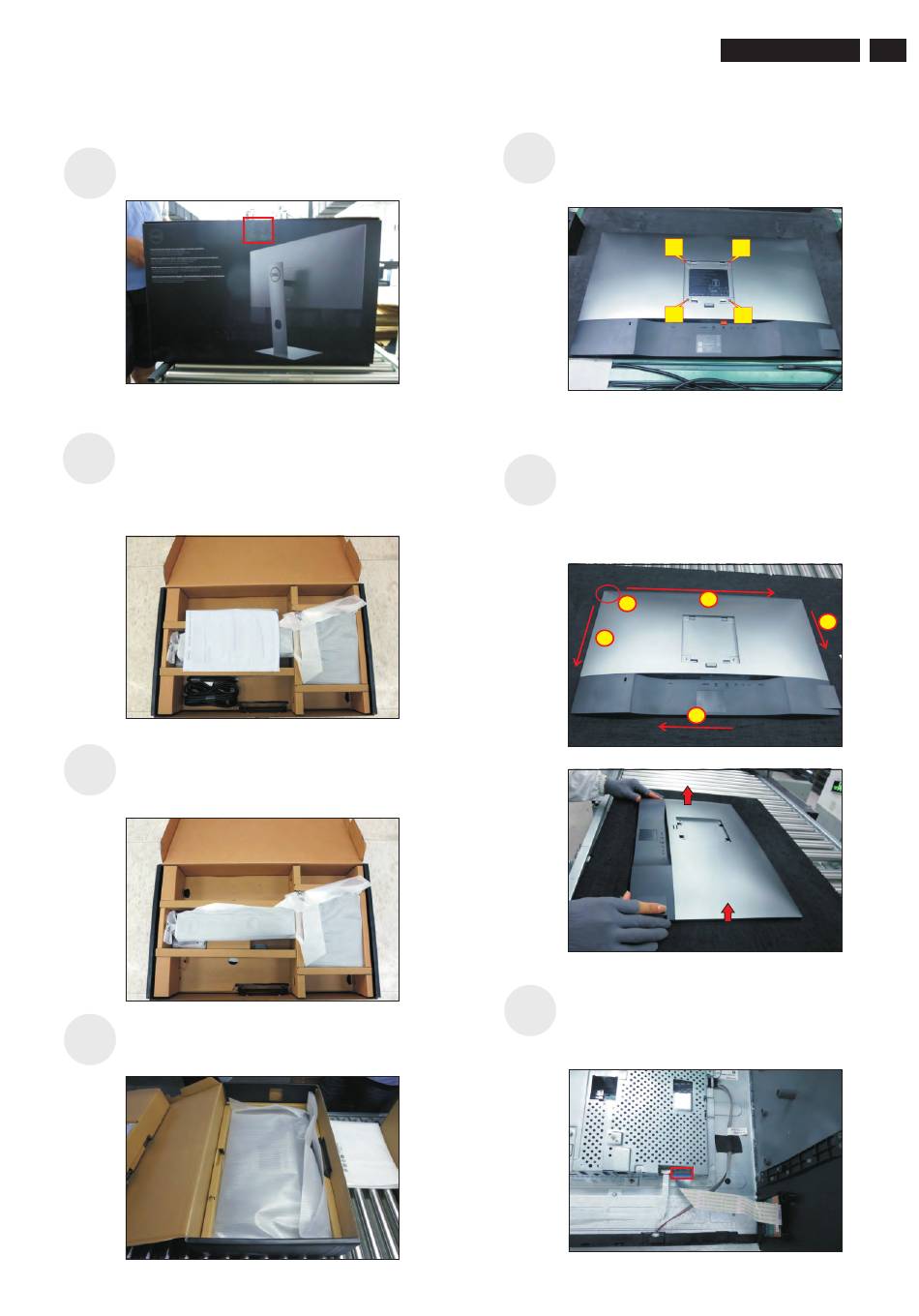

1. Disassembly Procedures:
S1
Open the carton with a proper tool.
Take out all accessories including QSG, Delta-e
paper, user's manual, DP cable, USB cable, power
S2
cable and other packing materials from the
carton.(Note: It depends on whether users returning
the accessories)
Delta_E paper
QSG
User's manual
DP cable
power cable
USB cable
Take out the base, Paper-Top and stand from the
S3
carton, then take out the monitor from the pizza
carton.
stand
Take out the monitor from EPE-bag and put the LCD
S4
monitor on a protective cushion.
base
Use a Philips-head screwdriver to remove four
S5
screws for unlocking mechanisms.
(No.1~4 screw size=M4x8; Torque=10~11kgfxcm)
2
4
Wedge your fingers between the rear cover and the
middle bezel on the corners of the top side of the
monitor to release the rear cover, then use one hand
S6
to press the middle bezel, the other hand to pull up
carefully the rear cover in order of arrow preference
for unlocking mechanisms of rear cover.
1
3
Lift the rear cover up carefully. Disconnect the USB
S7
FFC cable from the connector of the interface board,
and then remove the rear cover.
DELL U2721DE
3
1
2
3
4
1
