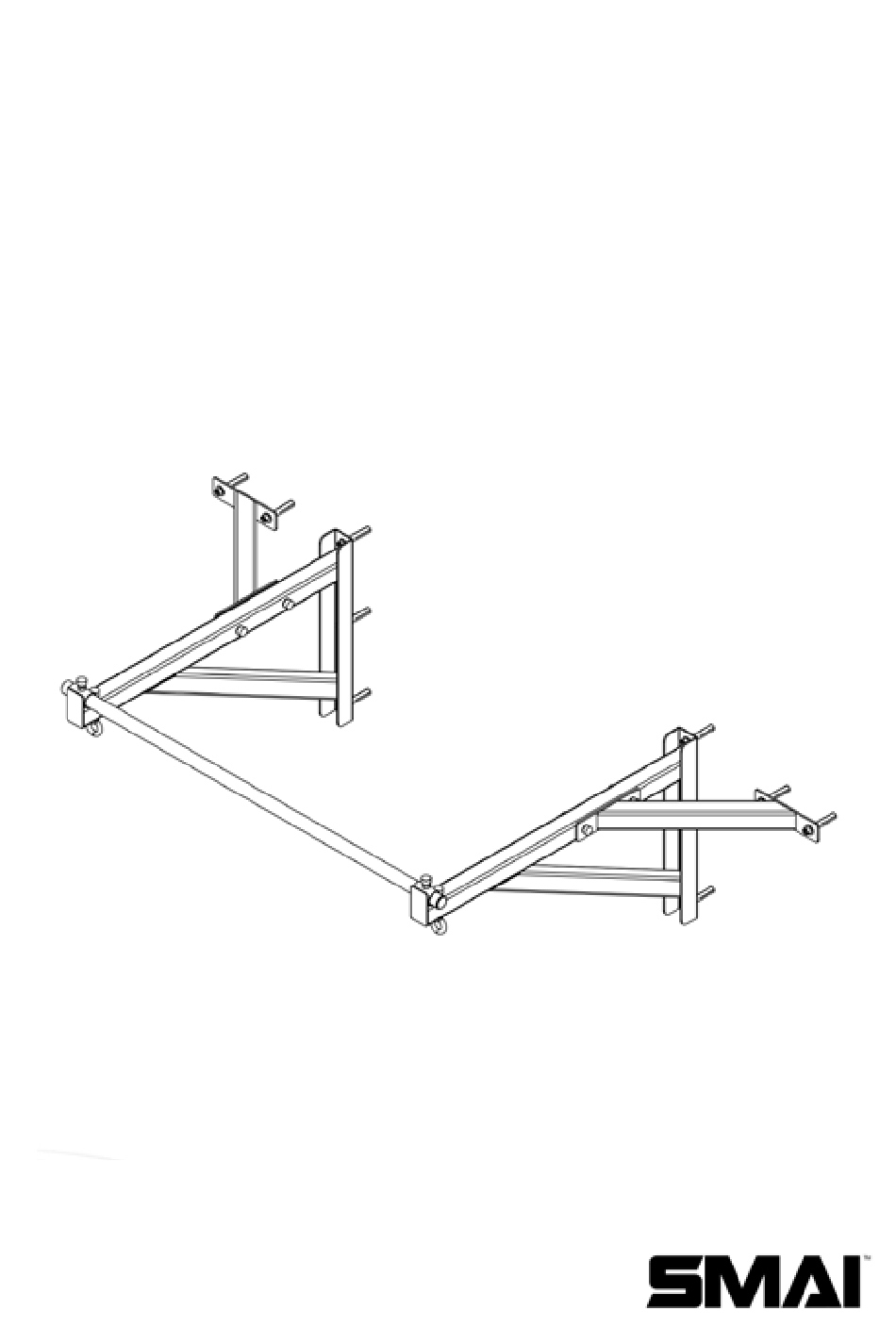

- Page 1 SOLO CHIN UP AND BAG BRACKETS XF-WM-CUB...
- Page 2 SOLO CHIN UP AND BAG BRACKETS PART NUMBER DESCRIPTION QUANTITY PART NUMBER DESCRIPTION QUANTITY MAIN FRAME HEX BOLT M10*16 SUPPORT ROD BIG WASHER 10 CHIN-UP BAR WASHER 10 HOOK LOCK NUT M10 EXPANSION SCREW ROUND PLUG M10*70 HEX BOLT M10*70 BOLT CAP M10...
- Page 3 Remove all components from packaging. Check the parts list from the previous page to ensure all components are accounted for. The assembly requires at least 2.0m of space width-wise on a wall. Ensure you have a suitable location. Take 1 of the MAIN FRAME (#1) components and test fit against the wall. You will need to determine the appropriate height for the bracket.
- Page 4 SOLO CHIN UP AND BAG BRACKETS The other MAIN FRAME (#1) must now be located. The mounting holes must be marked 1140mm away from the first bracket mounting holes. This must be horizontal. A spirit level can be used to ensure the points are precisely horizontal. Use a 14mm masonry bit to drill out the mounting holes.
- Page 5 Install the CHIN UP BAR (#3). If there are issues with fitment, it can help to loosen the anchor bolts of one or both of the main frames to allow some freedom of movement. Once the chin up bar is installed, ensure that these anchor bolts are tightened back down appropriately.
- Page 6 SOLO CHIN UP AND BAG BRACKETS The SUPPORT ROD (#2) can now be lifted into position. Use the supplied HEX BOLT M10*70 (#6) bolt to fix the support rod in position loosely. Mark the position of the outer mounting hole. The inner mounting hole DOES NOT require an anchor bolt. Repeat for both sides and remove the support rods for drilling.
- Page 7 Ensure that all debris are removed from the mounting holes. Reinstall the support rod to the main frame using supplied HEX BOLT M10*70 (#6), WASHER 10 (#9), and a LOCK NUT M10 (#10). Install these bolts loosely at first to ensure there are no alignment issues for the anchor bolt installation. Install the EXPANSION SCREW M10*70 (#5) anchor bolts and tighten down securely.
- Page 8 SOLO CHIN UP AND BAG BRACKETS Install the HOOK (#4) to the main frame using a BIG WASHER 10 (#8) and a LOCK NUT M10 (#10). Install on both sides and ensure they are tightened securely Be sure to install the ROUND PLUG (#11) cap over any exposed nuts/bolts that may cause injury. Make sure to double check: All fasteners are tightened appropriately.
