AX-M600L / AX-M600X2L / AX-M600LDS
Magnetic Lock
Specification
Model
Size(unit:mm)
AX-M600L
250Lx48.5Wx25H
AX-M600X2L
500Lx48.5Wx25H
AX-M600LDS
250Lx48.5Wx25H

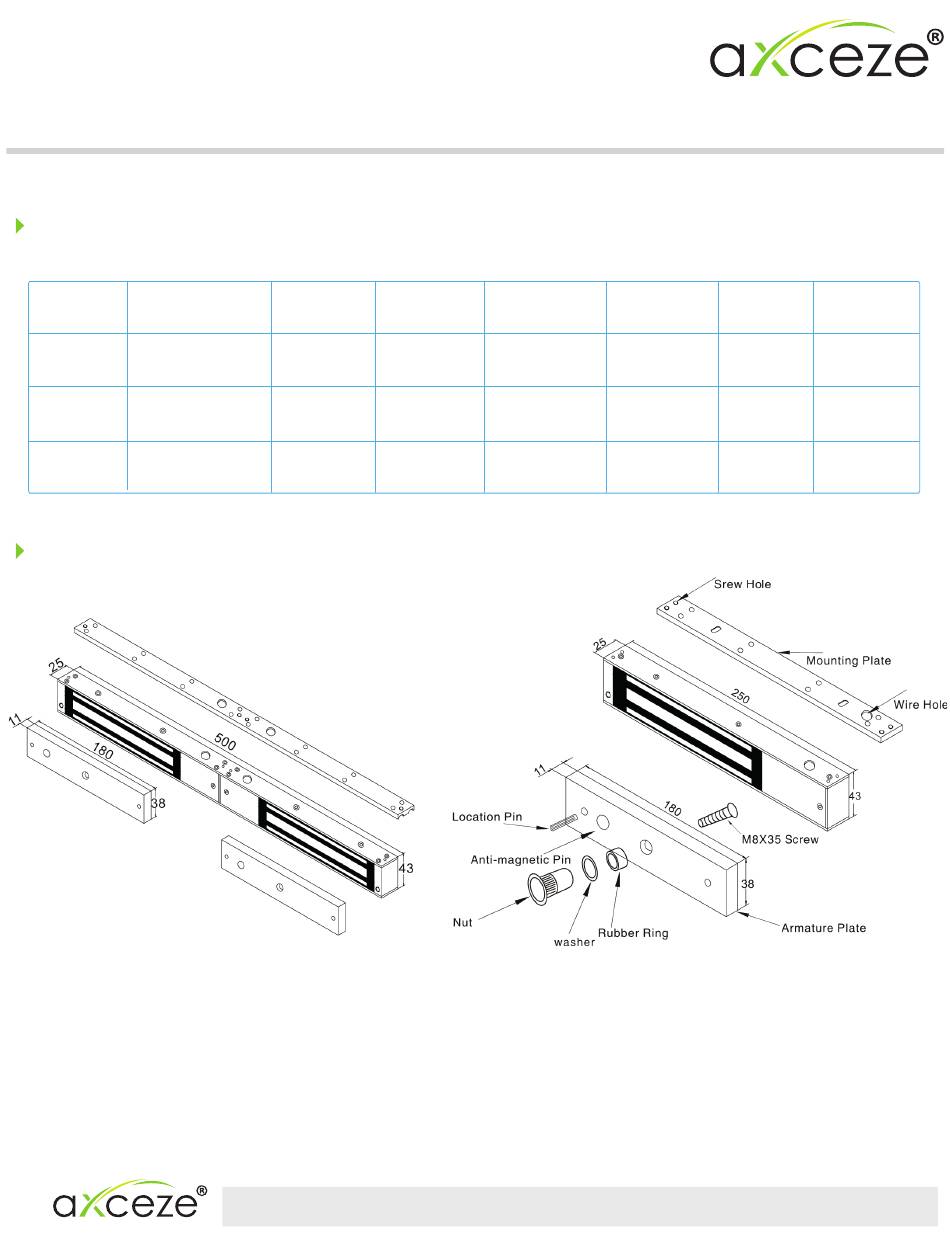

Diagram(unit:mm)
Cautions:
Voltage
Current
12V/500mA
12/24VDC
24V/250mA
12V/500mAx2
12/24VDC
24V/250mAx2
12V/500mA
12/24VDC
24V/250mA
A. The screw of armature plate should not be fi xed t oo ti ght . Proper elasticity
should b e gua ran tee d for th e rub ber ring so that the armature plate can adjust
itself to the appropriate position.
B. Check the jumper's position before connecting. Figure out it represents 12VDC
or 24VDC.
Holding Force
Lock Signal
280kg(600Lbs)
Yes
280kgx2(600Lbsx2)
Yes
280kg(600Lbs)
Yes
AX-M600L / AX-M600X2L / AX-M600LDS
Door Signal
Door
No
Single Door
No
Double Door
NO(B),NC(R)
Single Door
COM(Y)
Advertisement
Table of Contents
Related Manuals for AXCEZE AX-M600L
Summary of Contents for AXCEZE AX-M600L
- Page 1 AX-M600L / AX-M600X2L / AX-M600LDS Magnetic Lock Specification Model Size(unit:mm) Voltage Current Holding Force Lock Signal Door Signal Door 12V/500mA AX-M600L 250Lx48.5Wx25H 12/24VDC 280kg(600Lbs) Single Door 24V/250mA 12V/500mAx2 AX-M600X2L 500Lx48.5Wx25H 12/24VDC 24V/250mAx2 280kgx2(600Lbsx2) Double Door 12V/500mA NO(B),NC(R) AX-M600LDS 250Lx48.5Wx25H 12/24VDC...
- Page 2 Installation AX-M600L / AX-M600X2L / AX-M600LDS...
- Page 4 Connect the ground(-)lead from a 12VDC Connect the ground(-)lead from a 24VDC power source to V -. power source to V -. Check jumper for 12 VDC operation. Check jumper for 24 VDC operation. Wire Connection AX-M600L / AX-M600X2L / AX-M600LDS...
