AXCEZE AX-M300 Quick Start Manual

Single door magnetic lock

AX-M300

Single Door Magnetic Lock

Specification

Model

Size(unit:mm)

AX-M300

170Lx41.4Wx20.5H

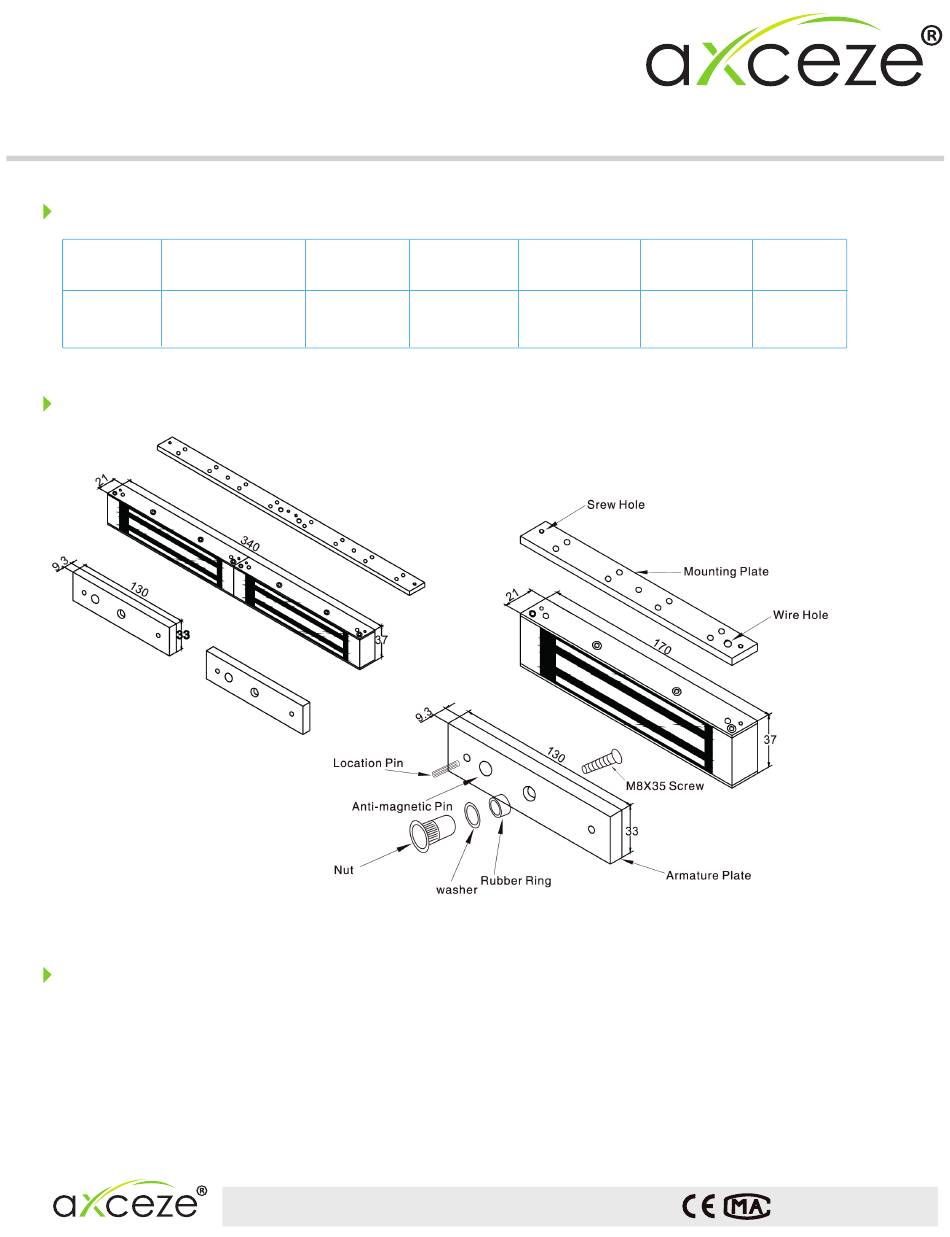

Diagram

Cautions:

A. The screw of armature plate should not be fixed too tight. Proper elasticity should be guaranteed for the rubber ring so that the

armature plate can adjust itself to the appropriate position.

B. Check the jumpers position befare connecting. Figure out it represents 12VDC or24VDC.

Voltage

Current

12V/300mA

12/24VDC

24V/150mA

Holding Force

Signal Output

18Okg(350Lbs)

Door

Single Door

AX-M300

Table of Contents

Do you have a question about the AX-M300 and is the answer not in the manual?

Page 1 AX-M300 Single Door Magnetic Lock Specification Model Size(unit:mm) Voltage Current Holding Force Signal Output Door 12V/300mA AX-M300 170Lx41.4Wx20.5H 12/24VDC 18Okg(350Lbs) Single Door 24V/150mA Diagram Cautions: A. The screw of armature plate should not be fixed too tight. Proper elasticity should be guaranteed for the rubber ring so that the armature plate can adjust itself to the appropriate position.
Page 3 AX-M300 Different brackets are available according to different types of doors. Bracket Installation For example, narrow door, frameless glass door and inward opening door. Installation instruction AX-M300...
Page 4 AX-M300 Different brackets are available according to different types of doors. Circuit Board Diagram For example, narrow door, frameless glass door and inward opening door. Wire Connection Notes: Please read specification before installing magnetic lock A. Handle the equipment carefully. The holding force can be reduced by damaging the lock body or armature plate.
