SL: 40021
Date: 15 July 2011
Product: Compressors
Subject: Air Outlet Flap Cylinder Hose Relocation (Y03)
PROCEDURE & WARRANTY GUIDELINES
Repair Priority Mandatory - Class AA
Parts Required Yes - parts will be shipped free of
charge
Parts Return No - dispose of old parts
Parts Credit No
Labor Credit Yes - Two (2) hours
Travel Credit Yes - Two (2) hours for retailed
machines
Warranty Code Y03
MODEL
12/150

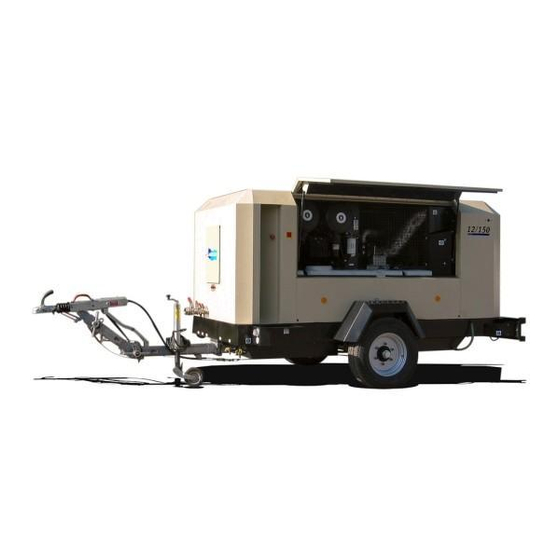

The air compressor uses a hydraulic cylinder to control
the air outlet flap of the compressor. The oil supply
hose to the cylinder is in close proximity to an exhaust
muffler that can reach high temperatures.
If the oil supply hose to the cylinder experiences a leak,
oil could spray on the exhaust muffler. If the exhaust
muffler temperature is high, the oil spray may ignite
causing a fire in the compressor canopy.
NOTE: If compressor operation is required by the
owner prior to availability of the final
correction, Doosan
developed a
described in the instruction attached to the
dealer Safety Notice letter.
SL 40021-EN
Doosan Infracore
Doosan Infracore
Portable Power
Portable Power
Service Letter
Service Letter
Field Modification
Safety Notice
SERIAL NUMBER
705001 - 705035
Benelux SA has
temporary solution
Parts
QTY P/N
1 92354653
1 92354364 BUSH HEXAGON 1/4 X 1/8 BSPT
1 92799444 ELBOW P - IN F SW 1/4 BSPT-8MM
1,5 m 92799378
1,5 m 23346182
1 35114545
1 92931401 ADAPTER P-IN M 1/4 BSPT-8MM
10 92281427
The above parts will be shipped to you for each
affected machine
Doosan Benelux SA asks it's dealers to contact all
owners of affected
arrangements for this modification.
as
1
DESCRIPTION
R1/8 PLUG
TUBE NYLON 8MM
CONVOLUTED CONDUIT 16MM
TEE CONNECTOR 1/4 NPT
TIE CABLE 3.5X200
compressors and make
