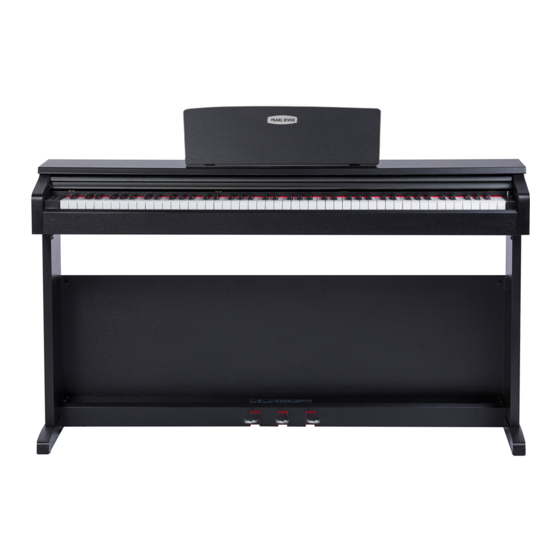

Pearl River V05 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

V 0 5 D I G I T A L P I A N O
U S E R M A N U A L

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the V05 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Pearl River V05

Summary of Contents for Pearl River V05

  • Page 1 V 0 5 D I G I T A L P I A N O U S E R M A N U A L...
  • Page 2 Safety Guideline Before playing the digital piano, please read the following content. *Please put this instruction book in a safety place, in order to read it in the future Warning In case of getting seriously injured or killed because of electric shock, short circuit, damage, fire or other dangers, please obey the following warnings.
  • Page 3 Warning about humidity * In case of any liquid splashing into the device, please do not get this device rained or use it nearby water, in a wet surrounding or put a container of liquid on it. If any liquid, like water, splashes into the instrument, please cut off power and pull out the electric cable from the AC socket immediately.
  • Page 4 * If not using the instruments for a long time or during a lighting storm, please lpull out plug from the socket * Do not connect the instrument to the socket by multiple connector, or it will lower the sound quality, or it will make socket overheat Assemble Use * Please carefully read the attachment that explains the assemble process.
  • Page 5 you find any problems and questions, please immediately turn off the power and pull out the plug from the socket. Even though the power is turned off, there is still a small amount of electricity current flowing though it. If you decide not using this device for a long time, please pull out the plug from AC socket.

  • Page 6: Table Of Contents

    INDEX ..................Attention to installation ....................Control Panel ........... Power On\Adjust Volume\Headphone Connection ............Record Function\Play/Stop\ Play Demo Song ............... Accompany Function\ Syn Start Variation ................Voice Control\Teaching Function ................Voice Restoration\Metronome ..................Function Control\Chord ................Accompany Volume\Octave ..............Transposition\Soundboard resonance .......................
  • Page 7 ....................... Percussion ..................... Bluetooth function ..........Back Inserting Panel Funciton\USB MIDI Function ....................Audio Connection ......................Voice List ...................... Rhythm List ..............MIDI Keyboard Percussion Check List ....................Demo Song List Technical Specification ..................................... Trouble Shooting...

  • Page 8: Attention To Installation

    Thank you for buying Our Digital Piano. No matter you are a student, piano hobbyist or the professional, this digital piano will impress you with its perfect sound and fashion design. It can be competent with piano studying, music listening, MIDI production, which satisfies your entertainment demand. It also has grand hammer dynamics keyboard, making you express yourself easily.

  • Page 9: Control Panel

    Control Panel All the function keys are on the left side control panel of the digital piano. VOICES FUNCTION METRONOME RECORD PLAY/STOP A/FILL 1 PRELUDE/CODA START/STOP B/FILL 1 SYNC START DATA/ TEMPO DEMO/TEACHING VOICES RHYTHM...

  • Page 10: Power On\Adjust Volume\Headphone Connection

    Power On 1) Connect the power to the piano and turn on the piano by pressing [Power] button. Press the power button over 2seconds to turn off the piano. 2) The default voice is grand piano. POWER Adjust Volume Volume Turn the Volume button on the control panel to set the volume.

  • Page 11: Record Function\Play/Stop\ Play Demo Song

    Record Function Start recording: Press [RECORD] button and the indicate light turns on, which means entering the record status. Meanwhile, the metronome starts automatically. It can be RECORD turned off manually if it isn't needed. (This digital piano has accompaniment track which can be recorded) End recording: Automatic Ending: During the recording process, when the storage space is full, recording will end automatically.

  • Page 12: Accompany Function\ Syn Start \ Variation

    Accompany Function Select Rhythm: Press [RHYTHM] button to activate rhythm selection. DATA/ Press [DATA/TEMPO+/-] button to select rhythm within 5 seconds. (The RHYTHM TEMPO rhythm list is in the appendix) Adjust accompaniment velocity: The [RHYTHM] indicator light turns off 5 seconds later after the rhythm is activated. Meanwhile, press DEMO/TEACHING [DATA/TEMPO+/-] button to adjust automaticaccompaniment velocity.

  • Page 13: Voice Control\Teaching Function

    Voice Control 1) The default voice is 000 after power on. 2) Voices select: Press [VOICES] Button to activate voices selection function. OLED will display corresponding voice number. Press [DATA/TEMPO+/-] button to select any voice within 5 seconds. DATA/ TEMPO VOICES VOICES DEMO/TEACHING...

  • Page 14: Voice Restoration\Metronome

    Voice Restoration VOICES No matter in what playing status, long press [VOICES] button twice and the digital piano will return to original status. The default voice is Grand piano. Metronome 1) Press [METRONOME] button on control panel to start metronome and the indicator light will flash. OLED will display the beat velocity.

  • Page 15: Function Control\Chord

    Function Control As a user-friendly instrument, all functions in this digital piano can be activated easily. Every function is (The name of each function is printed under the key for reference.) corresponding to a key. DUALVOICE SPLIT SPLITPIANO EFFECT EFFECTOFF REVERB REVERBOFF CHORUS...

  • Page 16: Accompany Volume\Octave

    2) Press [FUNCTION] button, indicator light turns on. Press [CHORD OFF] button within 5 seconds to turn off automatic chord function. Accompany Volume 1) Press [FUNCTION] button, indicator light turns on. Press [ACCOMPANIMENT VOLUME+/-] button within FUNCTION 5 seconds to adjust accompaniment volume. 2) Press [FUNCTION] button again or wait for 5 seconds ACCOMPA- CHORD...

  • Page 17: Transposition\Soundboard Resonance

    Transposition This function can transpose a note to +/-12 semitone in a range of octachord. 1) Press [FUNCTION] button and indicator light turns on. FUNCTION Press [TRANSPOSITION +/-] button within 5 seconds to adjust pitch. Adjusting range: -12 to +12. 2) Press [FUNCTION] button again or wait for 5 seconds ACCOMPA- CHORD...

  • Page 18: Dual Voice

    Dual Voice 1) Press [FUNCTION] button, indicator light turns on. FUNCTION Press [DUAL VOICE] button within 5 seconds toenter dual voices status. DUALVOICE SPLIT SPLITPIANO SOUNDBOARD KEYBOARD FUNCTION RESONANCE 2) Select 2nd voice by [DATA/TEMPO+/-] button. 1st voice should be adjusted before pressing [DUAL VOICE] button.

  • Page 19: Split

    Split This function can divide the keyboard into two individual playing zones. Left keyboard Right keyboard 1) Before pressing [SPLIT] button, select voice for the left keyboard; Press [FUNCTION] button,the indicator light turns on, press [SPLIT] button within 5 seconds to enter split status. The keyboard is divided into two individual zones.

  • Page 20: Keyboard Split Point Setting\Effect

    Keyboard Split Point Setting Press [FUNCTION] button and the indicator light turns on. Press [SPLIT POINT] button within 5 seconds to enter split point setting status. Now press a key to set the split point; Press [FUNCTION] button again or wait for 5 seconds without controlling until the indicator light turns off, the split point is set.

  • Page 21: Reverb\ Chorus

    Reverb 1) Press [FUNCTION] button and the indicator light turns on. FUNCTION Press [REVERB] button within 5 seconds to activate rev- erb function and sound will have reverb effect. 2) Press [FUNCTION] button and the indicator light turns on. EFFECT EFFECTOFF REVERB REVERBOFF...
  • Page 22 Beat This digital piano has six kinds of beats, which are 1,2,3,4,5,6. FUNCTION Press [FUNCTION] button and the indicator light turnson. Press corresponding beat key within 5 seconds to set. Press [FUNCTION] button again or wait for 5 seconds without SOFT STANDARD HARD...

  • Page 23: Percussion

    Percussion 1) Press [FUNCTION] button and the indicator light turns on. Press [PERCUSSION ON] button within 5 seconds to activate percussion. 2) Press [FUNCTION] button and the indicator light turns on. Press [PERCUSSION OFF] button within 5 seconds to turn off percussion function. The digital piano will return to the original voice. FUNCTION SPLIT POINT PRECUSSION...

  • Page 24: Bluetooth Function

    1 . Audio Bluetooth function (1) Turn on the piano, the Bluetooth function will be on at the same time. (2) Open your phone or iPad to get into Setting--Bluetooth, search [V05] device, the password is “6666”, input the password if needed.

  • Page 25: Back Inserting Panel Funciton\Usb Midi Function

    Back Inserting Panel Funciton PEDAL DC 12V LINE LINE (1) Line out Stereo output, connect the digital piano to a peripheral speaker system (2) Line in Stereo Input, connect the digital piano to a built-in speaker system (3) USB USB MIDI Jack (4) Power Connect power adapter (5) Pedal...

  • Page 26: Audio Connection

    Audio connection Line In: Connect the musical instrument to the built-in speaker system, regarding the digital piano as speaker. AUDIO CONNECTION LINE Line Out: Regarding this digital piano as sound source, connect it to the external speaker system. AUDIO CONNECTION LINE...

  • Page 27: Voice List

    Voice List 编号(Number) 乐器 LCD 显示 Instrument 钢琴 PIANO GRD """GrdPiano""" 明亮钢琴 PIANO BRITE """BrtPiano""" 酒吧钢琴 HONKY-TONK """HonkTonk""" 电子钢琴 1 E PIANO1 """E Piano1""" 电子钢琴 2 E PIANO2 """E Piano2""" 古钢琴 HARPSCRD """Harpsi""" 马林巴 MARIMBA """Marimba """ 手摇风琴 HAMND ORG """Jazz Org"""...

  • Page 28: Rhythm List

    编号(Number) 乐器 LCD 显示 Instrument 水晶 CRYSTAL FX """Crystal""" 西塔尔琴 SITAR """Sitar """ 三味线 SHAMISEN """Shamisen""" Percussion music 标准鼓组 Standard Drums Std.Kit Rhythm List 编号(Number) 英文名 (English) 中文名 (Chinese) LCD 显示 8 拍 1 8 Beat 1 "8Beat 1" 8拍流行乐 2 8 Beat Pop 2 "8Bt Pop2"...

  • Page 29: Midi Keyboard Percussion Check List

    MIDI Keyboard Percussion Check List Note# Note Ostand set 1Room set 2Power set 3Electric set 4Synth set Syn Sound Syn Sound Syn Sound Syn Sound Syn Sound Slap Slap Slap Slap Slap Scratch1 Scratch1 Scratch1 Slap Scratch1 Scratch2 Scratch2 Scratch2 Scratch2 Scratch2 Sticks...
  • Page 30 Note# Note Ostand set 1Room set 2Power set 3Electric set 4Synth set Pedal Hi-Hat Low Tom1 Pedal Hi-Hat Pedal Hi-Hat Synth Pedal Hi- Mid Tom2 Power Mid Tom2 Power Mid Tom2 Eleotry Mid Tom2 Synth Mid Tom2 Open Hi-Hat Open Hi-Hat Open Hi-Hat Open Hi-Hat Synth Open Hi-...
  • Page 31 Note# Note Ostand set 1Room set 2Power set 3Electric set 4Synth set Low conga Low conga Low conga Low conga Low conga High Timbale High Timbale High Timbale High Timbale High Timbale Low Timbale Low Timbale Low Timbale Low Timbale Low Timbale High Agogo High Agogo...

  • Page 32: Demo Song List

    Demo Song List Name Name Name Name Chopin Fi Old France Minuet Piano Oh, Susanna AMASON Rock Minuet Bath Little Starts August Flower Fountain Song of Joy Deep Sea Palom Blanca Bach Piano Busker Wa Ha Ha Picking Tea Minuet Bach NewsPaper Sale Snail &...

  • Page 33: Technical Specification

    Technical Specification Sound source: Pearl River Amason independently developed the DSP sound source, Germany Famous grand piano sound sampling. 8 Layers dynamic, String overtone resonance analog audio technology. Keyboard: Independent development 88 keys dynamic curve hammer action weighted keyboard Polyphony: 512(Stereo) Demo: 75 demos Touch: 5 piano standard touch curves, Default、Soft、Standard、Hard、Touch off.
  • Page 34 Effect function: 64 reverb, 64 chorus,127 Tremolo effect. Metronome: Dynamics click as per beat,1,2,3,4,5,6, Tempo:20-280 Bluetooth:Bulit in Bluetooth. Pedal: Imitated traditional grand piano pedal function, Soft, selected sustain, sustain. Interface: USB MIDI jack, pedal jack, Power jack, Headphone jack, Line IN/OUT. Power:DC12V 2000mA Dimension:1375*420*810mm Net weight: 42.5kg...

  • Page 35: Trouble Shooting

    Trouble Shooting Problem Cause/Action There is noise when turn on/off the power This is normal , please don’t worry. After turning on, no sound is produced when Please adjust the master volume or check if there is a press the keys headphone connected in the device.
  • Page 36 Problem Cause/Action Please confirm the accompaniment volume or if the Chord No automatic Accompaniment and Chord function is turned on. There are 5 piano touch curve, Default、Soft、Standard、 Hard、Touch off. You might choose the wrong dynamics. Please Dynamics is not same as before set the one you need.
  • Page 37 P r e s e n t e d b y G u a n g z h o u P e a r l R i v e r P i a n o G r o u p C o . , L t d M a n u f a c t u r e d b y G a n g z h o u P e a r l R i v e r A m a s o n D i g i t a l M u s i c a l I n s t r u m e n t C o .
  • Page 38 FCC Caution： This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
