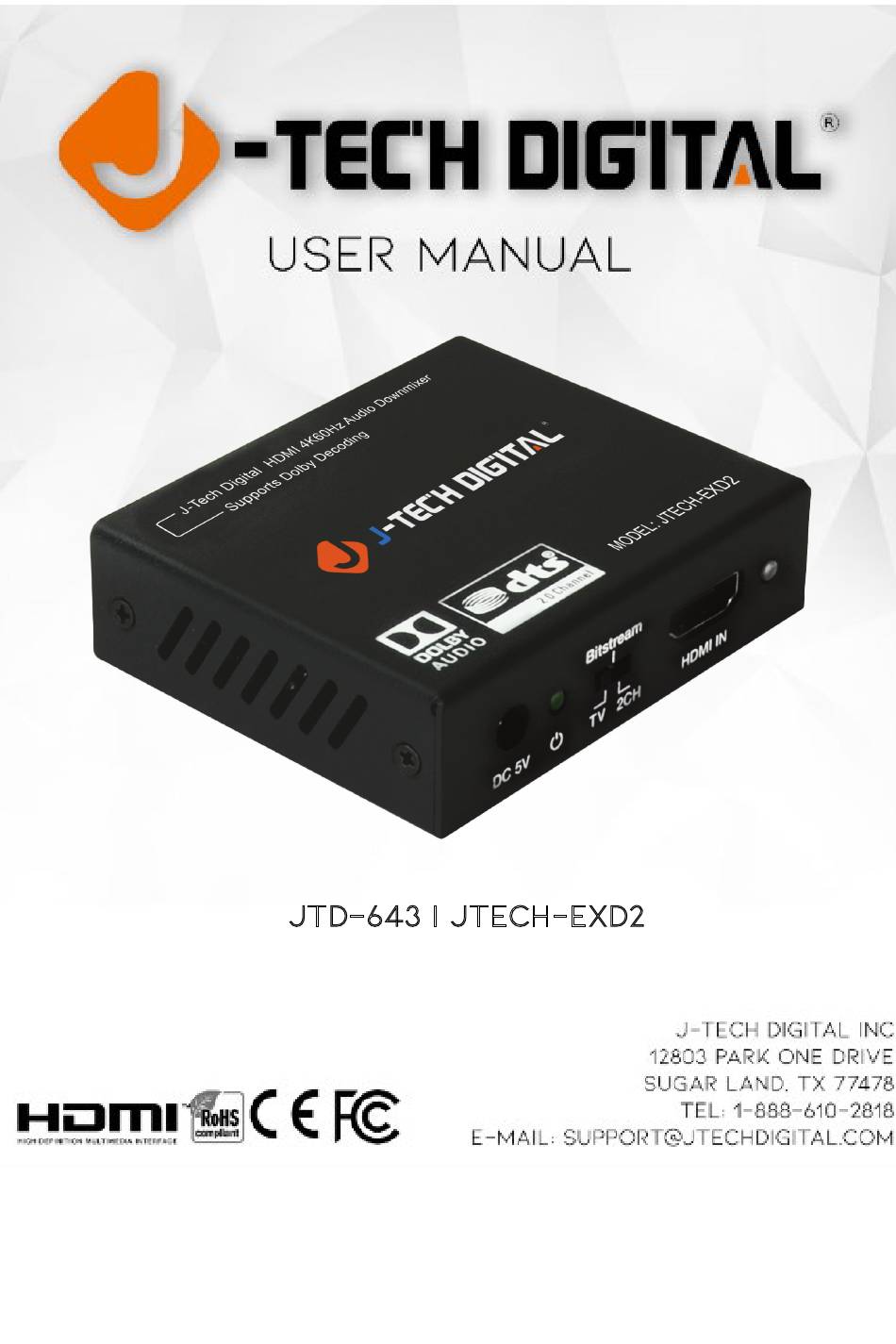

- Page 1 HDMI 2.0 Audio Extractor w/ Downmix JTD-643 | JTECH-EXD2...
-
Page 2: Table Of Contents
Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc. -
Page 3: Introduction
1. Introduction The JTECH-EXD2 HDMI 18Gbps Audio Extractor can extract audio signals from any HDMI compliant source to digital optical or analog stereo L/R audio outputs. For maximum flexibility, this audio extractor also supports bitstream audio down-mix to analog stereo output and keeps optical and HDMI out audio pass- through. -
Page 4: Features
2. Features HDMI 2.0b (18Gbps) | HDCP 2.2 and DVI Compliant Video Resolutions up to 4K@60Hz (YUV444) Extracts HDMI Audio to Optical (SPDIF) or L/R analog audio HDMI Input Audio Pass-Thru to HDMI and Optical Audio Outputs Supports Bitstream Audio Downmix to L/R Analog Output Optical Audio Supports LPCM 2CH | Dolby Digital 5.1CH | DTS 5.1CH... -
Page 5: Package Contents
3. Package Contents 1× JTECH-EXD2 Audio Extractor 1× 5V/1A Power Adapter 1× User Manual 4. Specifications Technical HDMI Compliance HDMI 2.0b HDCP Compliance HDCP 2.2 and HDCP 1.4 Video Bandwidth 18Gbps Up to 4K2K@50/60Hz(YUV4:4:4), Video Resolutions 4K2K@30Hz,1080P@120Hz, and 1080P 3D@60Hz Color Space RGB, YCbCr 4:4:4, YCbCr 4:2:2 Color Depth... - Page 6 Connections Inputs 1x HDMI Type A [19-pin female] 1x HDMI Type A [19-pin female] Outputs 1x L/R Audio Out [RCA] 1x Optical Out [S/PDIF] Mechanical Housing Metal Enclosure Color Black 2.89 in [W] x 2.39 in [D] x Dimensions 0.79 in[H] Weight 0.30 lbs.
-
Page 7: Operation Controls And Functions
5. Operation Controls and Functions 5.1 Front Panel Bitstream DC 5V TV 2CH HDMI IN Number Name Function Description Connect 5V/1A adapter to AC DC 5V wall outlet for power supply Power LED Power Status LED Indicator TV – Pass-Thru TV’s EDID Bitstream –... -
Page 8: Rear Panel
5.2 Rear Panel HDMI OUT Number Name Function Description HDMI Output Port HDMI OUT OPTICAL Toslink Digital Audio Output Port Stereo RCA Analog R/L OUT Audio Output Port... -
Page 9: Application Example
6. Application Example AV Receiver UHDTV Active Speakers Power Supply DVD or Blu-ray Player...
