- Page 1 Operating Instructions Website: www.jtechdigital.com Toll Free: 1-888-610-2818 Email: support@jtechdigital.com USER MANUAL J-Tech Digital® Premium Quality HDMI 2.1CH/5.1CH Audio Extractor Model: JTDAT5CH JTD-ID: 80...
- Page 2 The J-Tech Digital Premium Quality HDMI to HDMI + Audio Extractor is the perfect component for any home entertainment system. With this extractor, you can play content from a 1080p source device using HDMI. The audio signal is extracted to 2 outputs, digital optical SPDIF (Toslink®) and RCA audio output, for separate processing on an external...

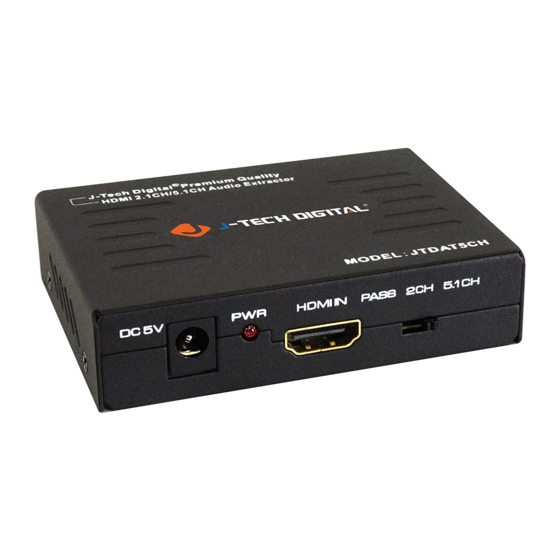

- Page 3 Panel Descriptions Front DC5V: 5V DC Power Adapter Port PWR：Power Status LED HDMI IN：HDMI Input Port SWITCH：Audio EDID Switch PASS: HDMI pass mode. The audio and video EDID comes from the HDMI output device. SPDIF and L/R no output. 2CH: 2 channel stereo mode. The HDMI / SPDIF and L/R output stereo audio. 5.1CH: 5.1 channel mode.
- Page 4 Input/Output Cable Distance……………………………………………………………………….………. < 30ft 26AWG HDMI v1.4 Max Current.…………………………………………………………………………..…………………………………………….500mA Power Adapter…………………………………………………………...…...Input – AC(50/60Hz) 100V-240V; Output – DC 5V/1A Operating Temperature Range…………………………………………………………………………….………..……..5°F to 131°F Operating Humidity Range…………………………………………………………………………..…………….....5 to 90% RH Dimensions (L x W X H)…………………………………………………………………………………………..…...3.5 in x 3 in x 1 in Weight………………………………………………………………………………………………………………………...…………5 oz Model…………………………………………………………………………………………………………………………...JTDAT5CH...
- Page 5 Specifications, pictures & software described herein are subject to change without prior notification. • Only use the provided power supply when operating this unit. J-Tech Digital® is not responsible for any damage due to customer neglect. • All trademarks are the sole property of their respective companies.
