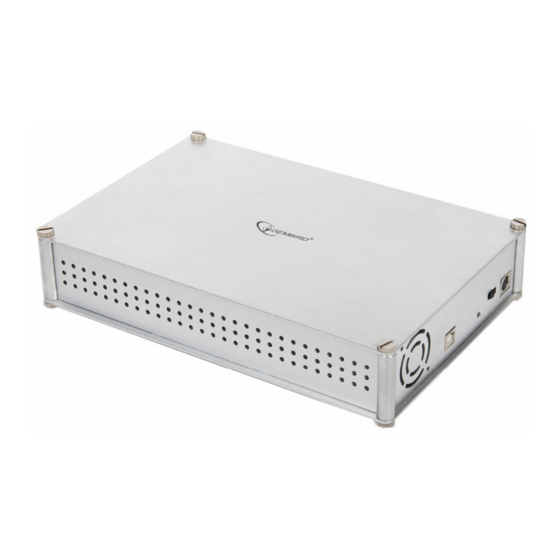

- Page 1 External USB v.2.0 enclosure for 5.25" devices EE5-U2-3 external USB 2.0 enclosure for 5.25" devices...
- Page 2 No part of this manual may be reproduced, transmitted or translated in any langua ge • in any form, by any means, without the prior written permission of Gembird Electronics Ltd. Gembird Electronics makes no warranties for damages resulting from corrupted or lost •...
- Page 3 External USB v.2.0 enclosure for 5.25" devices EE5-U2-3 User Manual Introduction Thank you for buying our external USB 2.0 enclosure for 5.25" devices! This manua l will he lp you install it properly. Features Fully compatible with USB 2.0 and USB 1.1 interfaces •...
- Page 4 External USB v.2.0 enclosure for 5.25" devices Specifications Up to 480Mbit/sec data transfer rate • USB 2.0/IDE compliant: integrated IDE transceiver, high • speed (480Mbit/sec) and full speed (12Mbit/sec) Self-powered from USB • Supports ATA PIO modes 0-4. ATA interface mode is •...
- Page 5 External USB v.2.0 enclosure for 5.25" devices Hardware installation Connect your hard disk to the USB HDD case and secure it • with the screws provided Connect the enclosure to any standard USB port on • PC/notebook with the USB cable provided.
- Page 6 External USB v.2.0 enclosure for 5.25" devices Driver installation under Windows 98SE After USB HDD enclosure is connected, Windows 98 should detect the new hardware and display "Found New Hardware…" wizard. When prompted, insert the CD provided and let the system search for the correct driver, if necessary specify \USBHDD-CL811 USBHDD_PL2506 in the search path.
- Page 7 External USB v.2.0 enclosure for 5.25" devices driver location and se lect \USBHDD-PL-2506 folder from the CD provided and then click "OK" Click "OK" again • Click "Next" twice, f ile copying will start • Click "Finish", now the USB Hard Disk Drive should appear •...
- Page 8 External USB v.2.0 enclosure for 5.25" devices Hard Disk Partitioning and Formatting If there is no USB hard disk drive appeared in My Computer or Windows Explorer after the above-mentioned procedures, you may need to perform disk Partitioning and/or Formatting. Windows 98/ME: Go to DOS prompt •...
- Page 9 After the conf irmation the message "Storage device can • now be safely removed from the system" will appear. Only now you can disconnect the EE5-U2-3 from the computer! Troubleshooting If all correct procedures have been followed and there is still no USB Hard Disk detected, you may need to access computer BIOS and enable USB Devices.
