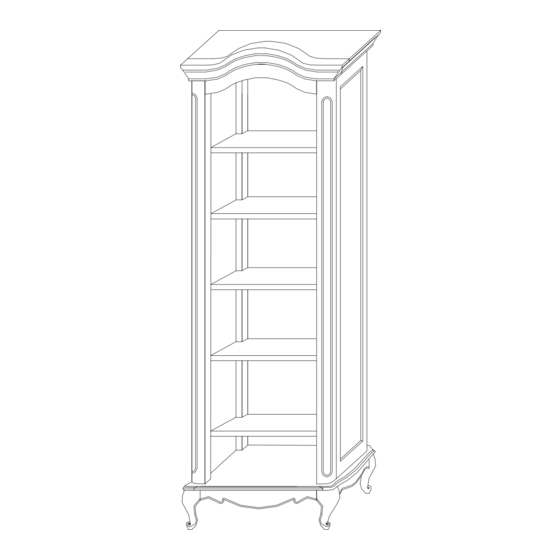

- Page 1 BF-24688 PROVENCE SINGLE BOOKCASE ASSEMBLY INSTRUCTIONS Made In China 1/12...
-
Page 2: Important Note
Thank you for purchasing this quality product.Be sure to check all packing material carefully for small parts,which may have came loose inside the carton during shipment. Count all parts and material hardware and compare with parts list to ensure all parts are present.If any parts are missing or damaged,phone,fax,or mail to our Customer Service Department.For efficient and speedy service please indicate the model number and code letter of part(s) needed... - Page 3 SCREWS-4PCS PLASTIC BELTS-2PCS HANGERS-4PCS SCREWS-4PCS HOOKS-4PCS SCREWS-26PCS MAT SLICES-8PCS SCREWS-6PCS SCREWS-8PCS ALLEN WRENCH-1PC SHELF SUPPORTS-16PCS FEET-4PCS CAM-TOOL-1PC NOTE:THE SURFACE WITH THE STICKER IS THE BACK SIDE. 3/12...
- Page 4 NOTE: UPON OPENING THOROUGHLY CLEAN ALL WOOD SURFACES TO REMOVE DUST AND DIRT THAT MAY HAVE SETTLED ONTO FINISH DURING SHIPMENT.IN ORDER TO PREVENT DAMAGE DURING ASSEMBLY,PLEASE ASSEMBLE THIS ITEM WITH AT LEAST TWO PEOPLE. NOTE: TURN THE CAM-BOLT SCREWS UNTIL THEY ARE TIGHT, THE SHOULDER SHOULD BE AGAINST THE SURFACE OF THE PART.
- Page 5 HOW TO USE THE ALLEN WRENCH...
- Page 6 ROTATE THE 4 CAM-BOLTS(K)INTO HOLES IN SIDE PANELS(D/E). PLACE CAM-BOLTS(K)INTO HOLES IN PANEL(I)AND ATTACH USING 4 CAM-LOCKS(L).
- Page 11 Warning The anti-tip hardware must be used as part of assembly!
- Page 12 wall DRILL 4 HOLES INTO WALL,PLEASE REFER TO THE REAR TOP PANEL'S HOLES DISTANCE AND HEIGHT. PUT 4 HANGERS(N)INTO HOLES IN THE WALL,AND ROTATE 4 SCREWS(M) INTO HANGERS(N). CONNECT THE TWO HOOKS WITH A PLASTIC BELT.
