MIX
USER MANUAL -
MIX
CONTROLLER 2.1
®
218 X 85 X 62 MM / 8.6 X 3.3 X 2.4 ''
•
MAX 200 W
•
0.480 KG / 1 LBS
•
•

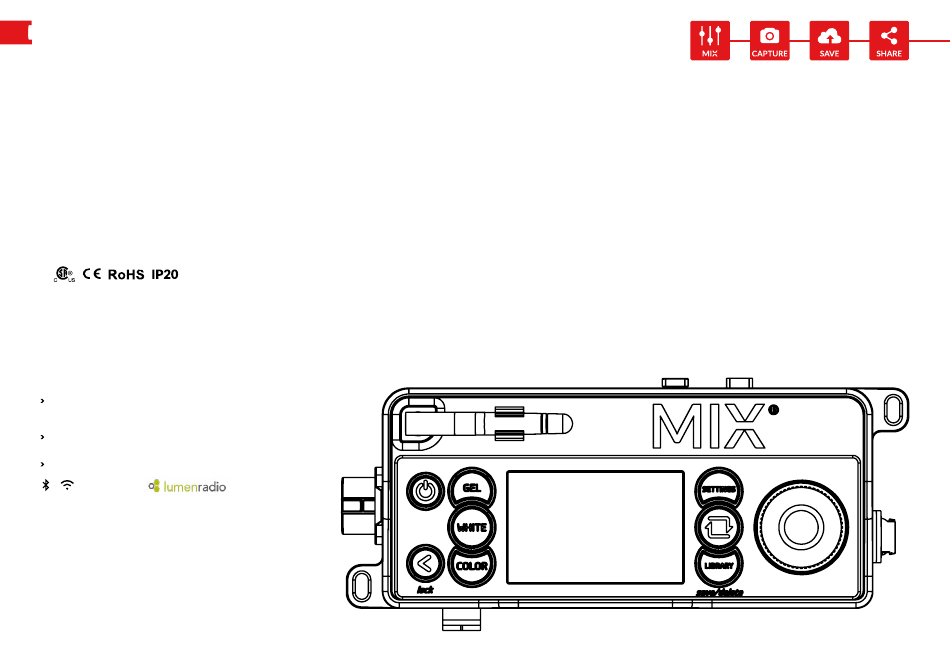

MIX Controller for DMG MIX Lights
MAXI MIX (Built in)
MINI MIX and SL1 (Add-on)
The MIX controller has the following communication
protocols inbuilt:
Proprietary "MIX Communication Protocol"
via Bluetooth with the myMIX app, up to 14 lights
connected at the same time.
DMX 512 (with RDM) via XLR-5 or wireless CRMX
by LumenRadio (Timo FX transceiver).
ArtNet via LAN (RJ45) and WiFi.
DMX 512
The MIX controller is RDM enabled.
Built-in micro-USB for upgrades.
MIX Controller is required to operate one MINI MIX or
one SL1 MIX head lamp.
Warning for battery operation:
The controller can accept v-mount or gold-mount batteries.
For the MINI MIX: input battery voltage from 12 to 30VDC.
For the SL1 MIX: input battery voltage is only 24 to 30VDC.
CONTROLLER 2.1
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CONTROLLER 2.1 and is the answer not in the manual?

Questions and answers

Related Manuals for MIX CONTROLLER 2.1

Summary of Contents for MIX CONTROLLER 2.1

  • Page 1 SL1 MIX head lamp. Warning for battery operation: The controller can accept v-mount or gold-mount batteries. For the MINI MIX: input battery voltage from 12 to 30VDC. For the SL1 MIX: input battery voltage is only 24 to 30VDC.

  • Page 2: Table Of Contents

    • INFORMATION  8 • ERROR CODES  8 MIX CONTROLLER LOCAL USER INTERFACE ................. 4 • ZONE SELECTION - MAXI MIX FIXTURES ONLY  9 THE 3 OPERATING MODES: WHITE / GEL / COLOR ............5 • DISPLAY SETTINGS  9 • WHITE MODE  5...

  • Page 3: Disclaimer

    • APE3540C:1996 • Not for residential use. off immediately. • EPA8270D:2007 • Not for household use. Mount strobes as high above head Europe : height as practicable. EN / IEC 62471 USER MANUAL - MIX CONTROLLER 2.1...

  • Page 4: Mix Controller Local User Interface

    Long press: No function. Long press: Link or Unlink the CRMX controlling the fixture. Delete a preset when in the library. module (Lumen Radio chip). USER MANUAL - MIX CONTROLLER 2.1...

  • Page 5: The 3 Operating Modes: White / Gel / Color

    Gel selection mode where you can select any of the gels Color selection mode. This mode is an HSI (Hue, CCT and Green/Magenta. available in the MIX (standard and saved). Saturation, Intensity) with the ability to select the white Saturation and hue are available on a limited range.

  • Page 6: The Save Function

    Blue screen Source match Xenon Headlamp Source match Candle Flame Source match Frosty moonlight Source match HP Sodium Source match LP Sodium Source match Tungsten Domestic Source match Mercury Vapor Source match Sodium Vapor USER MANUAL - MIX CONTROLLER 2.1...

  • Page 7: Dmx Profiles

    • DMX PROFILES BT: Bluetooth is ON, Remote Control is available via The DMG MIX DMX Profile resource is now available in an easily accessible and Bluetooth and the myMIX app. downloadable all-in-one reference guide including DMX profiles, color profiles, and Please note that Bluetooth and WI-FI cannot be turned Rosco Gel presets.

  • Page 8: Gel Sorting

    Digit 2: 1 = MINI ; 2 = SL1, 3 = MAXI. MIX is RDM enabled. It allows MIX light fixtures to send data/settings back to a remote control console (see table below). Some settings can be changed, others cannot.

  • Page 9: Zone Selection - Maxi Mix Fixtures Only

    USER MANUAL - CONTROLLER SETTINGS (CONTINUED) • ZONE SELECTION - MAXI MIX FIXTURES ONLY The MAXI has 2 independent zones. To select the zone you want to control click on <select zone> and choose the zone you want to control.

  • Page 10: Communication Protocols

    DMX 512 is a worldwide standard communication protocol for the film and enternainment industry. There are 2 ways to communicate DMX to the MIX controller: wired DMX (XLR 5 pin) or Wireless DMX (Lumen Radio Timo FX RDM). Wi-Fi hotspot has started and is ready.

  • Page 11: Dmx Mode Overview

    SETTING UP ARTNET AND DMX LINKING AND UNLINKING CRMX The MIX built-in CRMX transceiver can act in 2 ways, either as a CRMX receiver (RX), or as a CRMX transmitter (TX) to control other fixtures. To use the MIX in ArtNet or DMX, go to SETTINGS\ DMX MODE.

  • Page 12: Setting Up Dmx And Bluetooth

    When 2 MIX features are linked together via XLR5, you can control all of them from Set up the address (check DMX profiles table to enter correct addessing system). one of them from on single user interface. To do so, put the controlling MIX in DATA Enable DMX.

  • Page 13: Dmx Profiles

    MAXI White 8b White Mode (same as local) 2 zones added an option to revert the behavior to 2.0, in the event you need to use a mix of 2.0 MAXI Color 8b Color Mode (same as local) 2 zones and 2.1 lights on a set.

  • Page 14: The Mymix Mobile Application

    App Store IMPORTANT NOTICE : myMIX 2.1 is not compatible with the MIX controller firmware version 1.0 and 1.01. You will still be able to connect and update the firmware, but not control the light. Please make sure you update your controller if you have the version 2.1 of Connect your light: 1.
  • Page 15 Select the mode: WHITE / GEL / COLOR / EFFECTS / SOURCE MATCH Sensitive touchpad to change Dial in a value with the keyboard. In color mode, use the touchpad Scroll through presets. values. for HUE+SAT. USER MANUAL - MIX CONTROLLER 2.1...
  • Page 16 Touch here to acces a wide Find your gel, sort the list by organise your colors. favorite for a quick access. library of true Rosco color. name, color or number. The "Apply Gel" button will remove/ add the gel. USER MANUAL - MIX CONTROLLER 2.1...
  • Page 17 LEDs. USER MANUAL - MIX CONTROLLER 2.1...
  • Page 18 Click the "+" sign to add a light Check if every light of the group You can select 3 colors spaces on to the group. is connected. the xy mode: MIX (biggest space possible) REC709 and REC2020. USER MANUAL - MIX CONTROLLER 2.1...

  • Page 19: Updating The Mix Software V1.01 To V2.1

    • UPDATE YOUR MIX(S) VIA myMIX If your MIX controller is not up to date with the latest firmware version, myMIX will prompt you to update. Before updating, please make sure your phone is connected to a power source or has sufficient battery.
