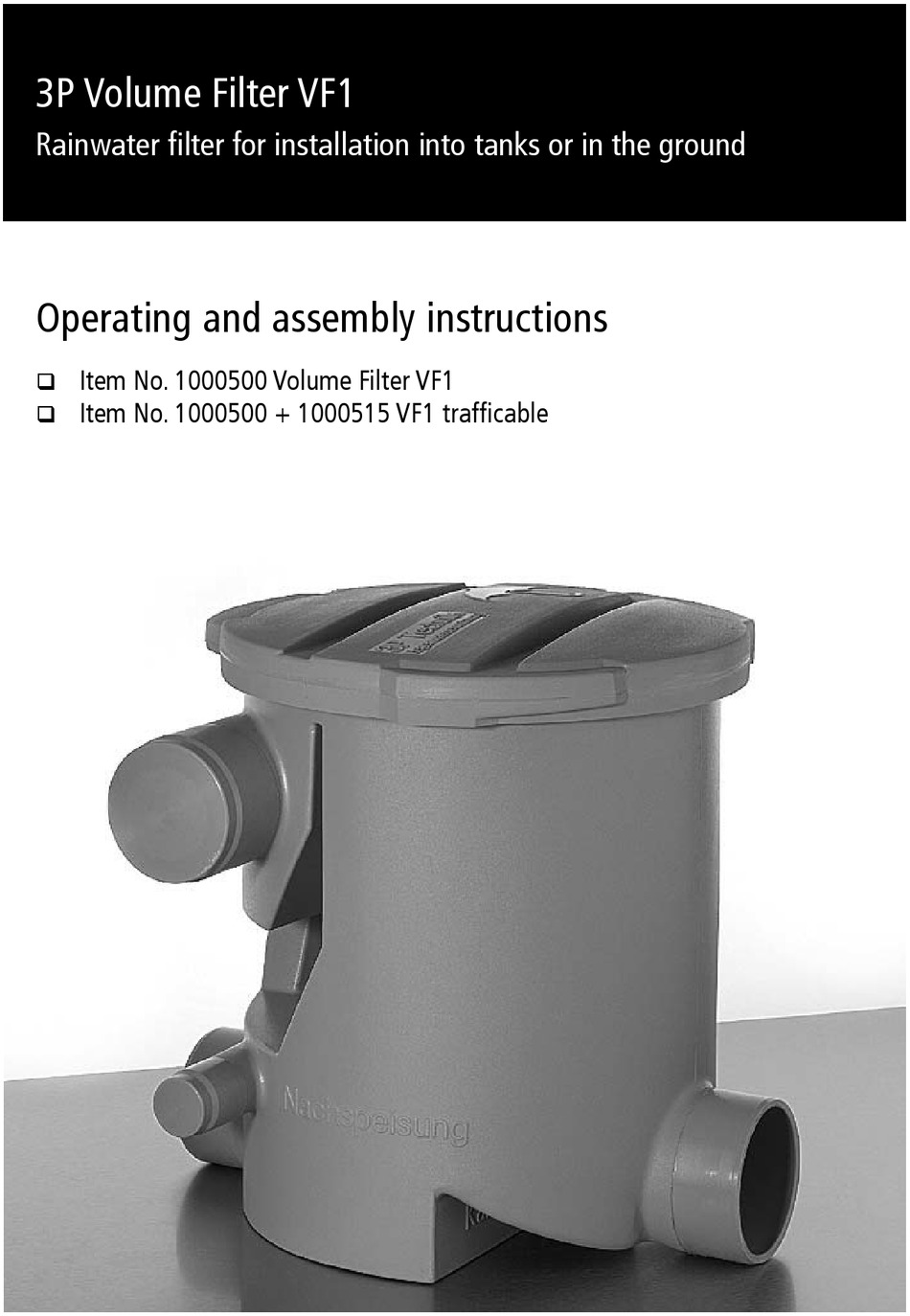

- Page 1 3P Volume Filter VF1 Rainwater filter for installation into tanks or in the ground Operating and assembly instructions Item No. 1000500 Volume Filter VF1 Item No. 1000500 + 1000515 VF1 trafficable...
- Page 2 Operating and assembly instructions Volume Filter VF1 Thank you for selecting a 3P filter. This filter (3P Volume Filter VF1) has been designed to pro- vide years of trouble free service. Please familiarise yourself with these instructions to ensure correct and reliable operation.
- Page 3 • Cleaned water is led via the outlet at DN 100 to the storage tank. • Dirty water goes via the outlet at DN 125 to waste. • Install the 3P Volume Filter VF1 horizontally on a level stable surface. For deeper installations the 3P Telescopic Extension can be used to reach ground level.
- Page 4 Installation of the 3P Volume Filter VF1 with the 3P Telescopic Extension: • Lift the lid off the 3P Volume Filter VF1 and lock the lower part of the 3P Telescopic Extension tube, using the bayonet socket fitting, onto the 3P Volume Filter VF1. It has to be fully engaged.
