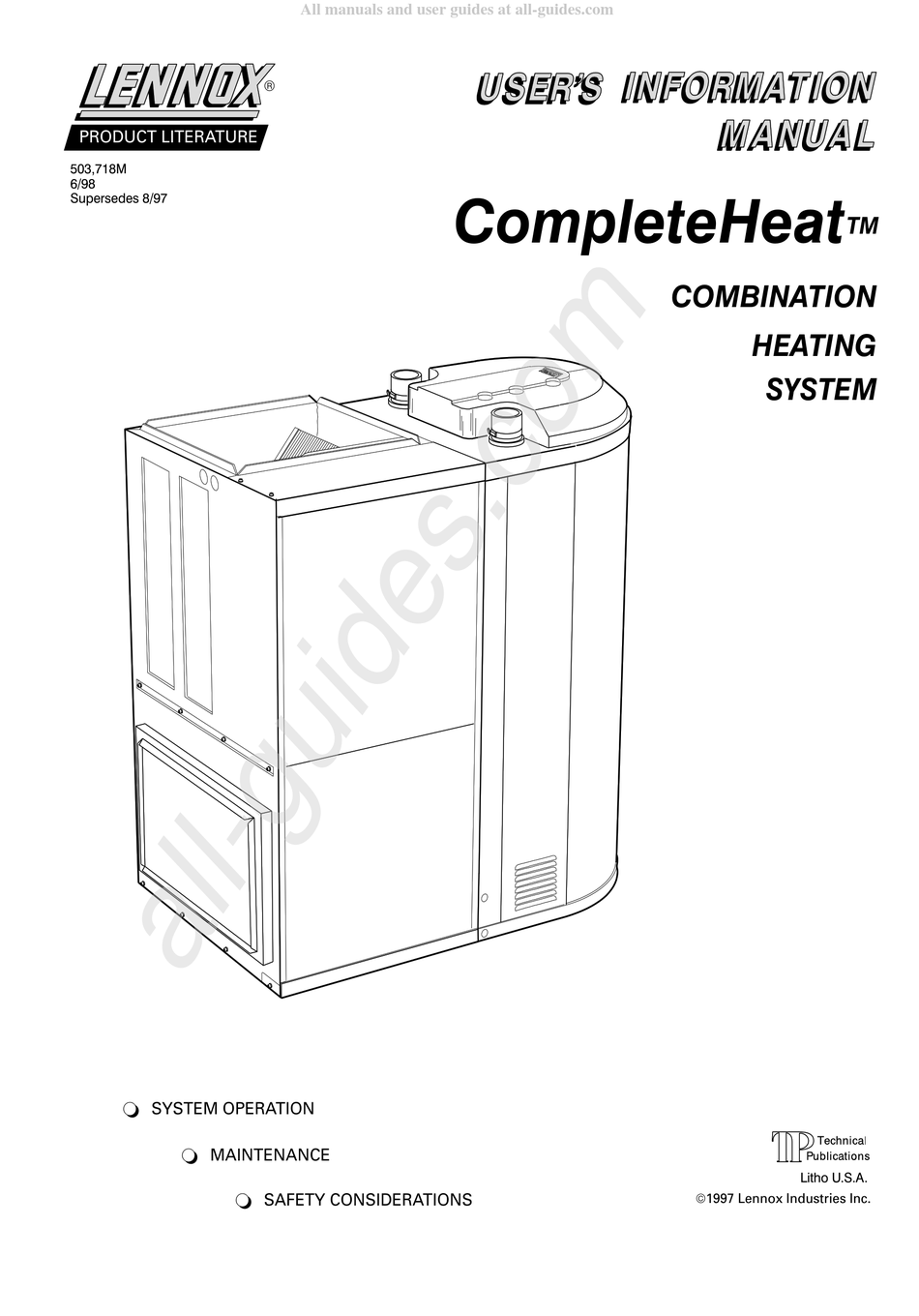

- Page 1 All manuals and user guides at all-guides.com PRODUCT LITERATURE 503,718M 6/98 CompleteHeat Supersedes 8/97 COMBINATION HEATING SYSTEM ` SYSTEM OPERATION ` MAINTENANCE Litho U.S.A. ` SAFETY CONSIDERATIONS 1997 Lennox Industries Inc.
- Page 2 (HM30). The two units work together to provide warm air like a furnace and hot potable water like a hot water heater. The CompleteHeat sys tem takes care of these needs while being up to 40% more efficient than stan dard furnaces and water heaters.
- Page 3 HOW THE CompleteHeat SYSTEM WORKS The CompleteHeat system consists of a heating module (HM30) that produces hot water and an air han dling module (AM30) that sends warmed air through the home's duct system. The two modules may be installed together (close coupled) or apart (remote).
-
Page 4: Safety Considerations
All manuals and user guides at all-guides.com SAFETY CONSIDERATIONS Consider the materials stored near to the CompleteHeat system. Make sure the area around both AM30 and HM30 units has adequate space according to the prescribed clearances. DO NOT store combustible materials such as newspapers, rags, mops, or flammable liquids such as gasoline, kerosene, paint thinner near this or any other heating appliance. - Page 5 TO SHUT OFF THE CompleteHeat SYSTEM 1-Set room thermostat and water temperature dial to lowest settings. 2-Turn off all electrical power to CompleteHeat system (AM30 and HM30). 3-Turn knob on main manual shut off valve 90_ clockwise to OFF. Do not force.
- Page 6 All manuals and user guides at all-guides.com HOW TO SET THE ROOM THERMOSTAT Your thermostat may vary from this example; however, the operation is similar. TEMPERATURE SETTING LEVERS SYSTEM SWITCH Simply set the indicator lever or dial on the Set the system switch for either heating, cooling or thermostat to the desired temperature for heating auto (if available).
-
Page 7: Adjusting Water Temperature
10_F (5.6_C). Some local building codes limit the temperature of potable water to 120_F (49_C). Ask your Lennox dealer for information on highest allowable water temperatures and the use of anti scald and point of use water mix ing valves. - Page 8 Your system may include an electronic air cleaner which rids your home of even the smallest particles of dirt, dust and pollen. Ask your Lennox dealer to instruct you on its maintenance. Page 7...
- Page 9 Never open the T&P valve unless it is connected to a discharge line. If water does not flow, valve may be obstructed or corroded. Call your Lennox dealer or qualified techni cian to inspect the valve.
- Page 10 Write down the unit model number before calling. To keep your heating and cooling system running in peak operating condition year after year, contact your independent Lennox dealer about a service and maintenance program. Have the Lennox dealer fill out this information for future reference.
