GPSMAP
3005C
®
& GPS 17
installation instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GPSMAP 3005C and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Garmin GPSMAP 3005C

Summary of Contents for Garmin GPSMAP 3005C

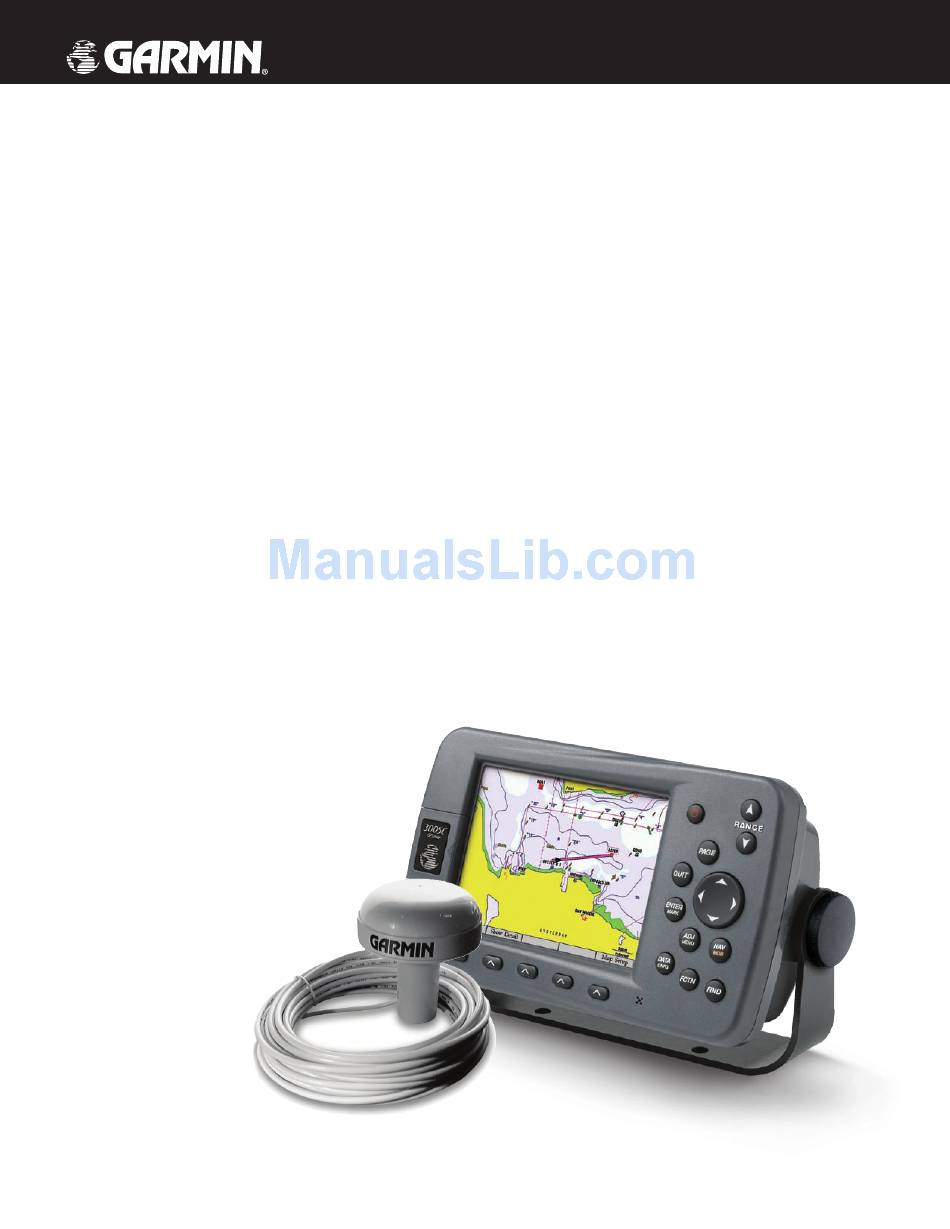

  • Page 1 GPSMAP 3005C ® & GPS 17 installation instructions...

  • Page 2: Safety Information

    Limited Warranty This Garmin product is warranted to be free from defects in materials or workmanship for one year from the date of purchase. Within this period, Garmin will at its sole option repair or replace any components that fail in normal use. Such repairs or replacement will be made at no charge to the customer for parts or labor, provided that the customer shall be responsible for any transportation cost.
  • Page 3 Always wear safety goggles, ear protection, and a dust mask when drilling, cutting, or sanding. When drilling or cutting, always check first to see what is on the opposite side of the surface. Mount the GPSMAP 3005C in a location that provides a clear, glare-free view of the display and easy operation of the controls.

  • Page 4: Installation Instructions

    NSTALLATION NSTRUCTIONS Surface Mounting the GPSMAP 3005C Tools • Drill and drill bit • Screwdriver • Pencil • Mounting hardware (not included) NOTE: Mounting hardware (fasteners) not included. Mounting holes are 5/16" (7.9 mm) in diameter. To install the bail mount and unit: 1.
  • Page 5 Do not to overtighten the studs. The studs have a factory applied thread locking patch. 7. Position the GPSMAP 3005C in the cut out of the mounting surface. 8. Place washers over the Mounting Studs, then thread on one Hex Nut per Mounting Stud.

  • Page 6: Installing The Gps

    3. Drill the holes using the appropriate drill bit(s). 4. Align the GPS 17 over the mounting holes and fasten using M4 screws. The mounting threads in the GPS 17 are 8.10 mm deep, do not use screws that thread into the GPS 17 deeper than 8 mm, or the case may be damaged.
  • Page 7 To attach the enclosed pole mount to the GPS 17: 1. Thread the cable though the pole mount. 2. Align the tab on the mount to the notch on the GPS 17. 3. Use the enclosed screws to secure the mount to the base.

  • Page 8: Wiring And Cables

    The GPSMAP 3005C comes with an 18-pin Power/Data cable. Optional Garmin Marine Network components use specialized Garmin Network Cables. For some installations, it may be necessary to drill 1.25" (31.7 mm) holes to route the connector end of the cables. Garmin rubber grommets are provided to cover the installation holes (see below).

  • Page 9: Power/Data Cable Wiring

    Power/Data Cable Wiring The following pages contain several wiring diagrams. The first diagram on the next page is a simple diagram showing the GPSMAP 3005C MFD using the 18-pin Power/Data wiring harness and the GPS 17. If two or more GPSMAP 3005C/3006C/3010C units are installed and networked, only one GPS 17 antenna needs to be installed.
  • Page 10 NMEA DEVICE WITH SONAR OUTPUT/ VHF RADIO WITH > > NMEA DEVICE/ AUTOPILOT (INPUT ONLY) > DB-9 SERIAL PC CONNECTOR* DB-9 PIN NUMBERS PIN 5: GROUND (SG) PIN 3:TRANSMIT (TxD) PIN 2: RECEIVE (RxD) End View GPSMAP 3005C & GPS 17...
  • Page 11 Optional Alarm Wiring The GPSMAP 3005C has an alarm circuit that can be used with a lamp, a horn, or both to alert you when the unit displays a message. The alarm circuit pulls low when the alarm sounds. The alarm does not have to be wired for the unit to function. The maximum current is 100 milliamps. A switch or relay can be used to select between visual and audible alerts.

  • Page 12: Garmin Marine Network

    MFDs over the network. Waterproof RJ-45 connections allow for simple installation and high-speed connectivity. For a simple installation with one MFD and one sensor, the two devices can be directly connected with a Garmin Marine Network Cable. If more than two MFDs are installed, a Garmin Marine Network Port Expander (GMS 10) is needed to expand the network.
  • Page 13 The following diagram shows the Garmin Marine Network with a GSD 22 Sounder Module connected. NOTE: Power connections for network components are not shown in the following illustration. GARMIN MARINE RADAR GARMIN GDL 30/30A MARINE WEATHER/AUDIO SATELLITE RECEIVER GPS 17 GPSMAP 3005C &...
  • Page 14 Final Wiring Connection After all the wiring is complete, the cables are attached on the backside of the GPSMAP 3005C MFD. If the MFD is not being networked, firmly affix the weather cap over the open connector to limit corrosion of the contacts. The connection ports are labeled on the back of the MFD.
  • Page 15 NSTALLATION NSTRUCTIONS Flush Mount Drilling Template Drill using a 11/64" (4.5 mm) drill bit Drill this 3/4" (19 mm) hole if the coax is going to be installed through the mounting panel. GPSMAP 3005C & GPS 17...
  • Page 16 © Copyright 2004-2006 Garmin Ltd. or its subsidiaries Garmin International, Inc. 1200 East 151 Street, Olathe, Kansas 66062, U.S.A. Garmin (Europe) Ltd. Unit 5, The Quadrangle, Abbey Park Industrial Estate, Romsey, SO51 9DL, U.K. Garmin Corporation No. 68, Jangshu 2 Road, Shijr, Taipei County, Taiwan www.garmin.com...
