- Page 1 Anti-Theft System Operation & Installation Guide Australia’s Most Advanced Anti-Theft System for Caravans and Trailers...
-
Page 2: Warnings And Safety Instructions
Ensure WiTi is installed as per the instructions, failure to do so will void warranty. Ensure the cable used to install WiTi Anti-Theft is of adequate thickness to provide the necessary current for the circuit. WiTi Anti-Theft must be installed away from environmental conditions that may cause damage to the units circuitry including water, salt spray and humidity. - Page 3 To activate WiTi Anti-Theft, press and hold button A on the remote control for 1/2 a second, the side and front markers and indicators will flash once followed by a 3 second safety pause and then a double flash to indicate the system is armed.
-
Page 4: Specifications

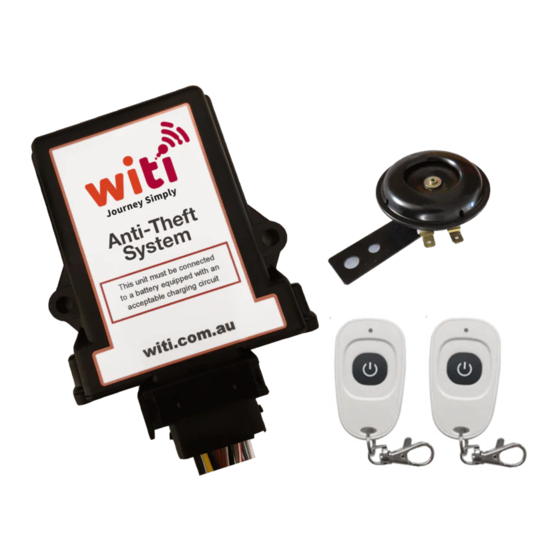

Specifications Trailer Unit Nominal system voltage Operating voltage 9V-12V Standby current <10mA Operating temperature -20C – 60C Max. trailer axles 3 Axles Braking circuit max draw Maximum rated current Weight 300g Contents • Trailer Unit • Alarm Horn • 2 Remote Controls •... -
Page 5: Installation Instructions
- either solar panels, anderson plug or DCDC charger. Circuit Protection and Fault Conditions In the event a short circuit or an overload is detected, WiTi Anti-Theft will disable all functions and the Alarm Status LED will flash. The Alarm Status LED will continue to flash until the short circuit is repaired and the unit restarted by pressing the button on the remote control. -
Page 6: Wiring Instructions
WiTi works in conjunction with other circuits for lighting and braking and is installed in parallel with other circuits. Locate the wiring harness on the caravan and connect into the corresponding wiring as per the guide below. WiTi wiring is colour coded as per Australian standards. - Page 7 Reverse Lights Black SrBrake Electric Brake Output Blue Earth RTN Earth Return White IGN-Out Ignition feed - Not used on WiTi Purple Anti-Theft System Horn + Alarm Horn Pos output. Connect Green to horn. Horn - Alarm Horn Negative. Connect Black to horn.
-
Page 9: Limited Warranty
During the warranty period, if you wish to return a defective product you may contact us via www.witi.com.au. You may then return the defective product to the address given accompanied by an acceptable proof of purchase (a bill of sale or receipted invoice). - Page 10 WiTi products. • Any and all WiTi unit damages caused by a consumer’s failure to modify the caravan or trailer properly for installation and use of one or more WiTi products not covered by this disclaimer is the sole responsibility of the consumer.
- Page 11 Other important notices To the extent permitted by law, this limited warranty constitutes the entire agreement on the subject matter and supersedes any prior agreement or understanding, written or oral. Where used herein, the company shall mean Leisure Technologies Pty Ltd and its subsidiaries and associates.
- Page 12 Scan to discover more witi.com.au...
